ADJUSTMENTS AND MAINTENANCE
5-54

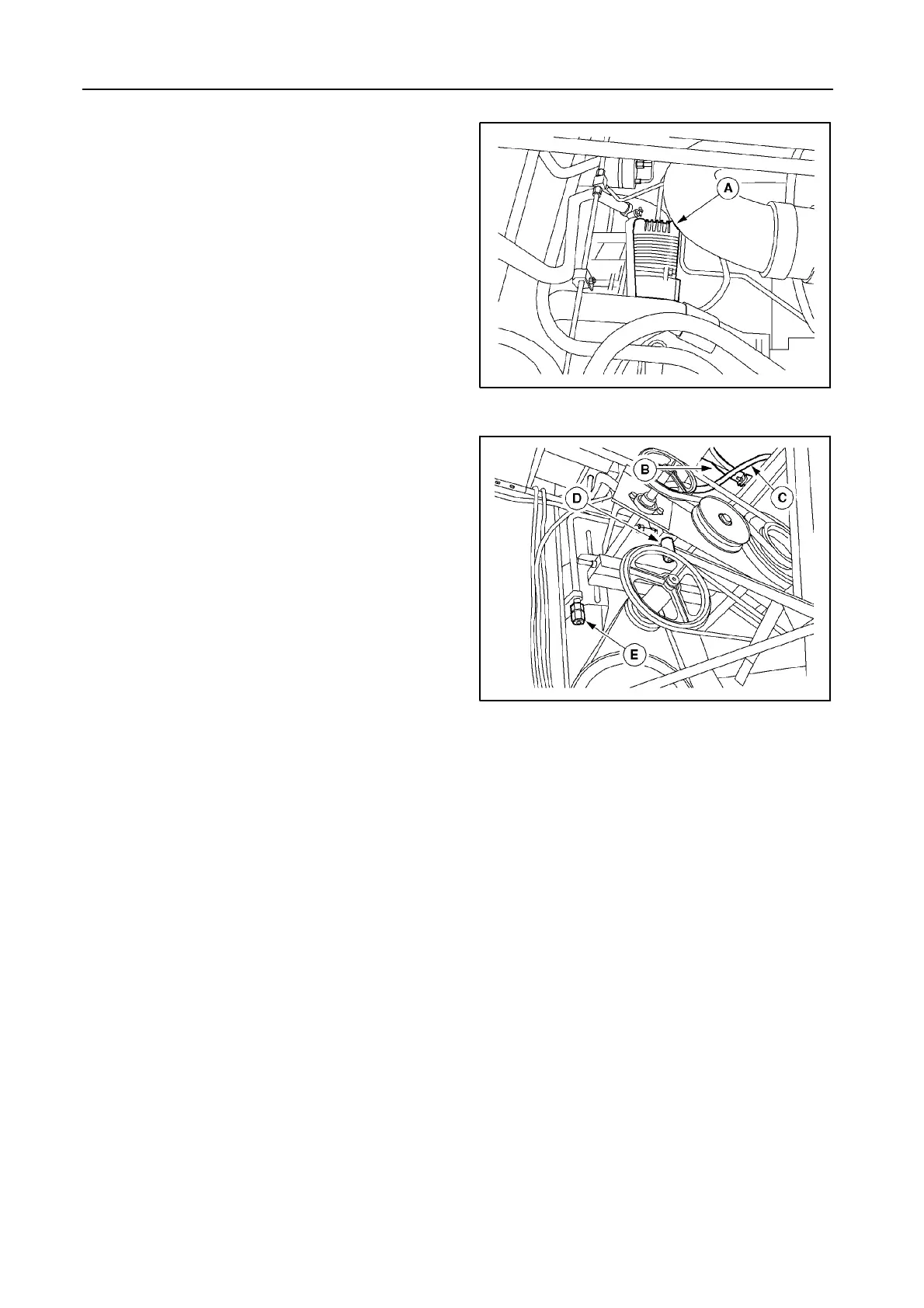

Every 50 operating hours, drain the condensed water
from the air receiver B through cock C, and from the
water separator D.
A union E is installed to attach pneumatic service
tools and for cleaning purposes.
The inner thread of the union is 1/2 GAZ CYL.
Air reservoir specification
(according to European Directive 87/404/EEC)
S T rade mark: Wabco
S T ype “60l”
S Maximum operating pressure: 10 bar
S Maximum operating temperature: +100°C
S Minimum operating temperature: --50°C
S Capacity: 60 litres
97
98
43174
43175
