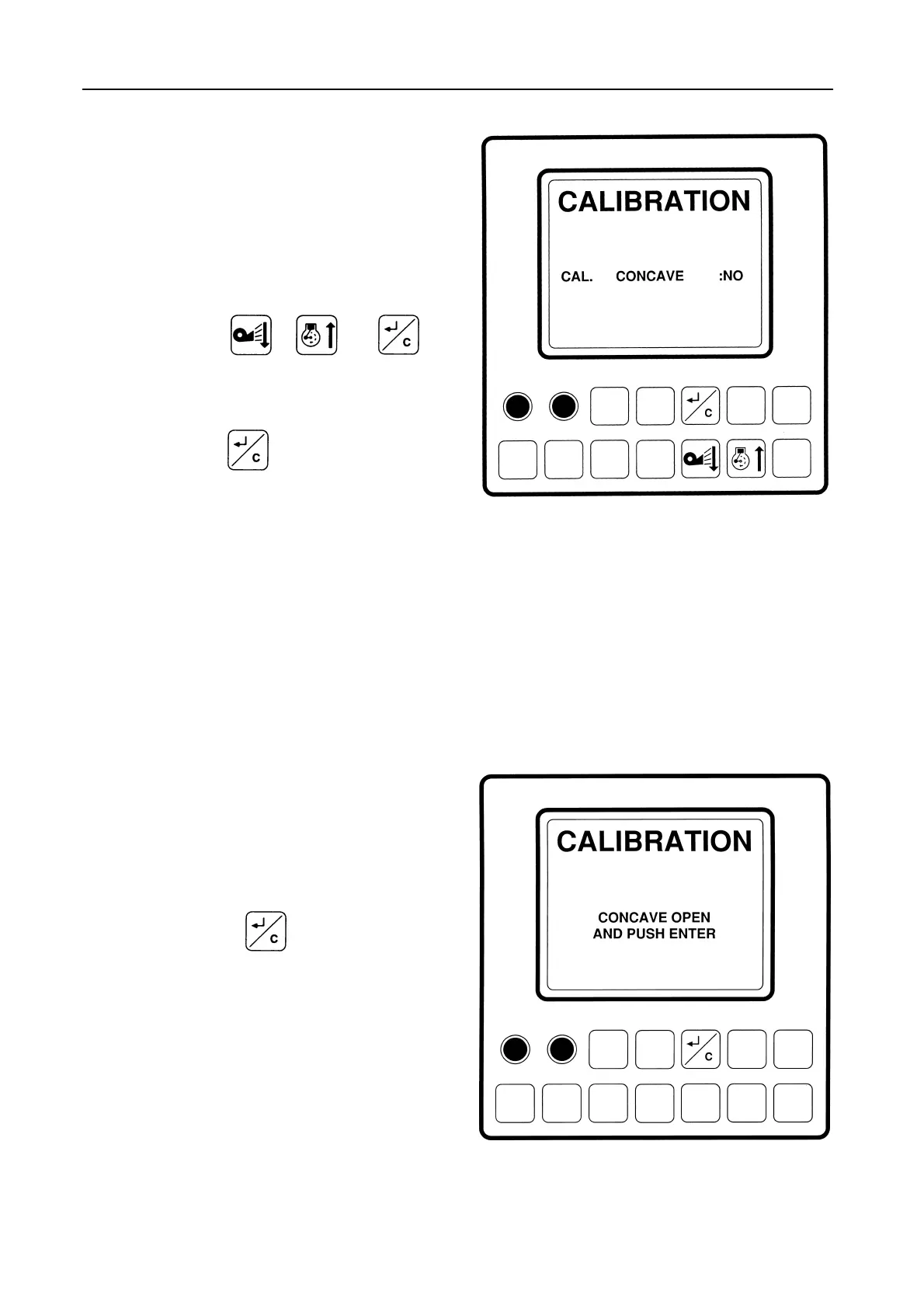

l) Figure 119 -- Appearing:
‘‘CAL CONCAVE :’’
S In case a threshing concave actuator cal-
ibration is required to give a correct in-
dication of the concave position, shown
on the bottom line of the monitor rpm
mode, select ‘‘CAL. CONCAVE: YES’’ by
pressing
or , and to
validate the choice.
S If not, confirm ‘‘CAL. CONCAVE: NO’’ by
pressing
.
The calibration procedure will automati-
cally continue with step o.
On units equipped with a flex header con-
trol printed circuit, continue with step r.
m) Figure 120 -- Appearing:
‘‘CONCAVE OPEN AND PUSH ENTER’’
Lower the c oncave completely with the con-
cave control switch on the dashboard. At its
end-of-stroke, release the concave control
switch. Press
to validate this posi-
tion.
