FIELD OPERATION
4-92

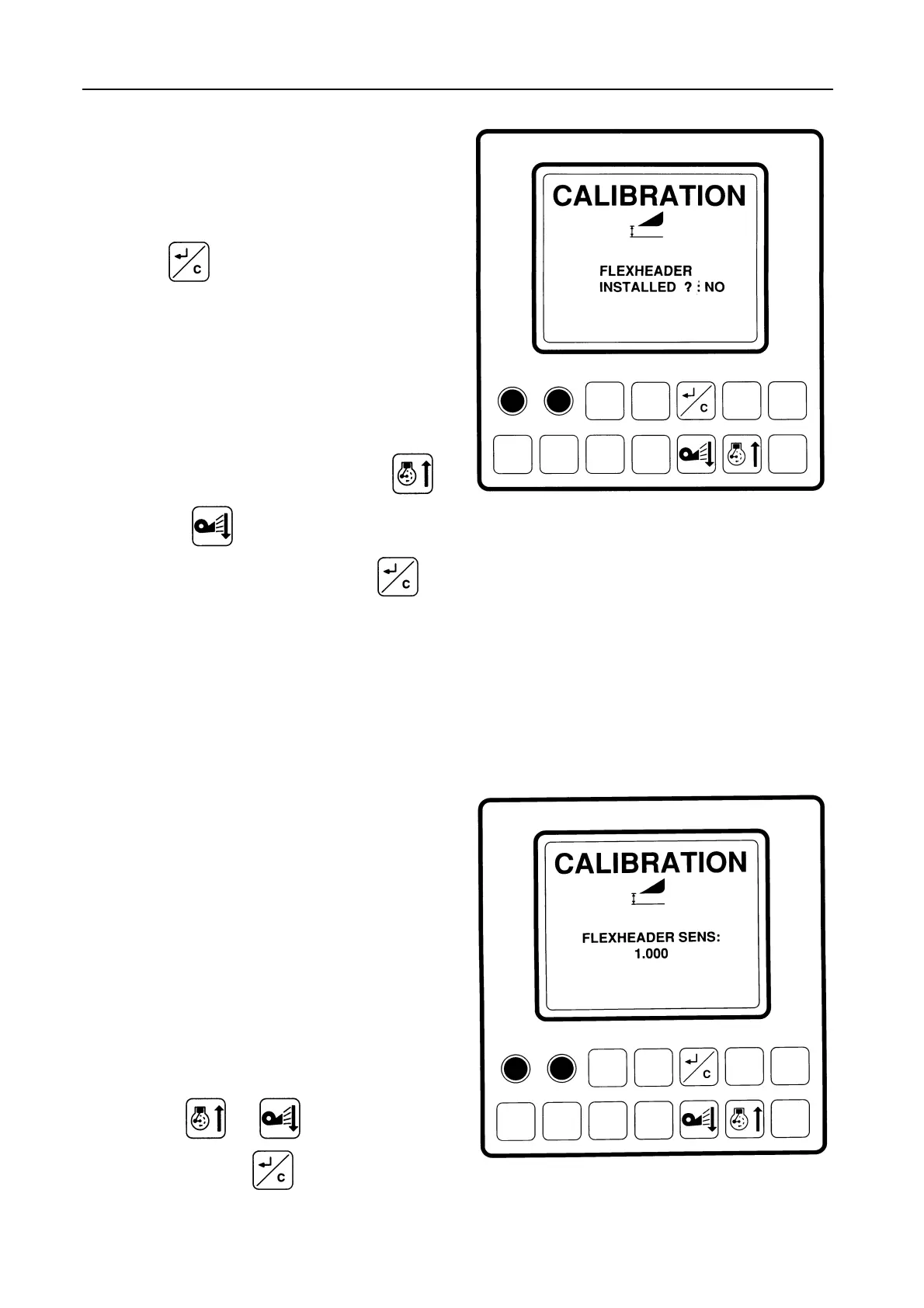

f) Figure 138 - Appearing:
‘‘FLEX HEADER INSTALLED: NO’’
S If no flex header is installed, press
to validate.
S The display will show ’’CAL/SET COM-
PLETE’’ and the monitor will return, after
5 seconds, to the rpm mode as shown in
Figure 84.
S If a flex header is installed, press
or to select FLEX HEADER
INSTALLED: YES’’, and press
to
validate.
NOTE:
Ensure that plug A (Fig. 3) is plugged
into socket C!
g) Figure 139 - Appearing:
‘‘FLEX HEADER SENS: X.XXX’’
X.XXX is a constant which can be selected
between 0.800 and 5.100 and allocates a
certain sensitivity to the reaction of the flex
header height control.
If too sensitive: lower the value.
If not sensitive enough: increase the value.
Press
or to select a specific
constant. Press
to validate.
48180
138
48182
139
