FIELD OPERATION
4-20
STRAW ELEVATOR INTERMEDIATE PLATE EX-
TENSION -- Figures 21 to 25
For all crops other than maize, install the straw eleva-
tor intermediate plate extension J to avoid straw
blockages.
When harvesting maize, the intermediate plate exten-
sion J should be removed.
Proceed as follows:
1. Loosen nuts B on both sides to slacken the straw
elevator chains.
2. Move the straw elevator bottom shaft to the rear.
3. Remove dust plates C at the front of the straw ele-
vator.
4. Remove cotter pin D and open chains E.
5. Attach a rope to the upper end of the chains to fa-
cilitate reassembly afterwards.
6. Open the bottom access door M (refer to the previ-
ous paragraph).
7. Loosen nuts F on both sides.
8. Remove bolts G on both sides
9. Remove the small intermediate plate H, if applica-
ble.

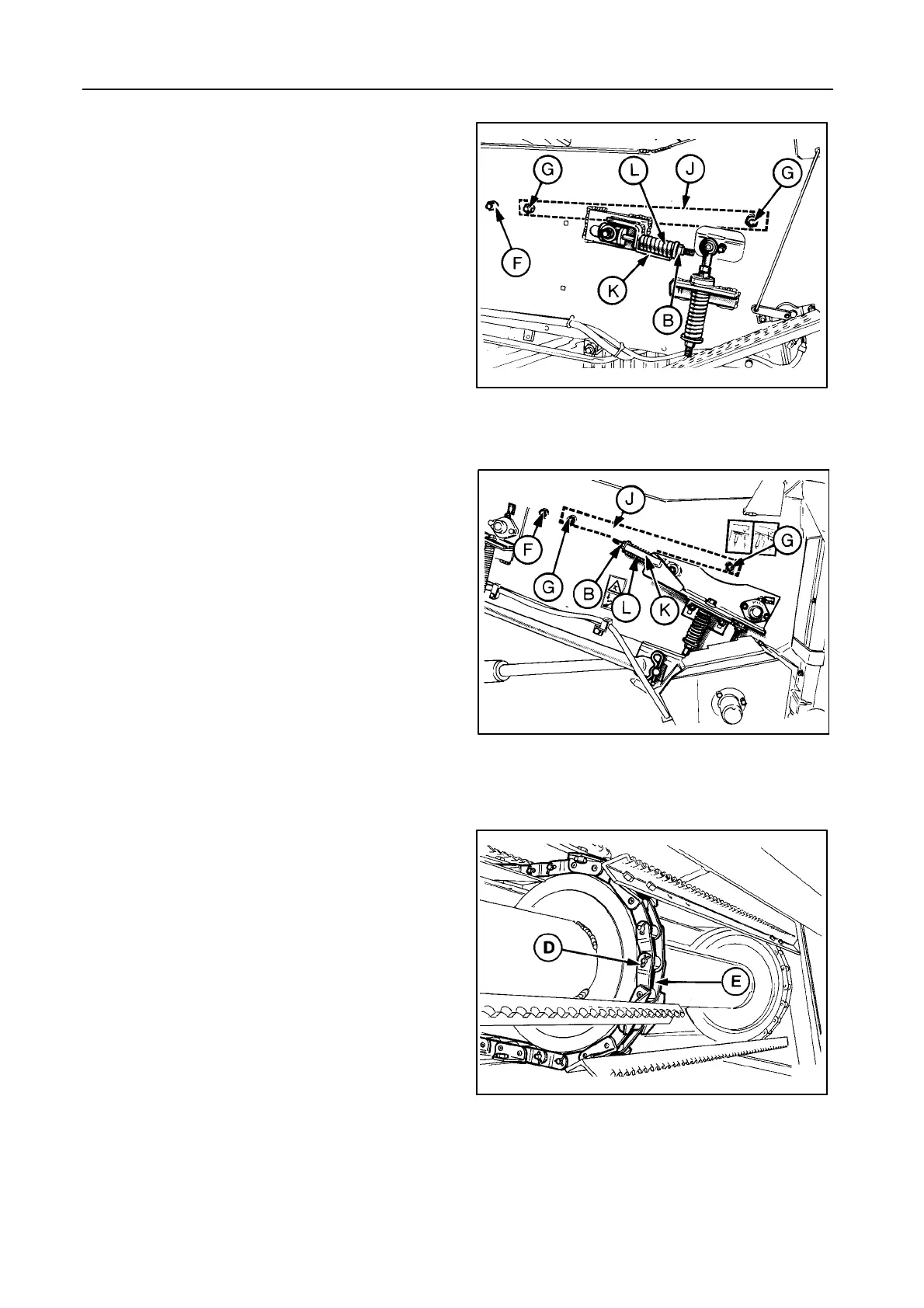

55001
21
22
52019
Fixed straw elevator
Lateral float straw elevator
23
57025
