ADJUSTMENTS AND MAINTENANCE
5-48

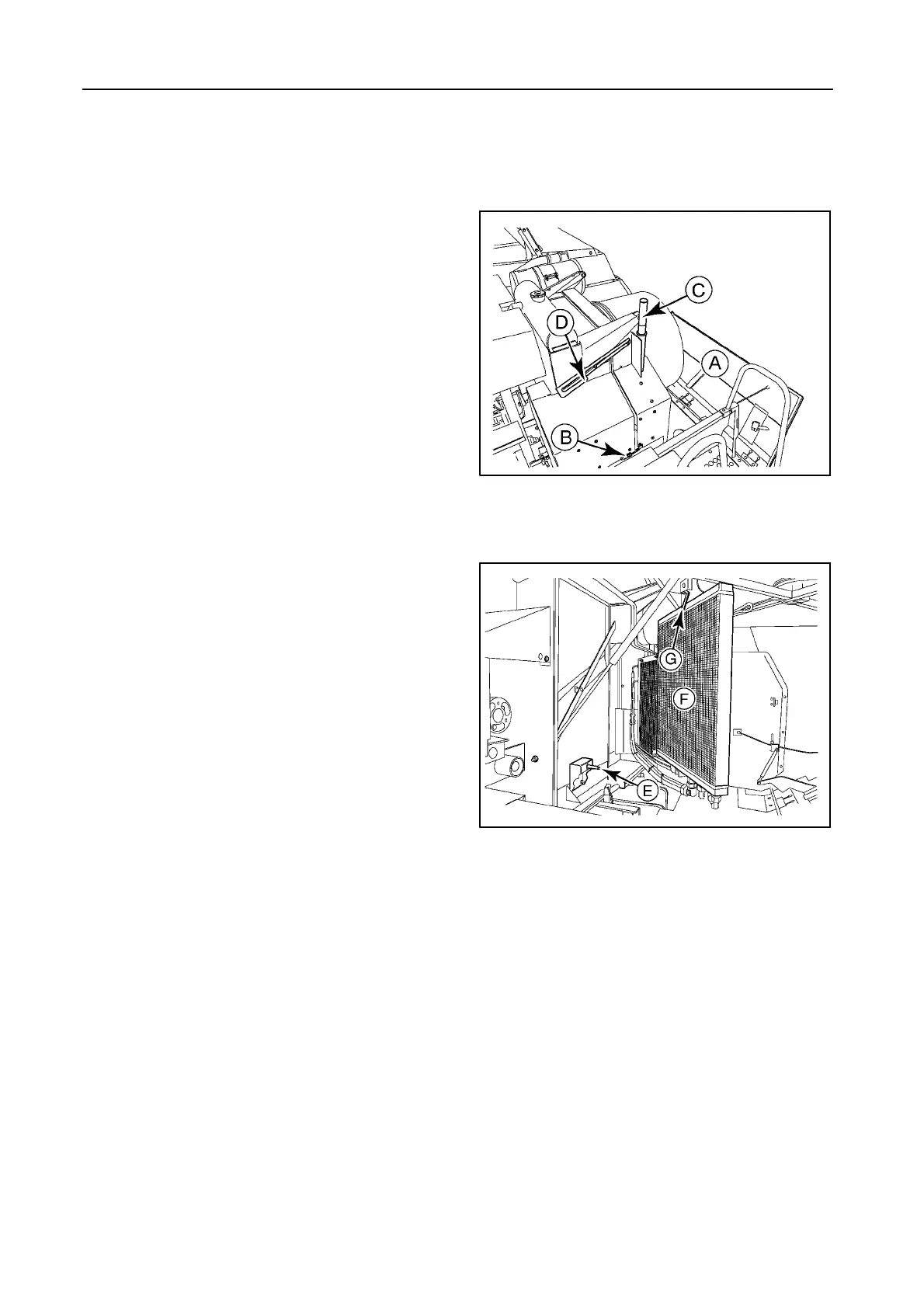

ROTARY DUST SCREEN AND COOLING SYSTEM -- Figures 86 and 87
All TX Series models (except for TX68) have a
hinged rotary dust screen door.
To gain access to clean the cooling system, proceed
as follows:
1. Open safety guard A and lock B.
2. Pull out handle C and open the rotary dust screen
door by pulling handle C until safety latch D is in
position.
3. Remove lynch pin E.
4. Pull out the oil coolers and condenser door F.
5. Keep the radiator door open with lock G.
Clean the cooling system regularly, depending on
combining conditions.
86
30836
87
30381
