ADJUSTMENTS AND MAINTENANCE
5-4

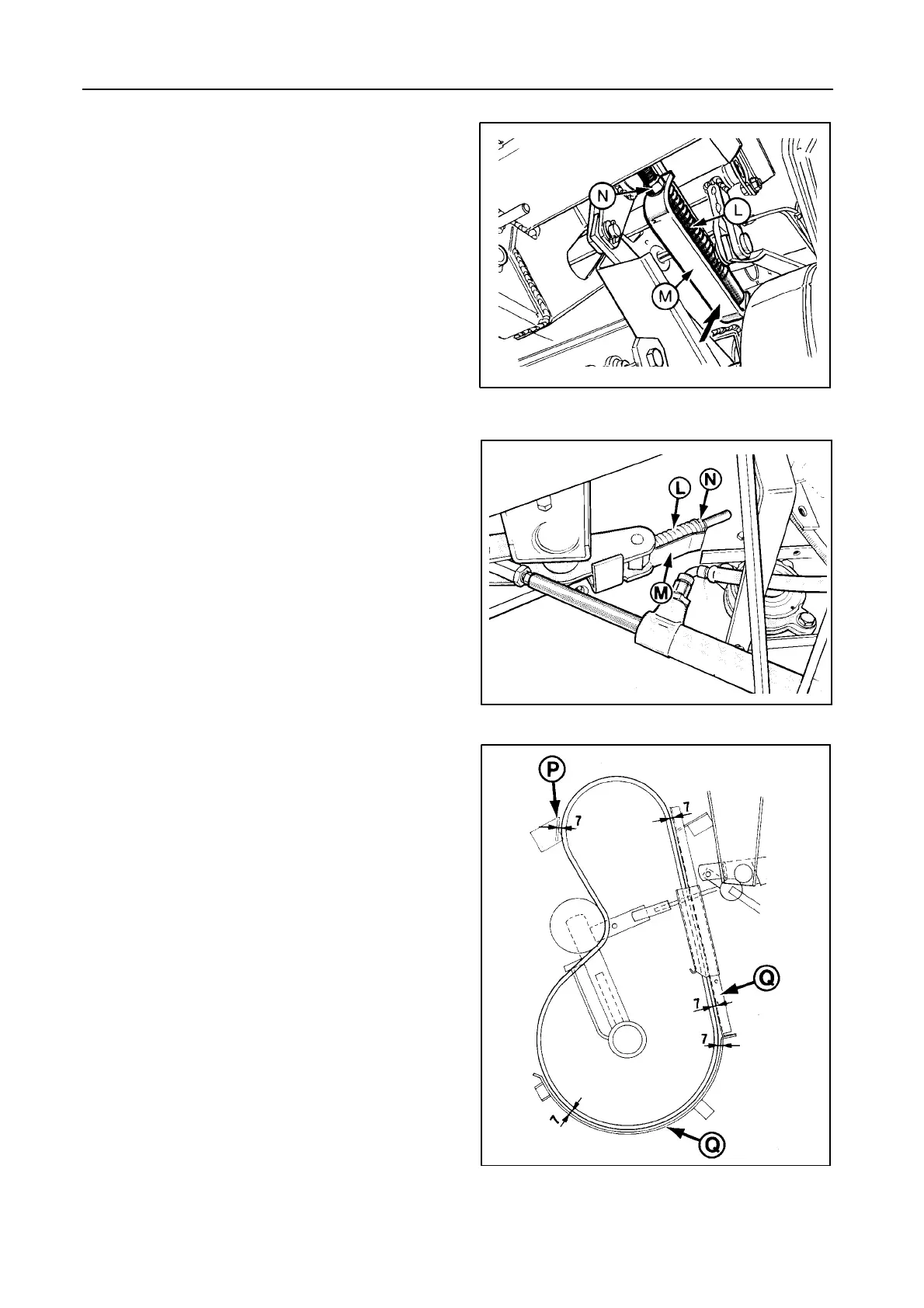

4 MAIN ENGAGING BELT
Proceed as described in paragraph 2.
Models TX62-63 -- Figure 8
(underneath steering platform)
Correct belt tension (in engaged position):
Spring length L corresponds with the notch in
plate M.
Adjust with nut N.
Models TX64
PLUS
-65
PLUS
-66-67-68-68
PLUS
--
Figure 9
Correct belt tension (in engaged position):
Spring length L = indicator plate length M.
Adjust with nut N.
All Models
Adjust the belt guides P and Q so that they are at
a maximum distance of 7 mm from the engaged
belt, throughout the belt guide circumference.
8
9
10
30216
30224
55037
TX62-63
TX64
PLUS
-65
PLUS
-66-67-68-68
PLUS
