SECTION 5
5-25

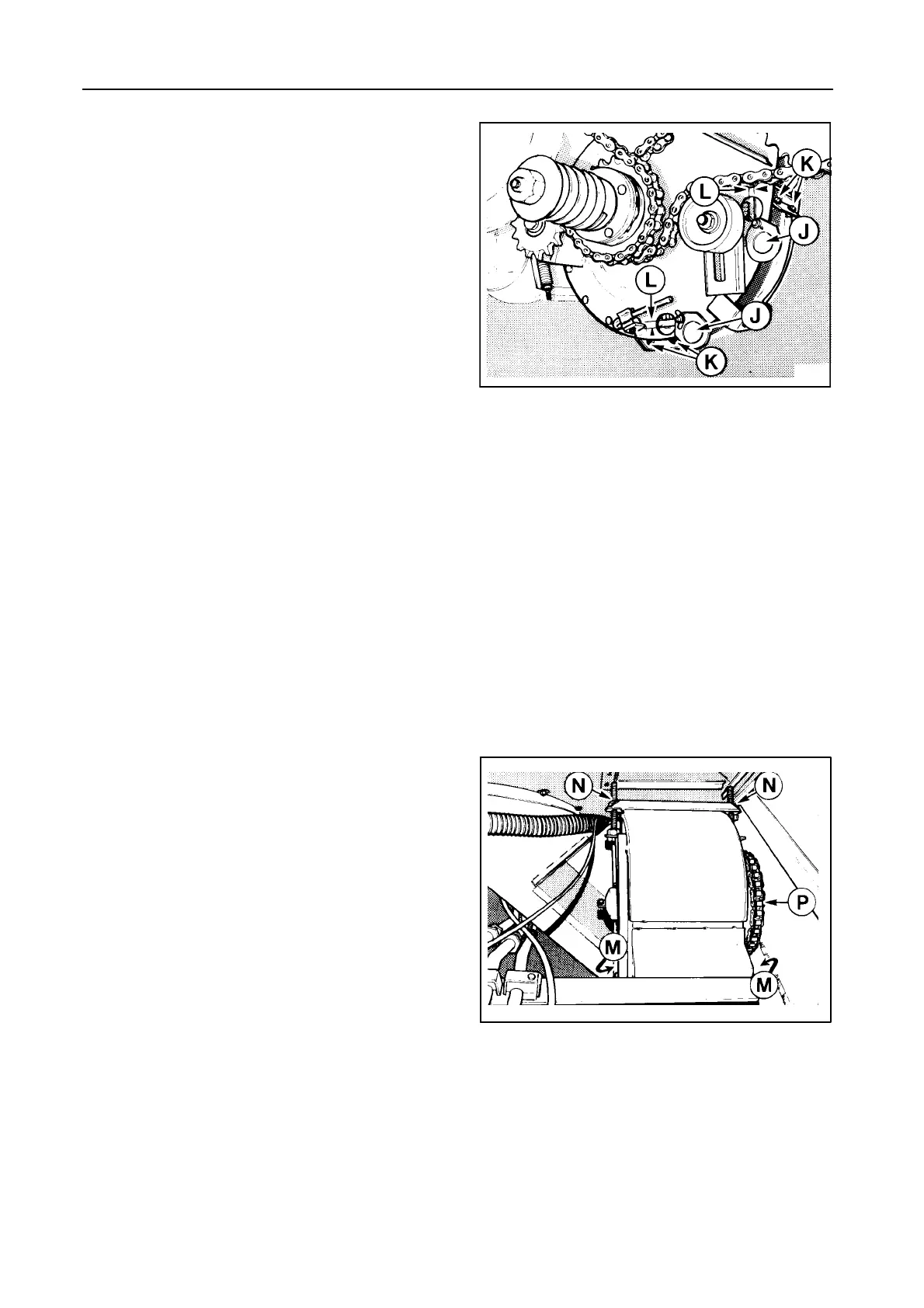

CONCAVE ADJUSTMENT -- Figure 51
Proceed as follows:
1. Open the covers above inspection holes J.
2. Loosen the four bolts K.
3. Move the roto-thresher concave to a minimum of
5 mm from the roto-thresher teeth (see L).
4. Check the adjustments through inspection holes
J. If grain crackage is experienced, increase dis-
tance L.
5. Retighten the four bolts K.
6. Close the covers over the inspection holes J.
7. Models TX66-67-68-68
PLUS
only:
Proceed in the same way on the opposite side.
1
21160
GRAIN ELEVATOR
CHAIN TENSION -- Figure 52
The tension of the grain elevator chain can be ad-
justed at the top of the elevator , accessible through
the grain tank, after drive chain P has been slack-
ened.
Loosen bolts M and adjust with nuts N on both sides
of the elevator head.
ATTENTION:
To prevent bearing damage, ensure nuts N are
tightened evenly.
The tension of the grain elevator chain is correct
when it is just possible to move a link laterally across
the lower sprocket by hand.
52
21093
