ADJUSTMENTS AND MAINTENANCE
5-32

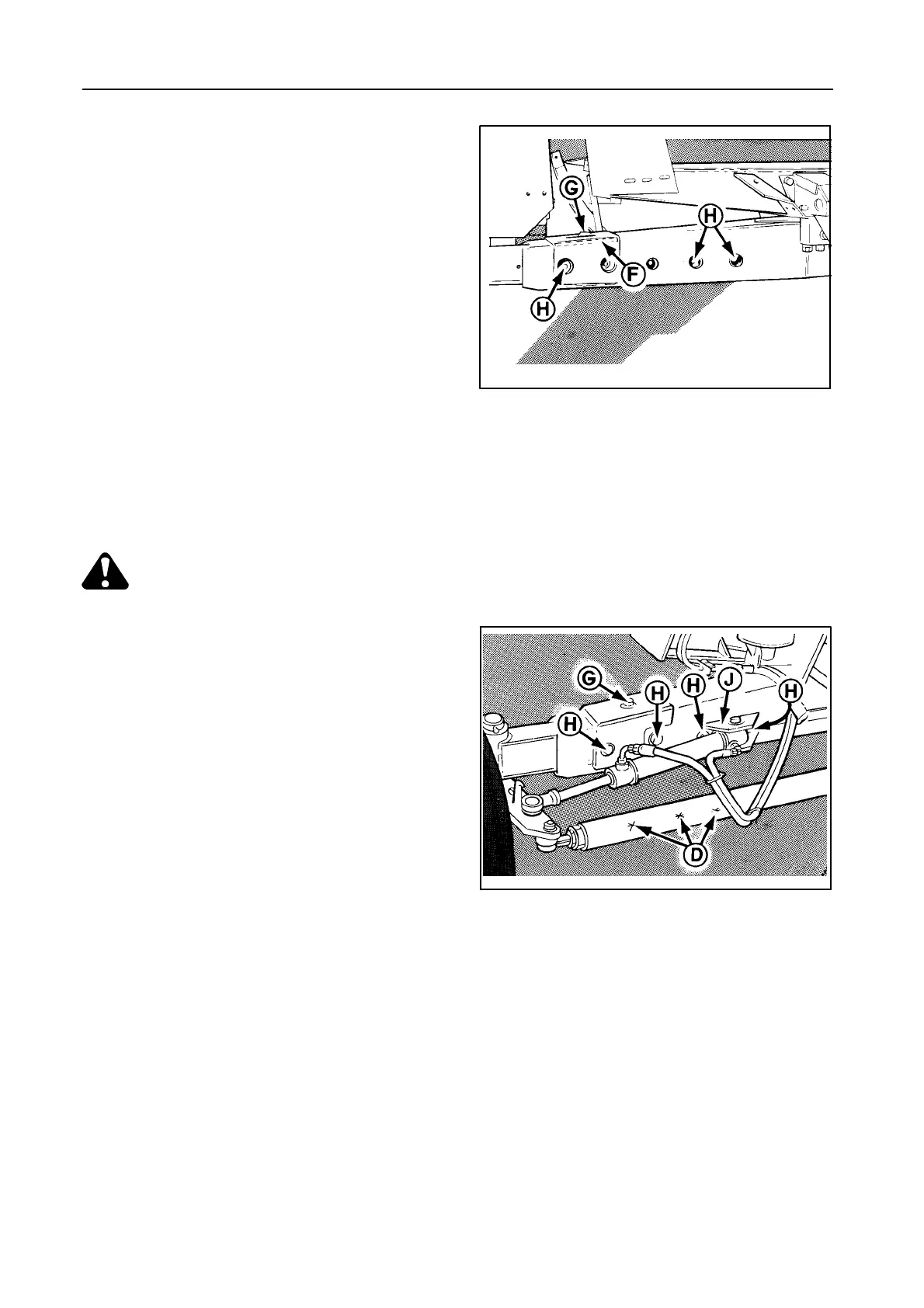

ADJUSTABLE STEERING AXLE [if fitted] --
Figures 64 and 65
The adjustable steering axle has three positions:
S Narrow position
NOTE:
This position is mandatory in Germany for
road transport
S Mid position
S Wide position
Adjustment
CAUTION:
Use suitable jack stands, securely posi-
tioned underneath the rear of the ma-
chine, before adjusting the steering axle.
Proceed as follows:
1. Apply the parking brake and support the steering
axle on the left-hand side.
2. Loosen bolt G and hammer it towards the centre
of the axle, so that key F is loose.
3. Remove the bolts from tie rod D and bolts H from
the steering axle.
4. Adjust the steering axle on the left-hand side to
the required width.
5. Reinstall bolts H.
6. Hammer bolt G to the outside, so that key F is
fixed, and tighten bolt G to 137 Nm.
7. Tighten bolts H to 294 Nm.
8. Support the steering axle on the right-hand side
and adjust, as outlined above.
51678
64
51679
65
