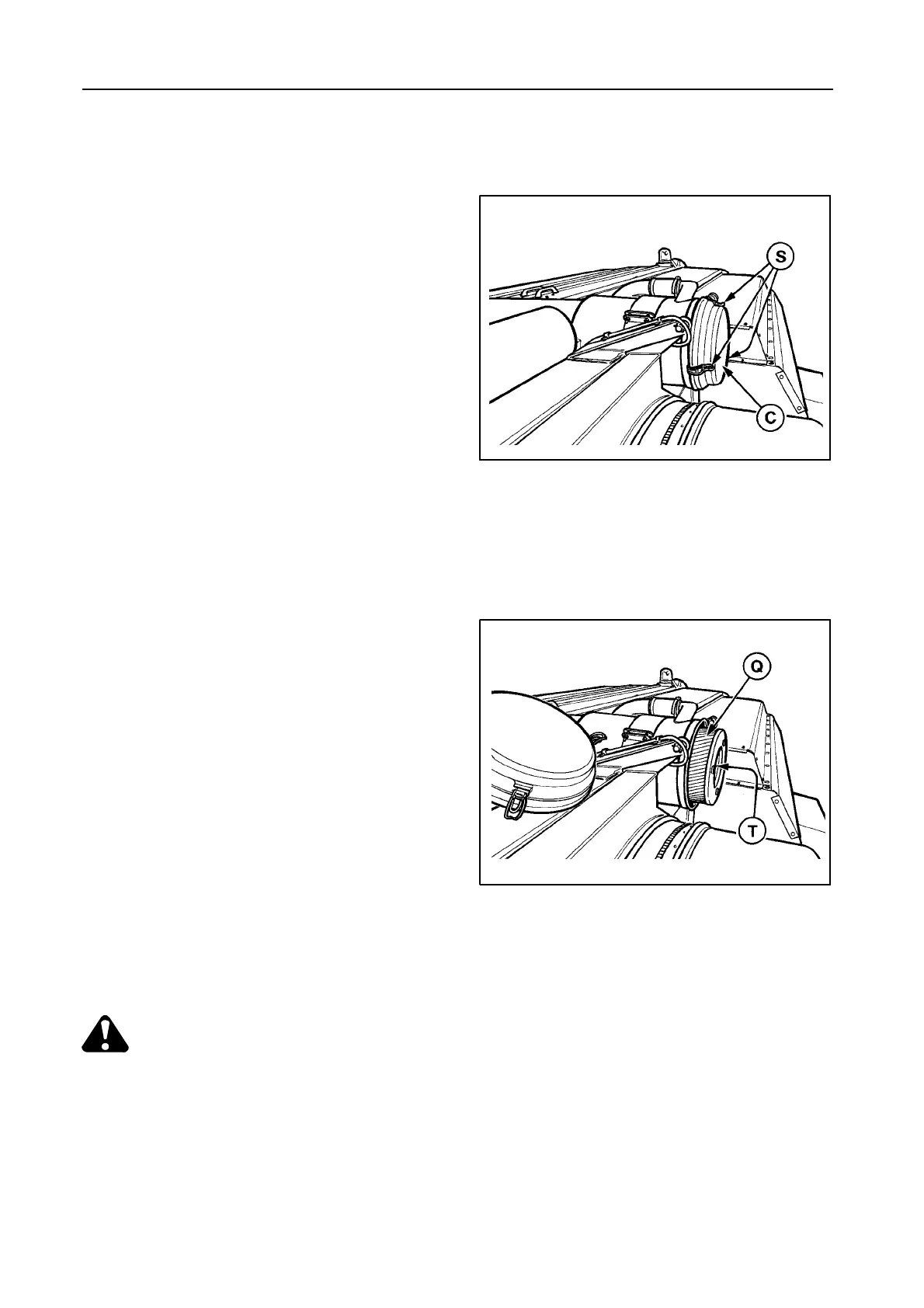

AIR INTAKE SYSTEM -- Figures 88 and 89
The filter element Q should only be cleaned when
the warning light in the combine cab illuminates and
the audible alarm sounds (500 mm vacuum).
To remove the air cleaner element Q, remove cover C
by loosening three clamps S and remove the air
cleaner element.
To clean the element, hold the top and tap it against
the palm of the other hand to remove the dust.
NEVER TAP IT ON A HARD SURFACE.
When tapping does not remove the dirt, direct com-
pressed air through the element, from the inside to-
wards the outside.
To prevent damage to the element when cleaning
with compressed air, take the following precautions:
S Maximum air pressure must be 5 bar.
S Move the nozzle up and down while rotating the
element.
S Keep the nozzle at least 25 mm from the pleated
paper.
W ARNING:
Wear a dust mask when cleaning the air
filter element.
88
55498
89
55499
