SECTION 2
2-19

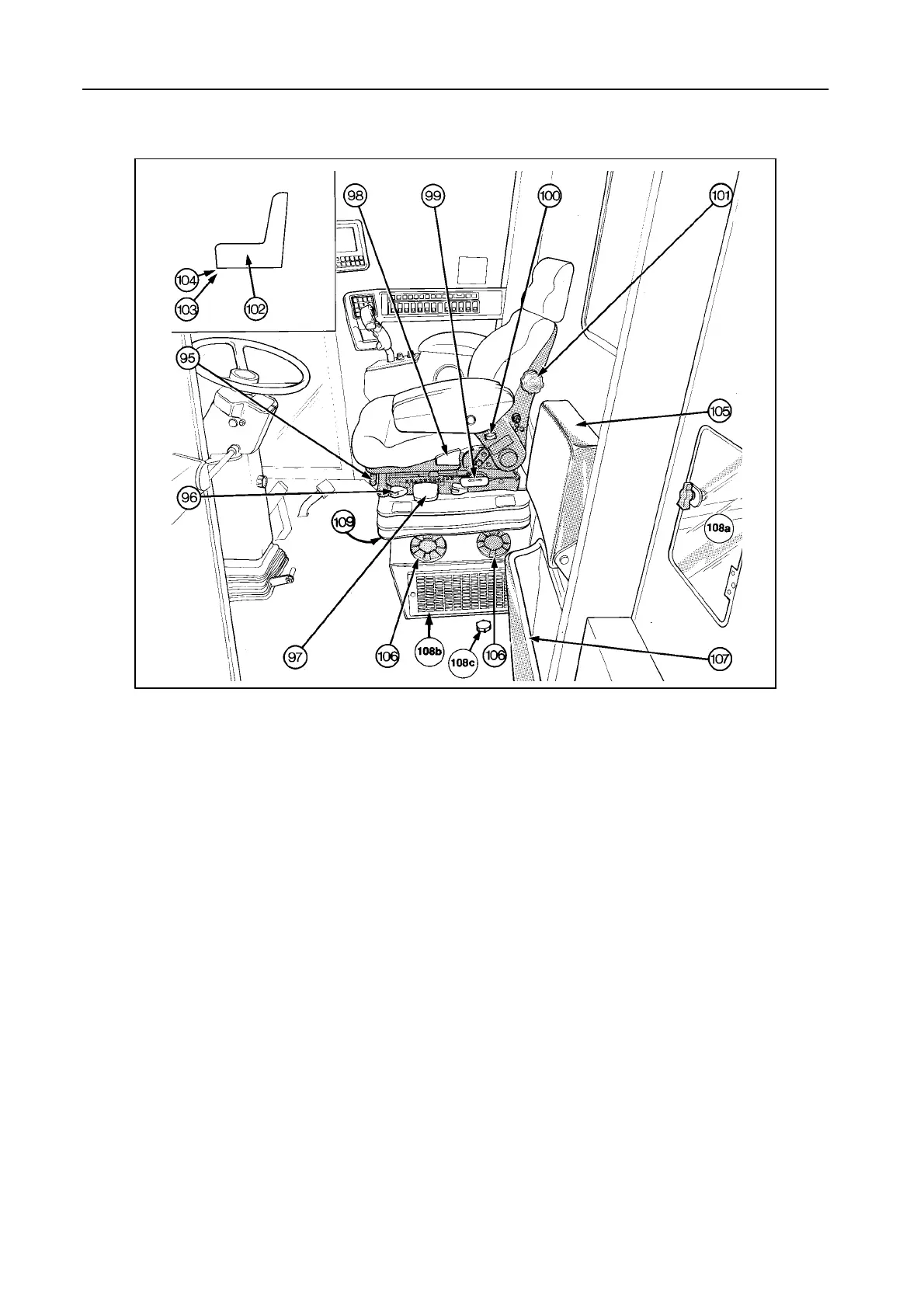

OPERATOR’S SEAT AND SURROUNDINGS -- Figure 17
43035
17
Air-suspended seat [if installed]
95 Seat bottom adjustment
96 Horizontal seat suspension adjustment
97 Weight and seat height adjustment
Lifting the lever briefly will adjust the seat auto-
matically to the operator’s weight.
Hold the lever up or down to adjust the seat
height.
98 Seat back rest inclination adjustment
99 Fore and aft seat adjustment
100 Arm rest adjustment
101 Lumbar adjustment
Left-hand side: horizontal adjustment
Right-hand side: vertical adjustment
Standard seat [if installed]
102 Seat back rest inclination adjustment
103 Weight adjustment
104 Height adjustment
To lift: Lift seat to first or second audible stop.
To lower: First lift seat to the highest possible po-
sition so the seat automatically returns to its low-
est position.
105 Buddy seat (not on models TX62-63)
106 Adjustable air vent
107 Storage space for operator’s manual
108a Grain tank inspection door
This door allows to take a grain sample in a safe
way.
108b Recirculation filter (paper element)
108c Reservoir for screen washer [if installed]
