SECTION 4
4-79

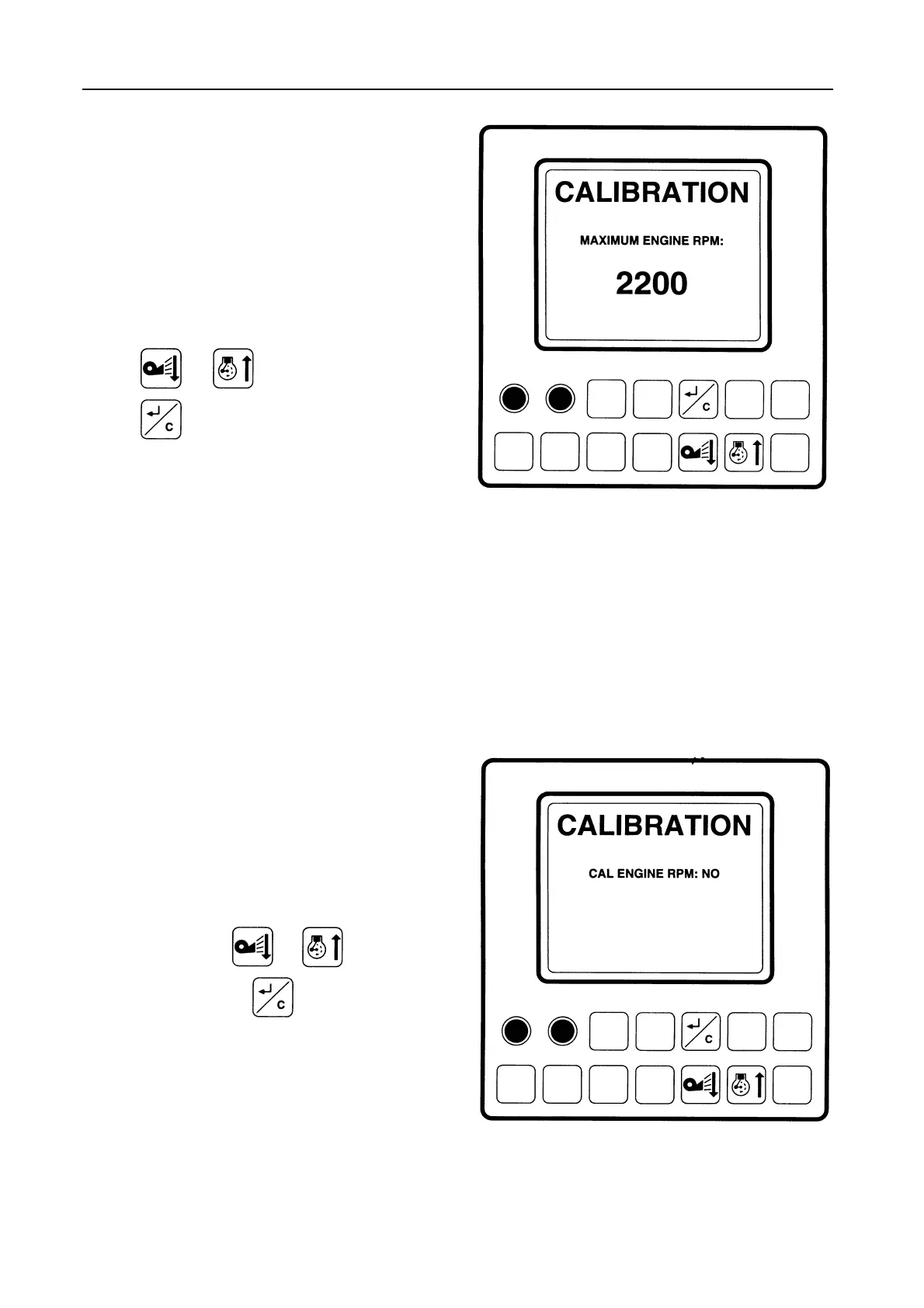

h) Figure 114 -- Appearing:
‘‘MAXIMUM ENGINE RPM XXXX’’
The four X’s should read: 2200
This is the engine high idle speed (under no
load), which will be used as a reference for
the engine speed bargraph and rpm monitor.
Select the correct number by pressing
or , and validate by pressing
.
i) Figure 115 -- Appearing:
‘‘CAL ENGINE RPM: NO’’
S In case an engine rpm calibration is re-
quired to give a correct indication on the
engine speed bargraph and rpm monitor,
select ‘‘CAL ENGINE RPM: YES’’ by
pressing
or , and validate
by pressing
.
48157
48156
114
115
