SECTION 5
5-31
FIXED STEERING AXLE
Adjustment
Adjust the toe-in as described in the previous para-
graph

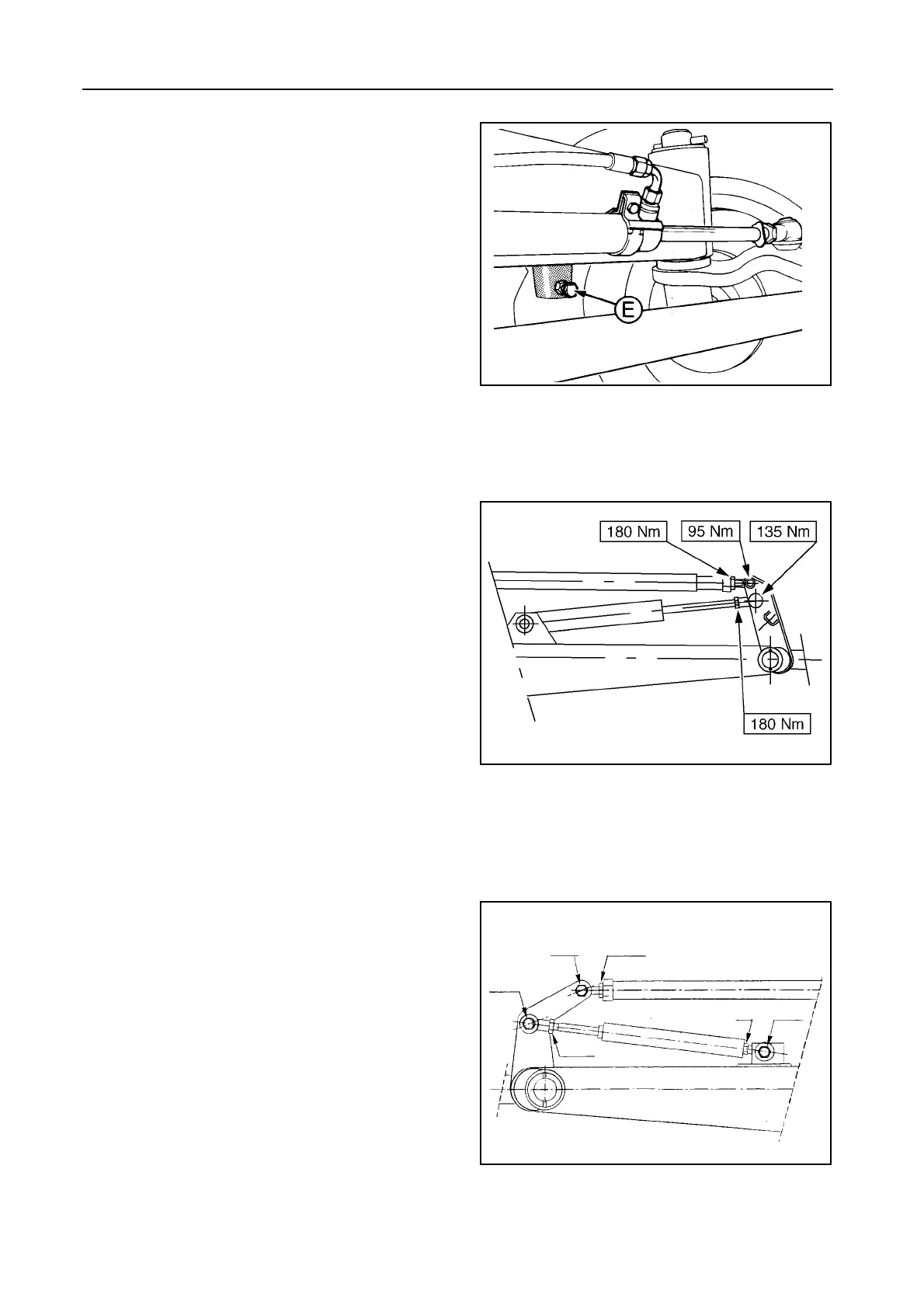

Steering wheel stops -- Figure 61
The steering wheel stops are factory-set and should
normally not require further adjustment.
If, for any reason, the stops require adjustment, pro-
ceed as follows:
1. Turn bolt E completely in.
2. Rotate the steering wheel to the extreme left or
right-hand position so that the steering cylinder is
at the end of its stroke.
3. Retract the steering cylinder 2 mm.
4. Turn bolt E against the support and tighten the
lock nut.
5. Proceed in the same way on the opposite side.
Steering ball joints -- Figures 62 and 63
Check the steering ball joints of the steering axle
every 50 hours of operation for correct nut torque or
possible play.
If, for any reason, the steering ball joints were disas-
sembled, the nut torque should be as mentioned in
Figure 62 for models TX62-63-64
PLUS
-65
PLUS
,orin
Figure 63 for models TX67-68-68
PLUS
.
42900
61
43183
62
52534
63
135 Nm
115 Nm
135 Nm 115 Nm
135 Nm
TX62-63-64
PLUS
-65
PLUS
TX67-68-68
PLUS
115 Nm
