SECTION 5
5-39
REAR-WHEEL DRIVEN STEERING AXLE
[if fitted]

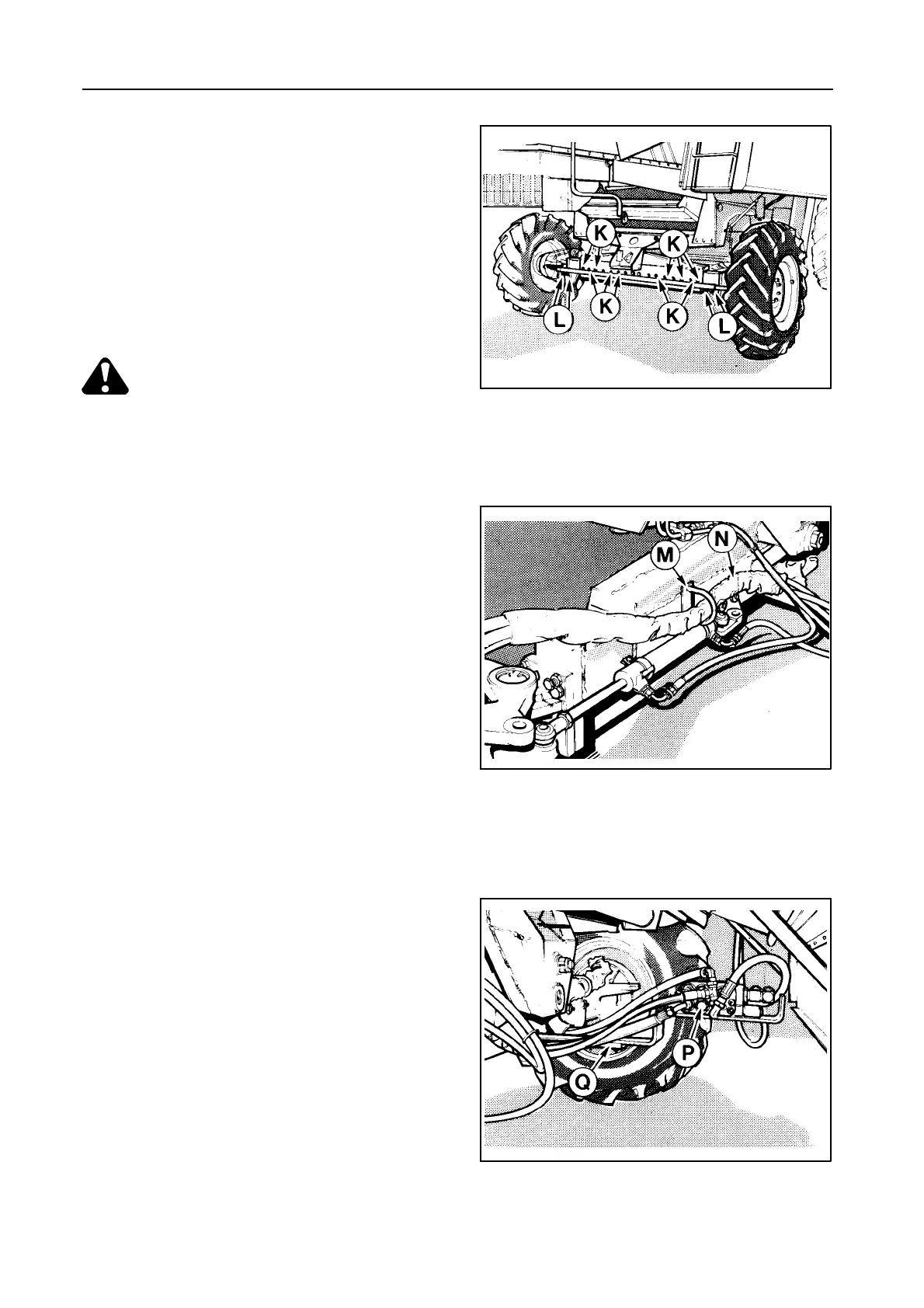

This steering axle has four positions -- Figure 77
Adjustment -- Figures 74 to 77
CAUTION:
Use suitable jack stands, securely posi-
tioned underneath the rear of the ma-
chine, before adjusting the steering axle.
Proceed as follows:
1. Apply the parking brake and support the steering
axle on the left-hand side.
2. Remove the five left-hand bolts K and the four
bolts L from the track rod.
3. Adjust the steering axle on the left-hand side to
the required width.
4. Place the hydraulic hoses support M in the re-
quired position, as shown.
5. Reinstall bolts K and tighten them to 360 Nm.
6. Support the steering axle on the right-hand side
and adjust, as outlined above.
7. Install the steering cylinder support N in the cor-
rect position.
8. Reinstall the bolts in track rod L.
9. Adjust the toe-in, as described previously.
NOTE:
Check if the routing of the hydraulic hoses is
satisfactory and reposition valve P on its sup-
port Q, as necessary.
21149
74
21148
75
21147
76
