FIELD OPERATION
4-42

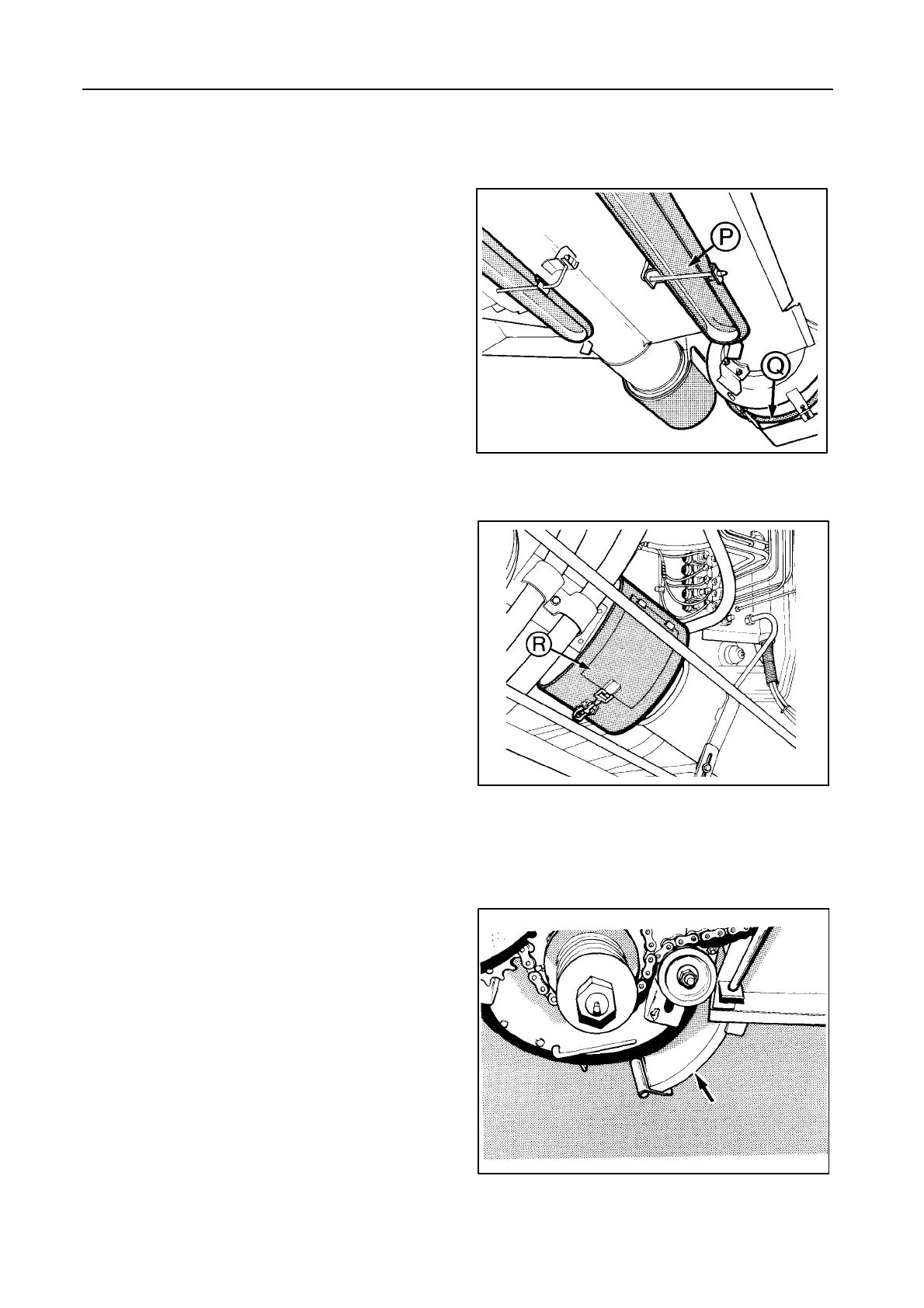

RETURNS SYSTEM -- Figures 65 to 67
Models TX62-63-64
PLUS
-65
PLUS
: Single returns auger
Models TX66-67-68-68
PLUS
: Double returns auger
The returns cross auger can be cleaned by removing
cover P.
Should the roto-threshers become blocked, they can
be unblocked and cleaned through opening Q.
A blocked thrower can be unblocked throughcover R .
For maximum efficiency it is important to keep the
amount of material in the returns auger to the abso-
lute minimum.
Excessive returns will:
S Increase the risk of grain damage.
S Produce grain loss through sieve overload.
S Increase the risk of blocking the returns compo-
nents.
42968
65
42960
66
21116
67
