OPERATION
2-36
DETACHING THE HEADER FROM THE COMBINE

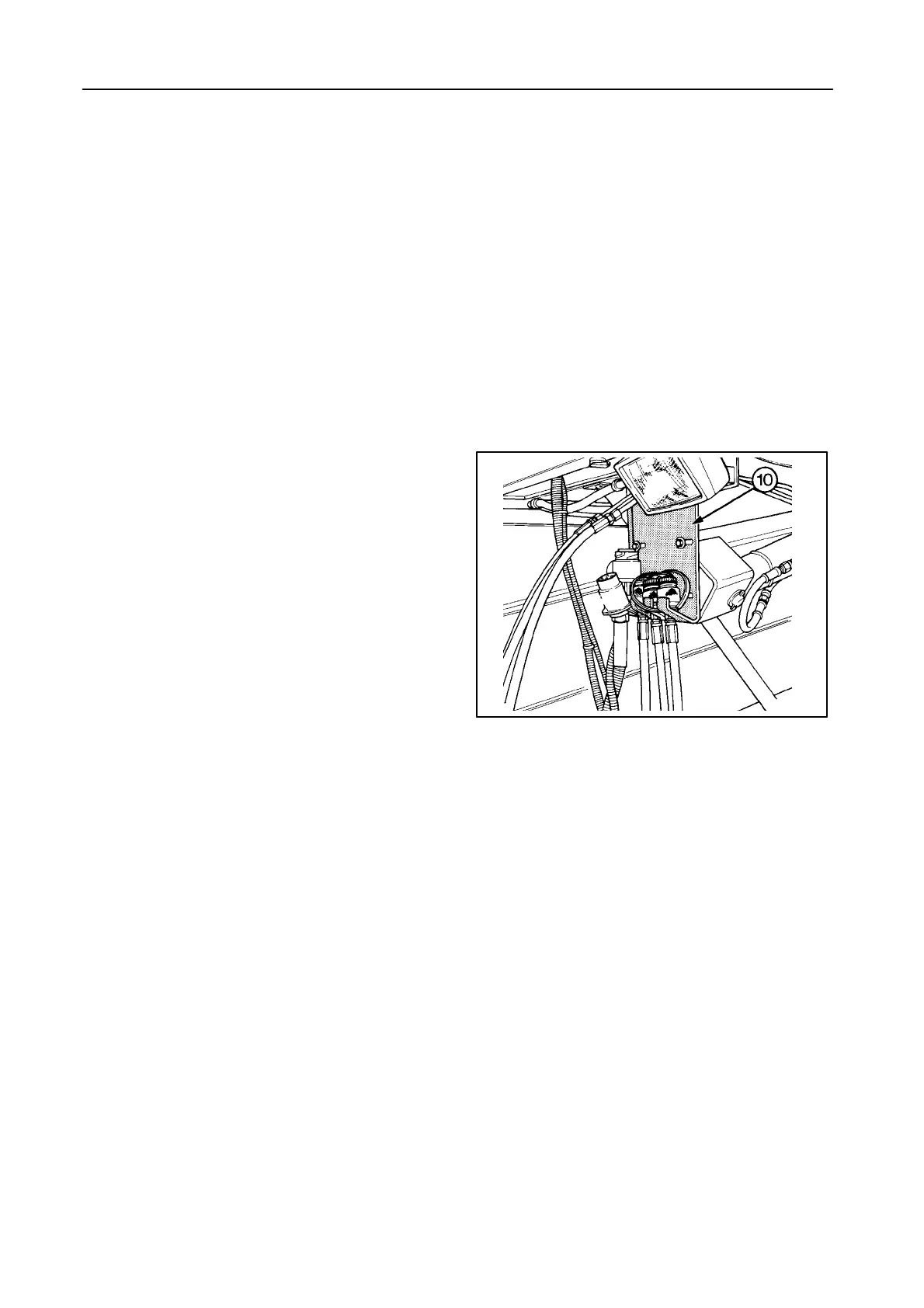

-- Figure 49
Proceed as follows :
1. Combine equipped with grain header only :
Set the reel in its lowest and rearmost position.
2. Disconnect the following parts :
S Header drive coupling
S Electrical connection(s)
S Hydraulic hoses or quick-release coupler [if
installed]
3. S Fit the blanking plugs into the hydraulic cou-
plings on the header and into the hydraulic
hoses. Hook the hydraulic hoses onto the
support plate 10.
S If a quick-release coupler is installed (refer to
Figures 47 and 48):
Release the hydraulic quick coupler by pres-
sing lock L and turning over handle H. Close
cover C, open cover D and hook hydraulic
block A onto plate P.
4. Position selector switch 17 (Fig. 44) in the arm
rest into the ‘‘manual control’’ (i.e. rear) position
(not applicable on model TX62).
5. Release quick-attach lever 1 (Fig. 45).
6. Position the header on level ground.
7. With the engine running at idle speed, lower the
straw elevator to release it from the header, then
move the combine rearwards.
IMPORTANT:
Avoid possible oil contamination by properly fit-
ting the blanking plugs into the hydraulic quick-
couplers or into each other during operation.
42758
49
