ADJUSTMENTS AND MAINTENANCE
5-24
FRONT FACE ADJUSTMENT [if installed] --

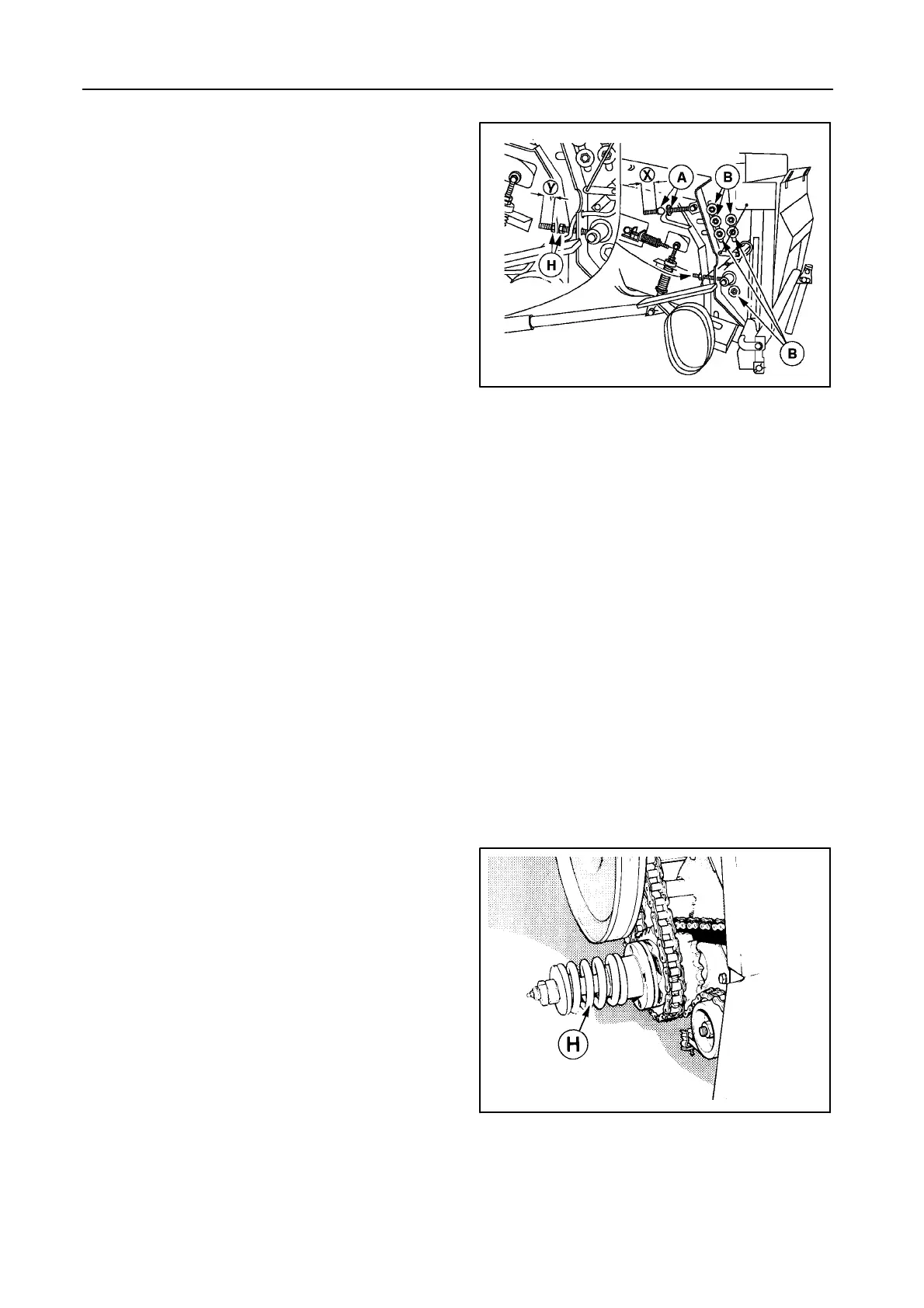

Figure 49
The operating angle of the header is adjustable to im-
prove crop feeding. The angle of the straw elevator
front face can equally be adjusted by changing dis-
tance X (factory-set to 72 mm) and distance Y (facto-
ry-set to 49 mm).
To adjust the angle of the front face, proceed as fol-
lows on both sides of the machine:
1. Loosen six nuts B.
2. Adjust distances X and Y between the header and
the straw elevator with nuts H.
3. Adjust the front face angle with nuts A.
4. Tighten nuts A and H.
5. Tighten nuts B to 240 Nm.
ATTENTION:
Make sure the straw elevator slats do not inter-
fere with the dust plates at the front part of the
straw elevator.
43182
49
ROTO--THRESHERS
SLIP CLUTCH -- Figure 50
The slip clutch on the roto-thresher shaft protects the
returns drive line.
When correctly adjusted, the spring length H should
measure 86 mm.
21074
50
