When the stone trap is completely clean, close it by
moving lever G completely downwards.
When threshing maize or rice, the stone trap should
be covered with a plate included in the maize or rice
threshing equipment.
35
30242

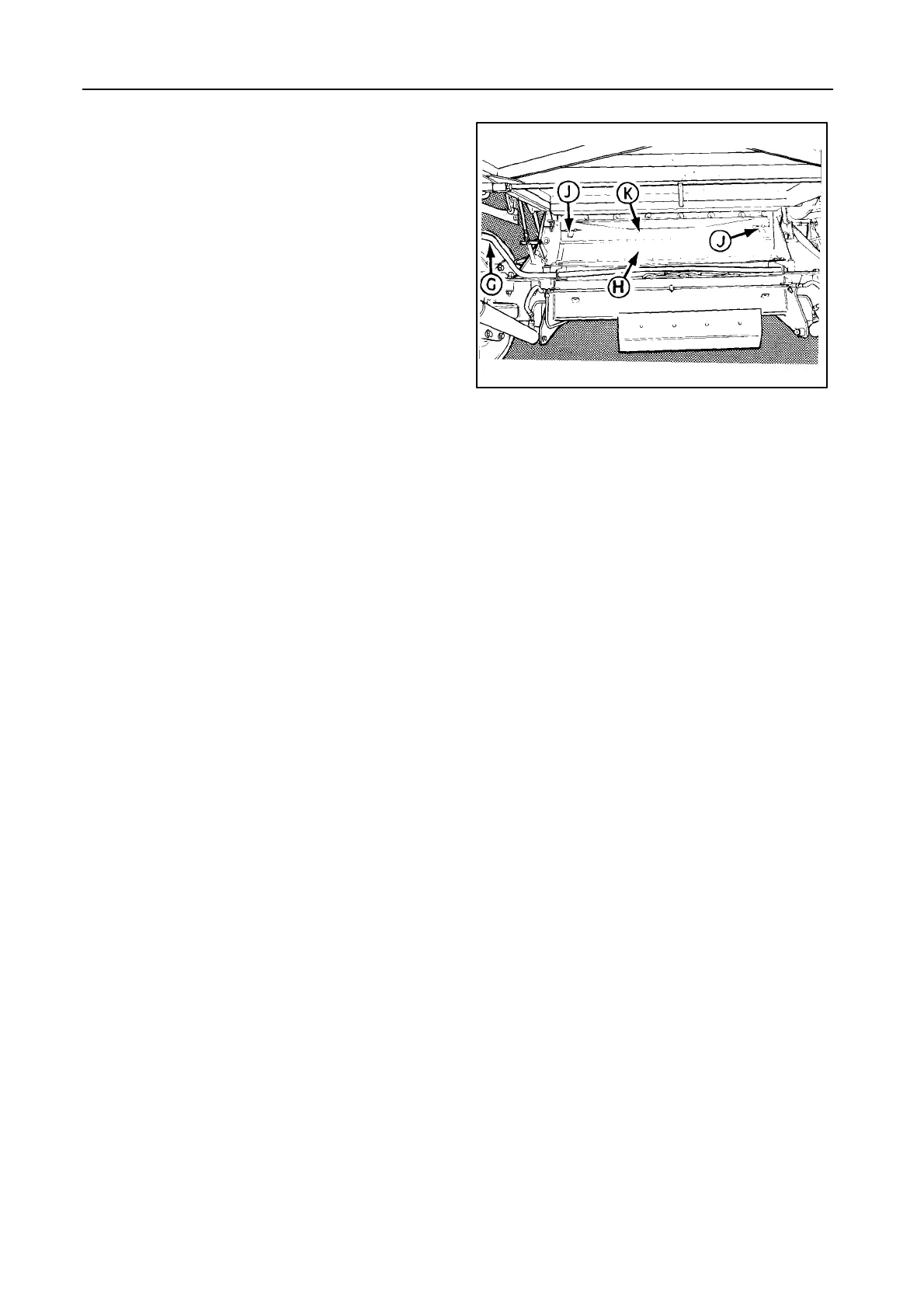

GRAIN PAN ACCESS -- Figure 35
To gain access to the grain pan at the front, proceed
as follows:
1. Open the stone trap as described in the previous
paragraph.
2. Slide the levers J towards the centre of the stone
trap.
3. Pivot plate K forwards.
4. Proceed in reverse order to reinstall plate K.
5. Close the stone trap.
To gain access at the sides, refer to paragraph
headed ‘‘Access to drum and concave”.
