SECTION 5
5-23

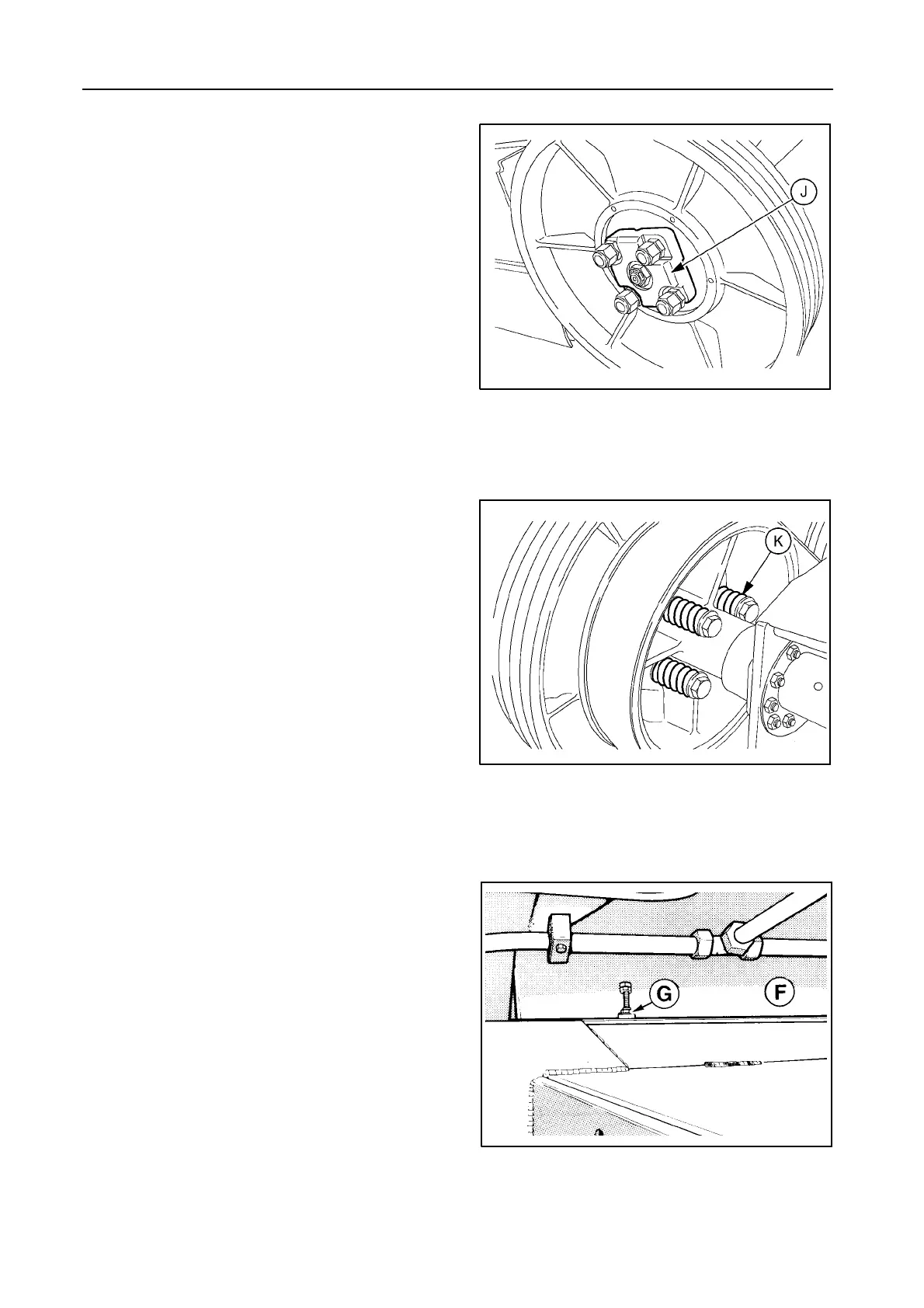

SLIP CLUTCH -- Figures 46 and 47
The audible slip clutch J is factory-set for average
conditions and must not be further tensioned.
Correct clutch tension ( in case of disassembly):
The length of spring K should measure 75.5 mm (slip
clutch torque is 600 Nm).
ANTIDUST PLATE -- Figure 48
An antidust plate is fixed to the cover F in front of the
drum. The lower part of the plate is adjustable. Adjust
nuts G until there is a clearance of 3 mm between the
plate and the drum rasp bars.
Remove the antidust plate when operating in maize.
46
55785
47
55784
21092
48
