CHAPTER 3 IMAGE READING/PROCESSING SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
3-30
5.3 Reader Motor
5.3.1 Removing the Reader Motor
1) Remove the copyboard cover.
2) Remove the copyboard glass retainer
(right).
3) Remove the rear cover.
4) Remove the right lower cover, right rear
cover, and right rear upper cover.
5) Open the manual feed tray, and detach
the left lower cover.
6) Remove the drum unit.
When you have removed the
drum unit, wrap it in several
sheets of copy paper to protect
the drum from light.
7) Remove the left rear cover ant the left
upper cover, and detach the rear upper
cover.

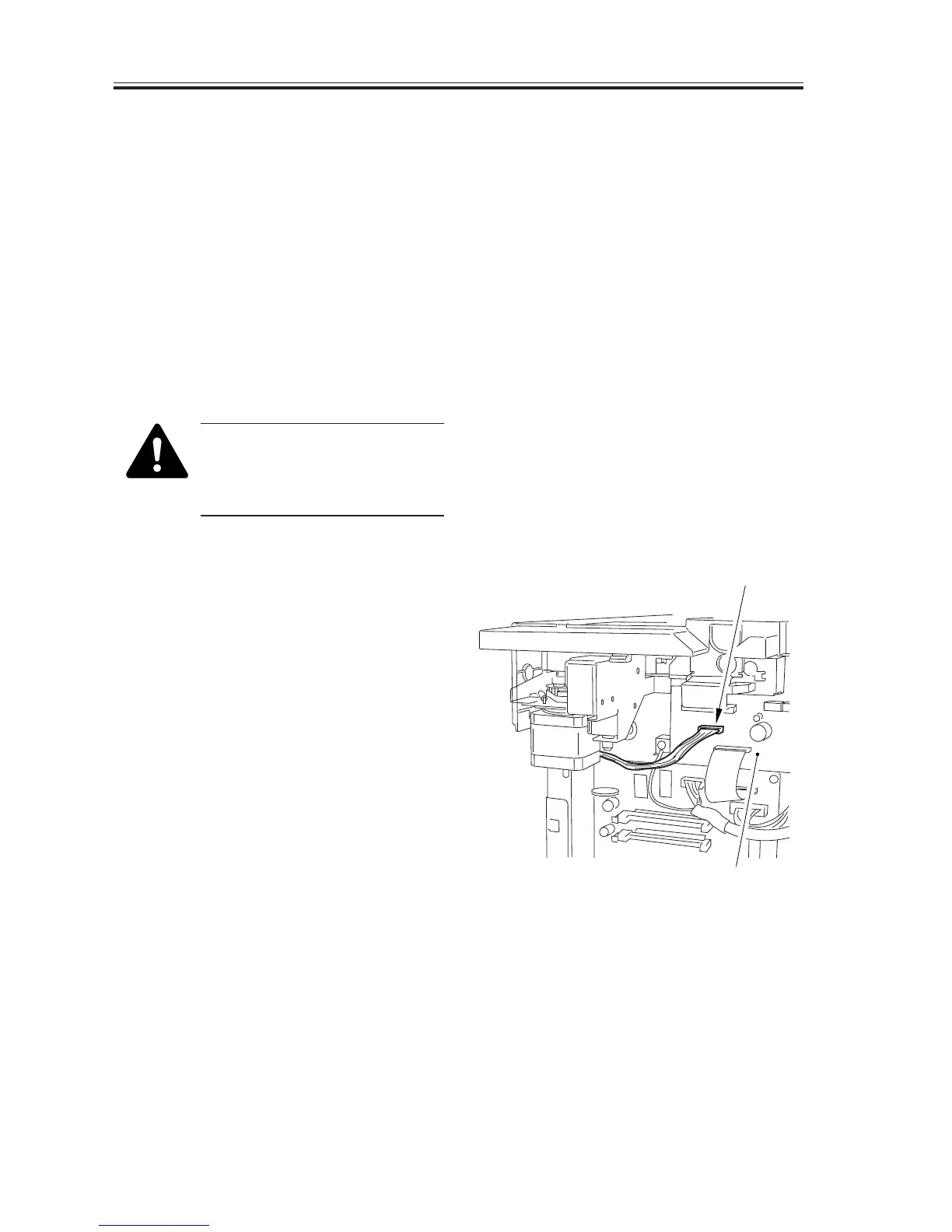

8) Disconnect the connector J13 [2] from
the original detection/reader motor drive
PCB [1].
F03-503-01
[1]
[2]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
