CHAPTER 6 PICKUP/FEDING SYSTEM

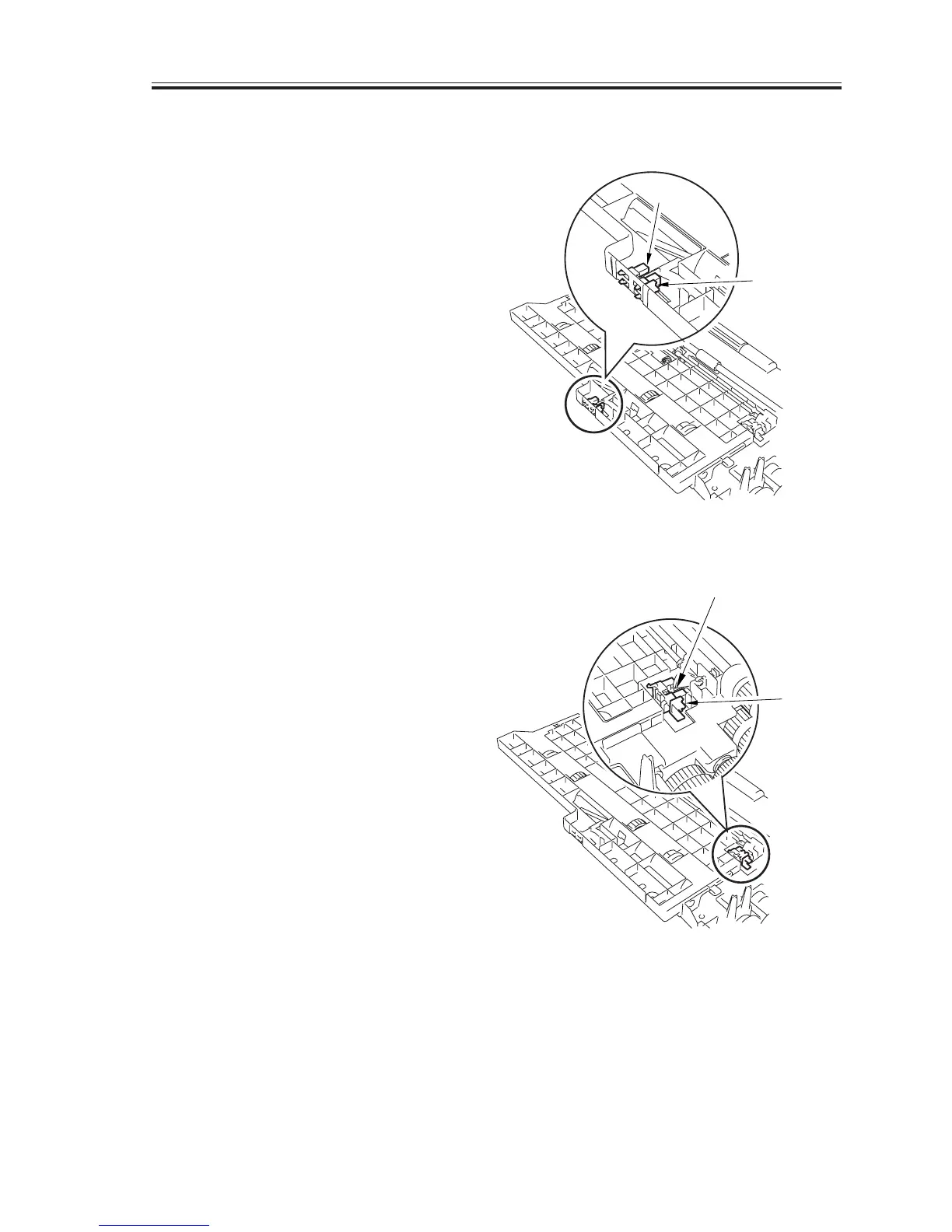

5.1.6 Removing the Cassette Paper Sensor
1) Remove the cassette pickup assembly
(5.1.1 in Chapter6).
2) Disconnect the connector [1], and de-
tach the cassette paper sensor [2].
F06-501-12
5.1.7 Removing the Retry Sensor
1) Remove the cassette pickup assembly
(5.1.1 in Chapter6).
2) Disconnect the connector [1], and re-
move the retry sensor [2].
F06-501-13
5.1.8 Removing the Pickup Motor (iR2000 only)
See to 4.4.1 Removing the Pickup Motor in Chapter9.
[2]
[1]
[2]
[1]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
