CHAPTER 6 PICKUP/FEDING SYSTEM
8) Holding the cassette unit [9] as shown,
separate it from the machine [8].

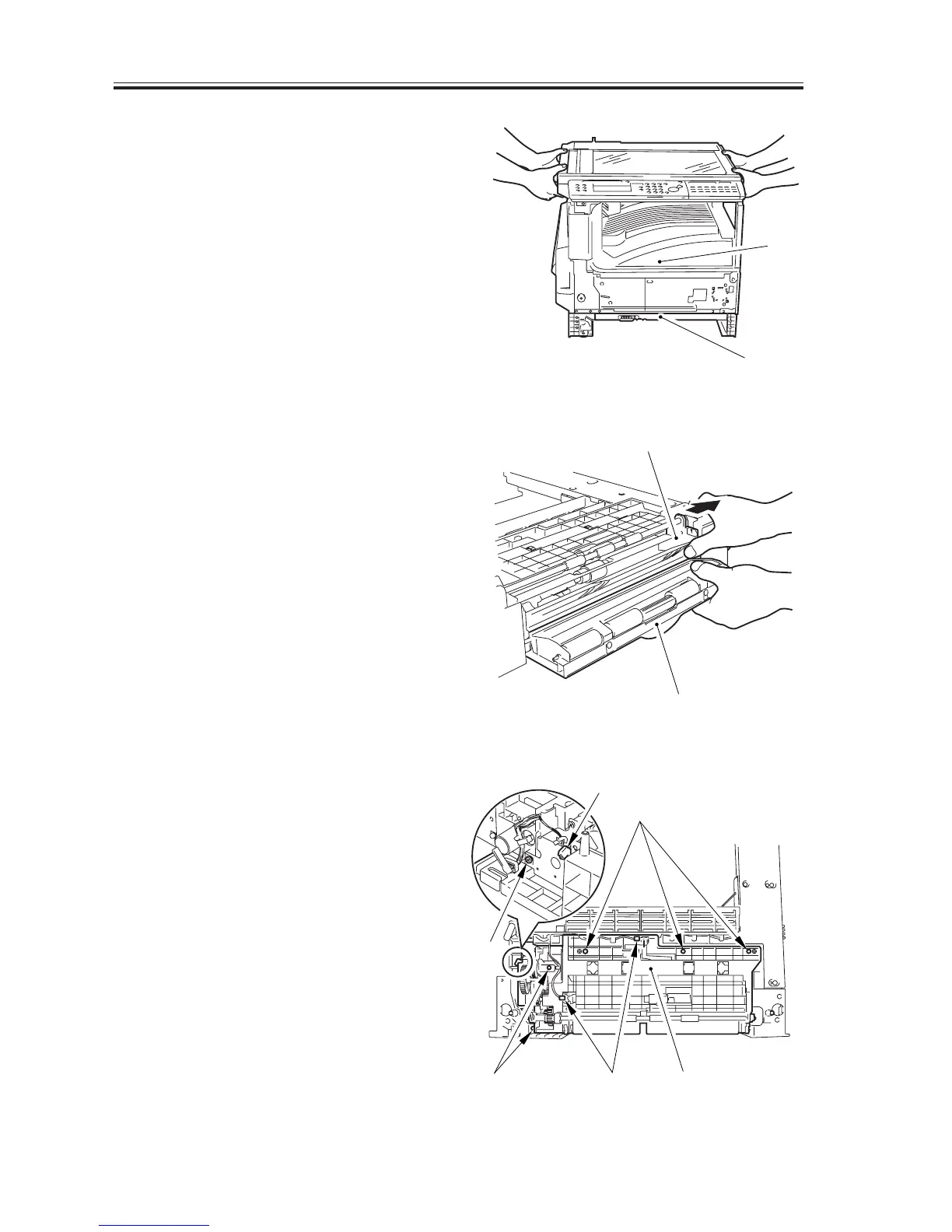

F06-501-03
9) Spread the support assembly [10] of the
front/rear of the left lower cover with a
little force, and detach the left lower
cover [11].
F06-501-04
10) Remove the 5 screws [12] and the screw
(w/ washer) [13].
11) Disconnect the 3 connectors [14], and
detach the cassette pickup assembly
[15].
F06-501-05
[12]
[15][14][12]
[14]
[13]
[10]
[11]
[8]
[9]
