CHAPTER 14 VERSION UP
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
14-17
2.5 Downloading for the Finisher-L1
2.5.1 Outline
To upgrade the Finisher-L1 (accessory) by upgrading the ROM on the controller PCB,
use a downloader PCB (FY9-2034).
Names and Functions

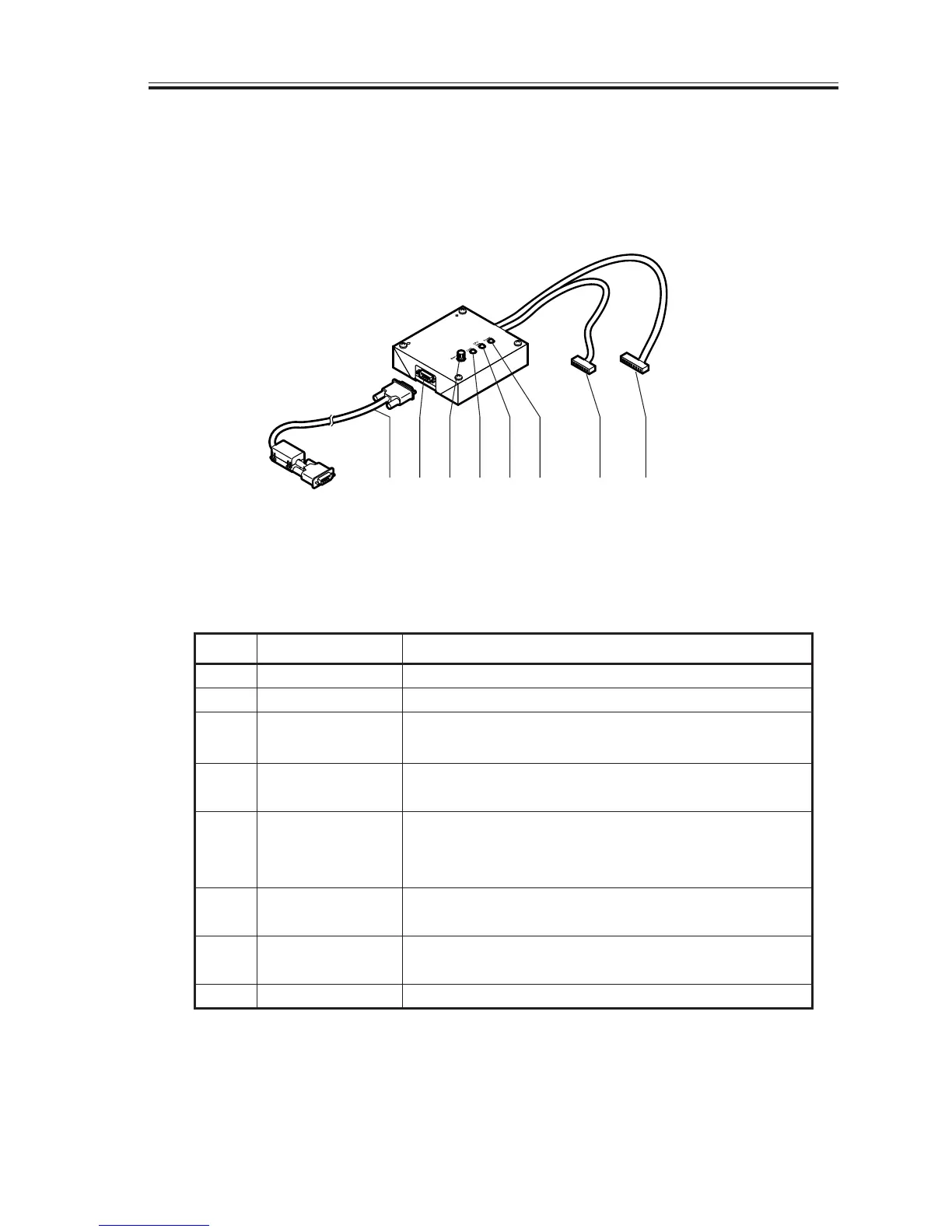

F14-205-01
Component names and functions
Ref.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
Name Description
Start/Stop button
Load LED
CPU type indicator
LED
Power LED
RS-232C cable
(straight, full-wire;
9-pin)
Cable A (9-pin;
about 70 cm long)
Cable B (7-pin;
about 50 cm long)
RS-232C connector
Press it to start/end downloading.
Remains ON while downloading is possible.
Not used.
Remains ON when the downloader PCB is supplied with
power by the accessory.
Used to connect the downloader PC and a PC. Be sure to
connect it so that its ferrite core is on the PC side.
Not used in the machine.
Used to connect the downloader PCB and the controller
PCB of the accessory.
Used to connect the RS-232C cable to the downloader PCB.
T14-205-01
[1] [2] [3] [4] [6][7][5] [8]
