Canon IR1600 User Manual

CHAPTER 14 VERSION UP
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
14-10
2.4 Downloading the System Software
a.Before Mounting
If you are upgrading the machine (i.e., replacing the ROM DIMM or downloading from a
PC), you will have to execute ‘ALL CLEAR’ after mounting. Be sure to print out the stored
data before you start installation or upgrading.
· Printing Out the Stored Data
Generating a Counter Report
In service mode, make the following selections: #10 REPORT>COUNTER REPORT.
The Counter Report provides the following contents:
1) various counter data
2) data produced as the result of changes made to factory settings (user data/service data)
3) system dump list (not used)
b. Making Connections
To download using a USB connection, go through the following:
1) Turn off the machine.
2) Remove the rear cover, and connect the USB connector (J203) on the image processor
PCB and the PC using a USB cable. If a network interface board is mounted, disconnect
the USB cable from the board.

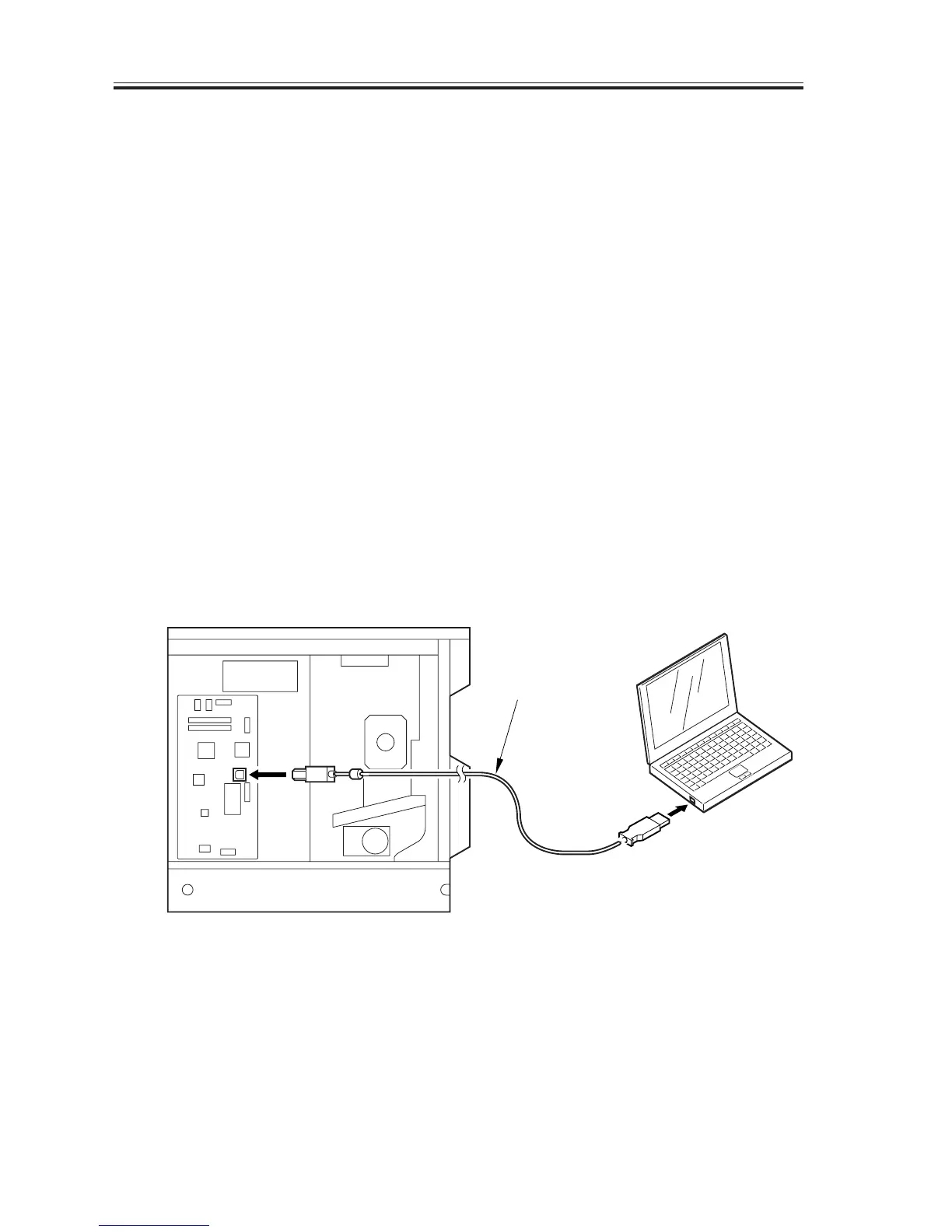

F14-204-01
3) Turn on the PC, and start up the Service Support Tool.
4) Turn on the machine.
[1]
J203
