COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-22
CHAPTER 6 PICKUP/FEDING SYSTEM

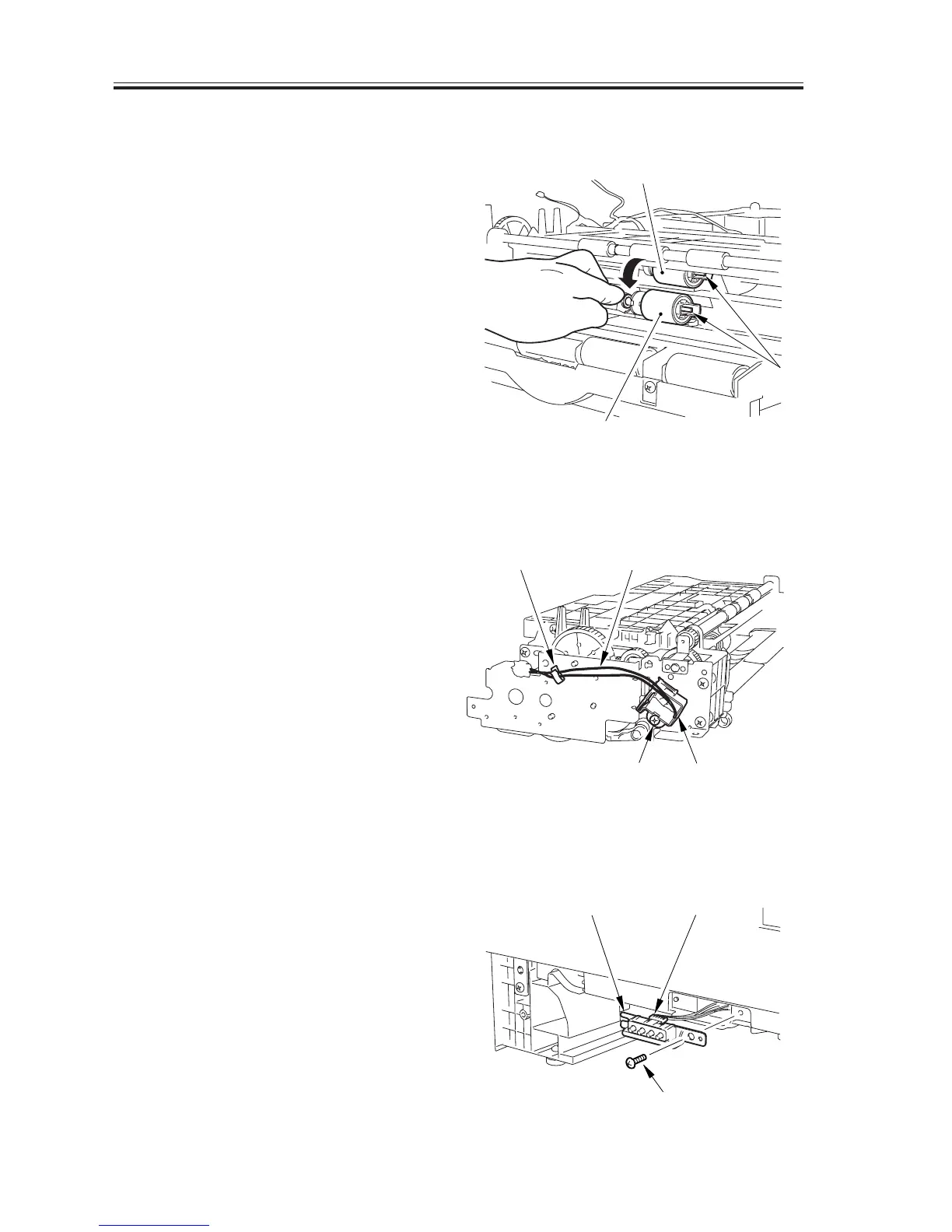

5.1.3 Removing the Feeding/Separation Roller
1) Slide out the cassette.
2) Open the left lower cover.
3) Push down the separation roller [1] as
shown; then, pick the claw [2] of the
roller collar, and detach the separation
roller [1] and the feeding roller [3].
F06-501-09
5.1.4 Removing the Cassette Pickup Solenoid
1) Remove the cassette pickup assembly
(5.1.1 in Chapter6).
2) Free the harness [1] from the harness
guide [2], and remove the screw [3];
then, detach the cassette pickup sole-
noid [4].
F06-501-10
5.1.5 Removing the Paper Size Detecting Switch
1) Remove the screw [1], and slide out the
paper size detecting switch [2].
2) Disconnect the connector [3], and re-
move the paper size detecting switch
[2].
F06-501-11
[3]
[1]
[2]
[4]
[2]
[1]
[3]
[2] [3]
[1]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
