COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-32
CHAPTER 6 PICKUP/FEDING SYSTEM

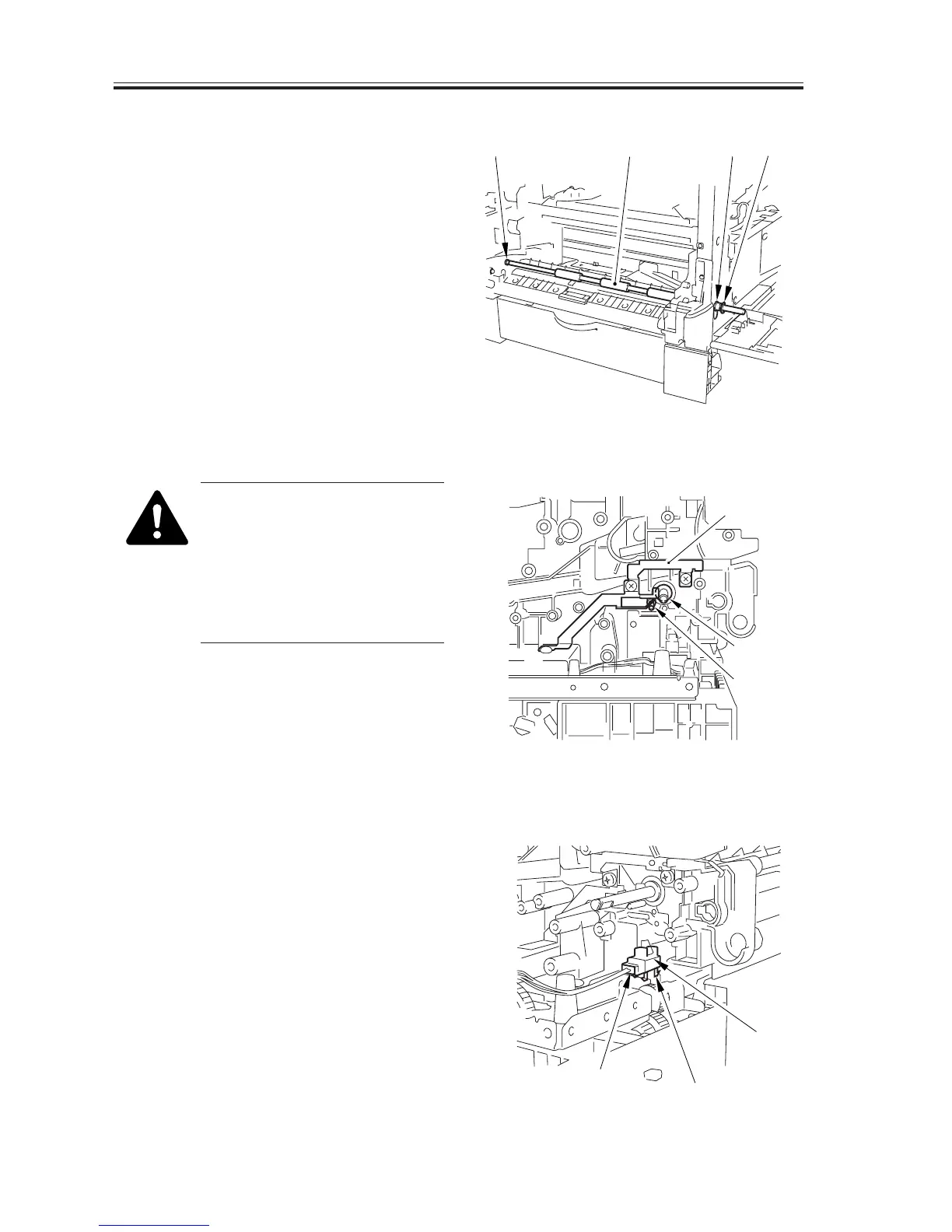

4) Pull the registration roller [7] to the
front, and detach the E-ring [7] and the
bushing [8].
5) Remove the busing [9] at the rear, and
detach the registration roller [6].
F06-504-03
When mounting the registration
roller, check to make sure that
the grounding plate [11] is in
contact with the bushing [12] of
the registration roller and the
shaft [13] under the registration
roller.
F06-504-04
5.4.2 Removing the Registration Paper Sensor
1) Remove the drive assembly (5.3.1 in
Chapter6).
2) Disconnect the connector [1].
3) Free the 4 claws [2], and detach the reg-
istration paper sensor [3].
F06-504-05
[11]
[12]
[13]
[7][8][6][9]
[2]
[1]
[3]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
