CHAPTER 13 TROUBLESHOOTING
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
13-7
2.1.4 Adjusting the Image Position for Copying
1) Adjust the image leading edge margin by making the following selections in service
mode: #6 SCANNER>7. CCD>parameter 023.
A higher setting will decrease the margin A.
A lower setting will increase the margin A.
Adjustment value of 1 = 0.1 mm (range of adjustment: 0 to 9999; default: 145)

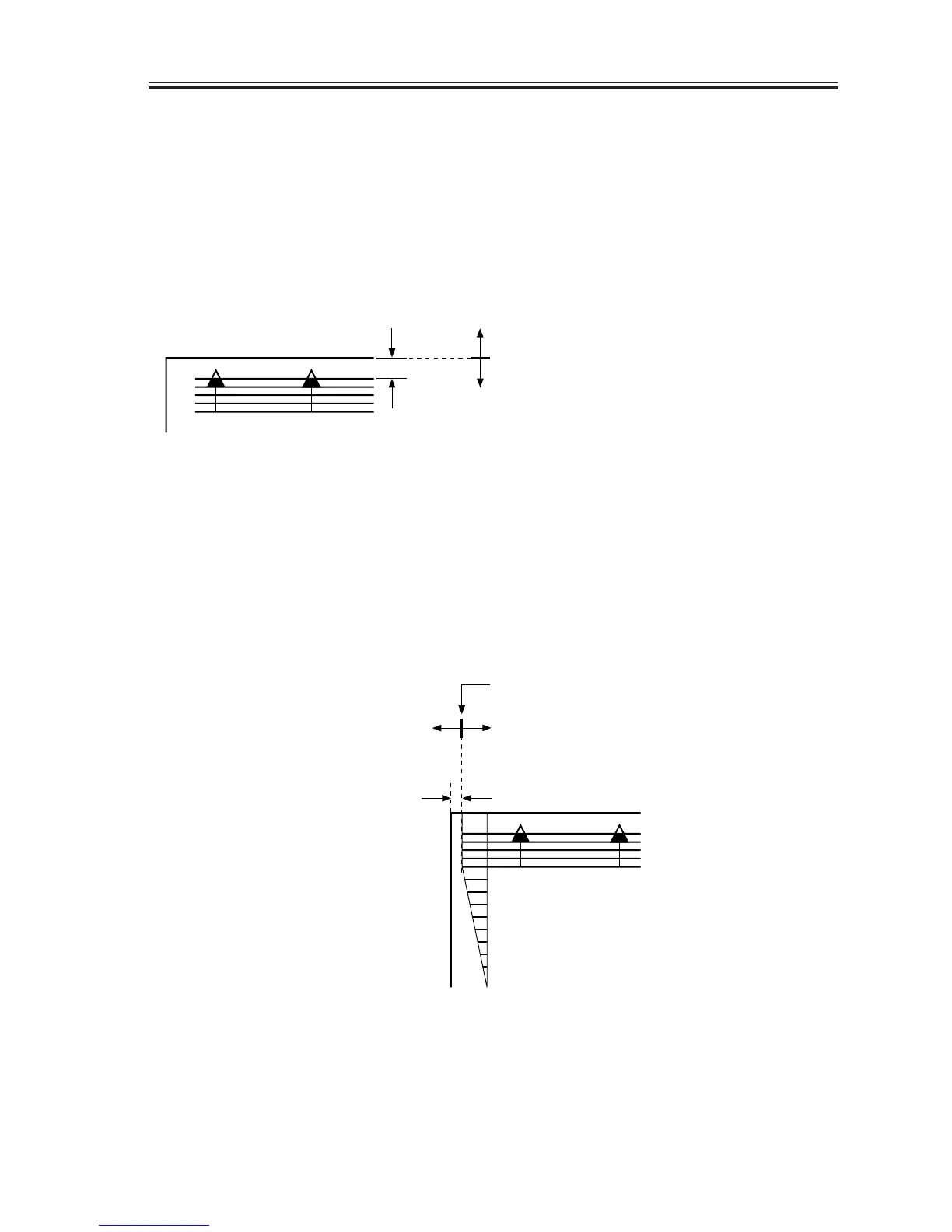

F13-201-06
2) Adjust the left/right image margin by making the following selections in service mode:
#6 SCANNER>7. CCD>parameter 021.
A higher setting will decrease the margin A.
A lower setting will increase the margin A.
Adjustment value 1 = 0.04 mm (range of adjustment: 0 to 9999; default: 128)
F13-201-07
A
Image edge
Lower setting
(a decrease of '1' will
increase the margin by 0.04 mm)
Higher setting
(an increase of '1' will
decrease the margin by
0.04 mm)
0
2
4
6
8
10
Leading edge of paper
Lower setting
(a of '1' will increase the margin by 0.1 mm)
Higher setting (an increase of '1' will decrease the
margin by 0.1 mm)
A
