CHAPTER 5 IMAGE FORMATION SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
5-3

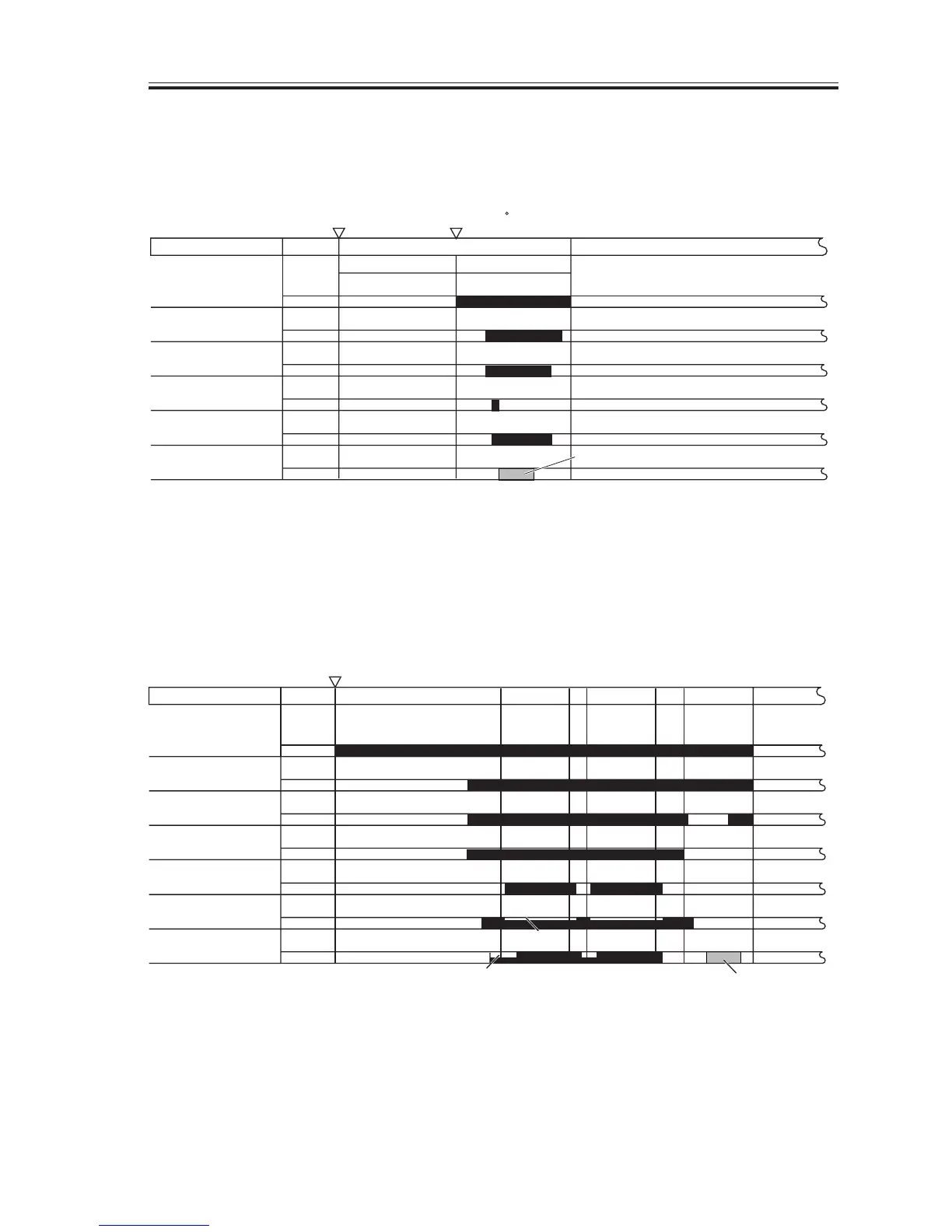

1.2 Sequence of Operation (image formation system)
• At Power-On
F05-102-01a
• During Printing (1 original, 2 copies, continuous)
F05-102-01b
WAIT
WMUPRWMUP
STBY
Main motor (M101)
Primary AC bias
Primary DC bias
Developing AC bias
Developing DC bias
Transfer bias
Power switch
ON
(unit: sec)
Cleaning bias
Fixing roller at 140 C
PRINT STBYLSTRPRINTINTRSTBY
*1 : v aries depending on density setting. If PDL output,the copying is constant.
*2 : A TVC control.
*1
*2
Main motor (M101)
Primary AC bias
Primary DC bias
Developing AC bias
Developing DC bias
Transfer bias
Scanner motor
(M102)
Start key ON or
print signal input
Cleaning bias

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
