CHAPTER 4 LASER EXPOSURE SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
4-3

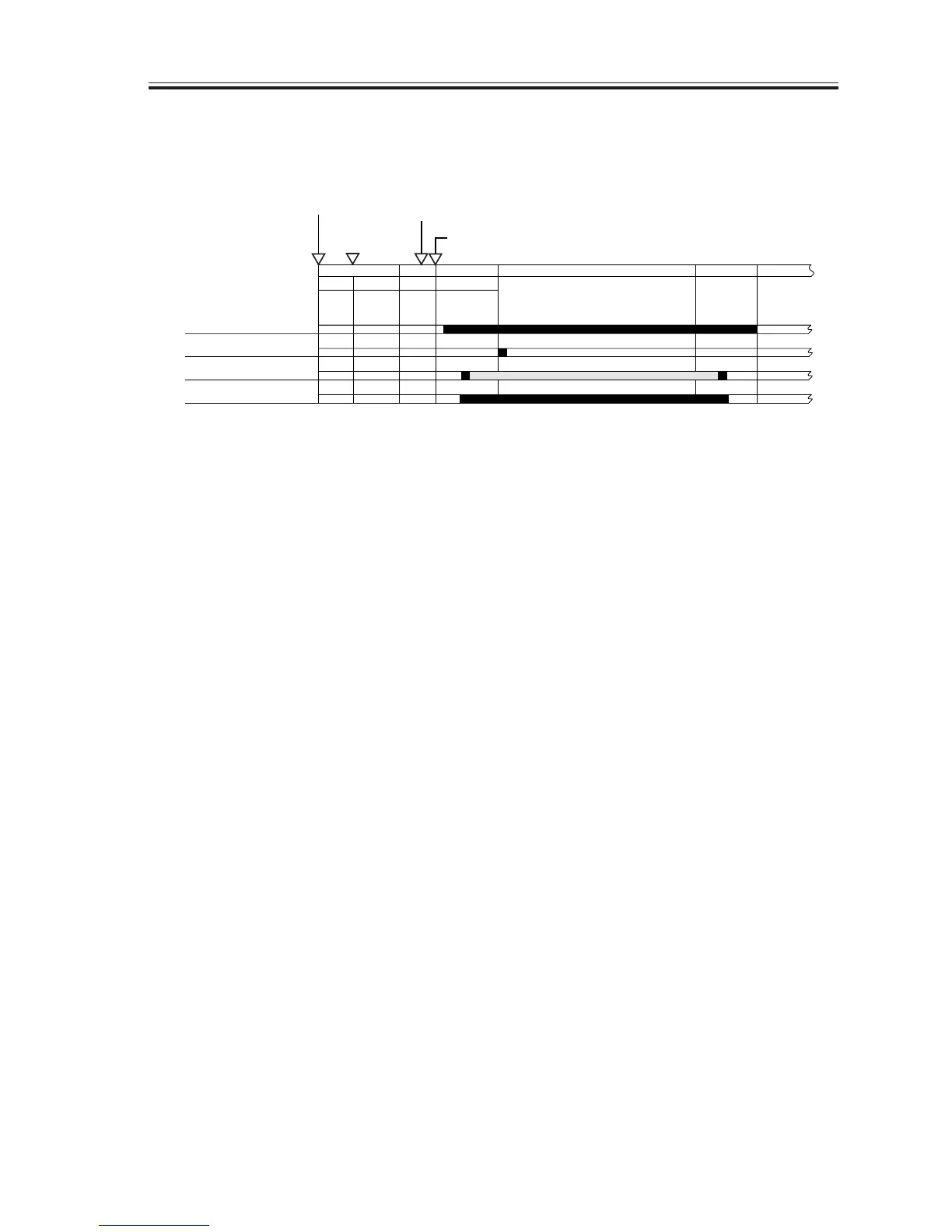

1.2 Basic Sequence of Operation (laser exposure system)
F04-102-01
Power switch ON
Original placed/ADF
opened
Start key ON
Fixing roller
140˚C
TOP signal(TOP*)
PRINTINTR
WMUP
WAIT*1
WMUPR
LSTR STBYSTBY
BD signal(BDI* )
Laser scanner
motor(M102)
*1: WAIT End Conditions:
: 25 sec or more passed after supplying power to the fixing assembly
and, in addition, the fixing assembly temperature is 150 or higher.
: 27 sec or more passed after supplying power to the fixing assembly
and, in addition, the fixing assembly temperature is 145 or higher.
Laser

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
