CHAPTER 9 CASSETTE UNIT
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
9-4
2 Pickup Assembly
2.1 Pickup Control System

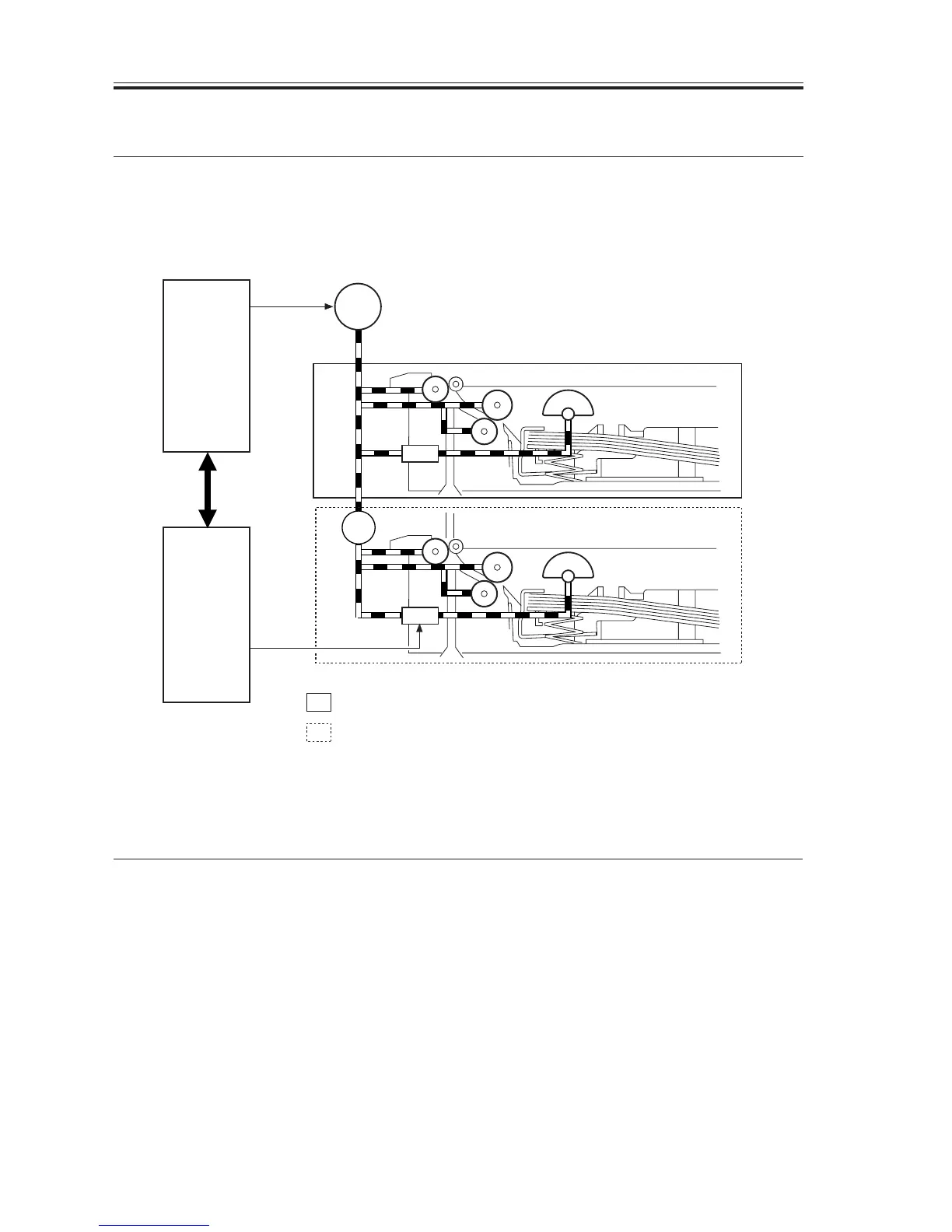

The following diagram shows the pickup control system:
• 1-Cassette Unit
F09-201-01
Ref. Name
[1] Link gear
[2] Main motor drive signal (MTRON)
[3] Cassette pickup solenoid drive signal (CSTFD)
T09-201-01
SL151
SL151
M101
[1]
[2]
[3]
DC controller PCB
1-cassette unit
controller PCB
: 1-cassette unit
: cassette unit of host

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
