CHAPTER 13 TROUBLESHOOTING
COPYRIGHT
©
2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
13-66

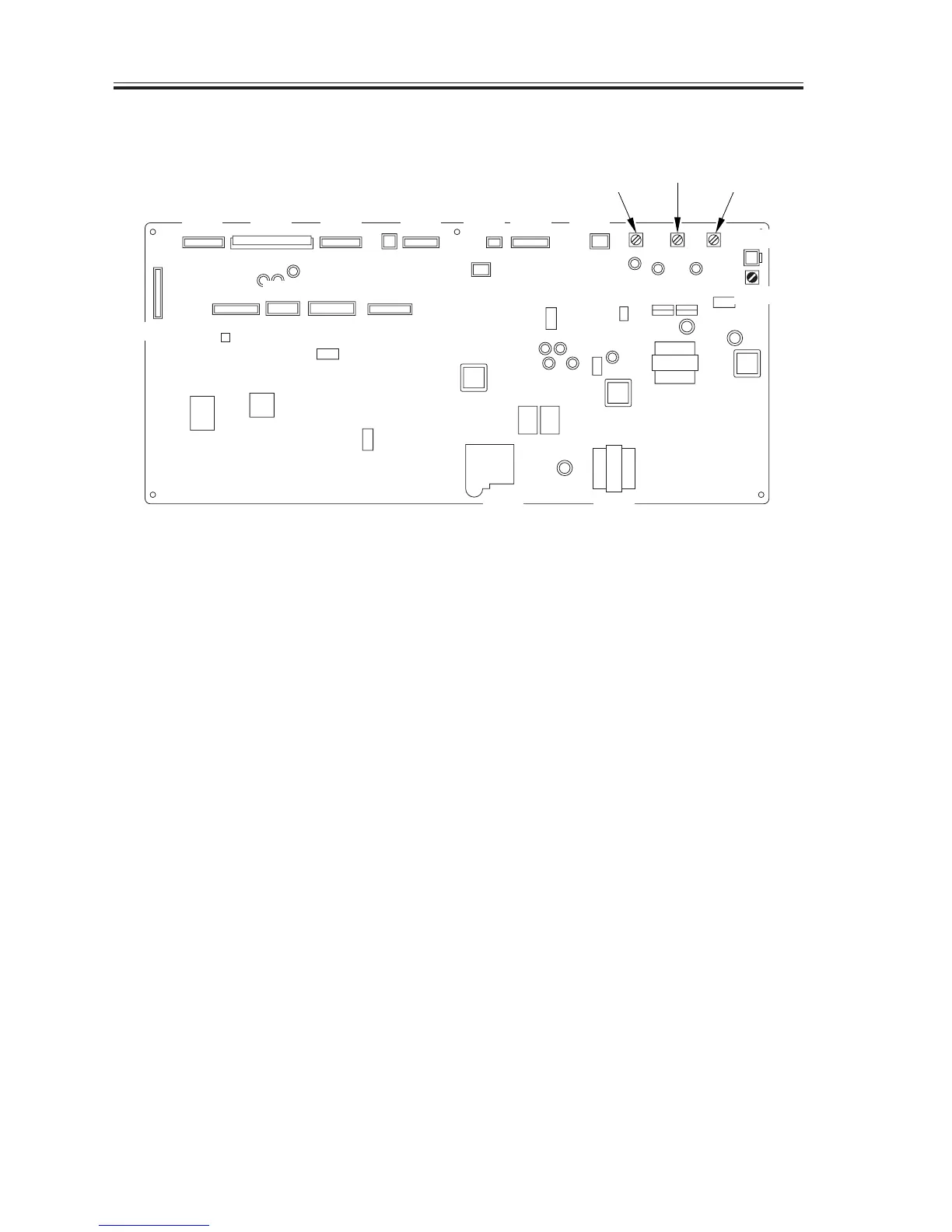

4.8.2 DC Controller PCB
F13-408-02
VR101 : volume for adjustment of leading edge
VR401 : for factory (volume for adjusting high-voltage power supply reference voltage)
VR402 : for factory (volume for adjusting toner level detection reference)
VR403 : for factory (volume for adjusting toner level detecting antenna)
SW101 : test print switch
J110 J105 J106 J112 J108 J103 J107
J111J102
J104
J101 J109
J114
J113J113
VR402
VR101
SW101
VR401 VR403
T405
T401
T408
T404
T402T403
