CHAPTER 3 IMAGE READING/PROCESSING SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
3-2
2 Reader Drive System
2.1 Outline
The reader drive system consists of the following: reader motor, drive pulley, carriage,
carriage rail, carriage drive belt.
The drive signal from the image processor PCB is sent to the reader motor (M103) by
way of the driver circuit on the original detention/reader motor drive PCB. The drive from
the reader motor is transmitted to the carriage by way of the drive pulley and drive belt to
move the carriage forward or in reverse.

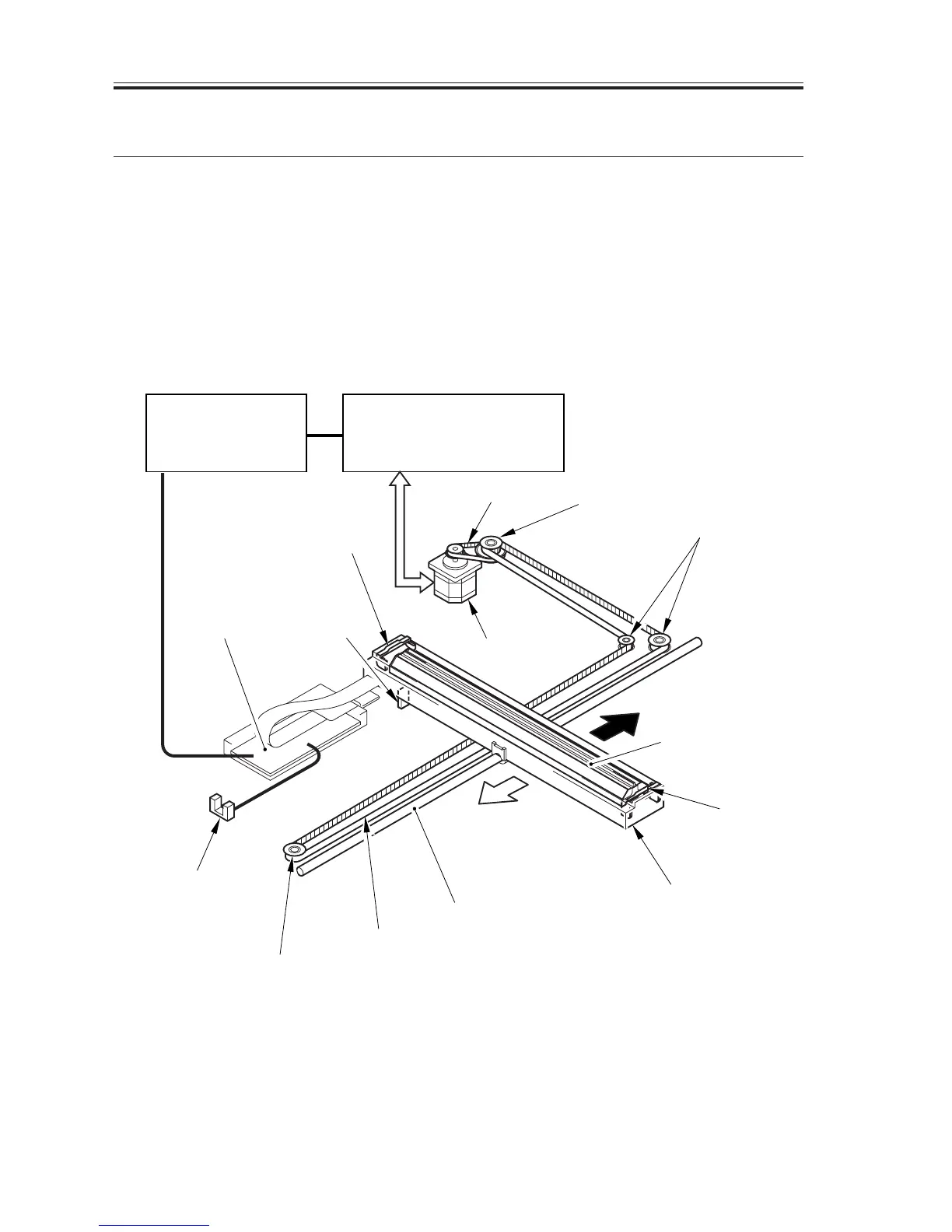

F03-201-01
Carriage rail
Drive pulleys
Reader motor
(M103)
(forward)
(reverse)
Image processor
PCB
Original detection/reader
motor drive PCB
Drive belt
Spacer
Spacer
Analog
processor
PCB
Carriage drive belt
Drive pulley
Drive pulley
Carriage
CS unit HP sensor
(PS113)
Contact sensor
unit
Sensor
light-blocking
plate

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
