Canon IR1600 User Manual

CHAPTER 13 TROUBLESHOOTING
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
13-3
2 Standards and Adjustments
2.1 Image Adjustments
2.1.1 Standards for Image Position

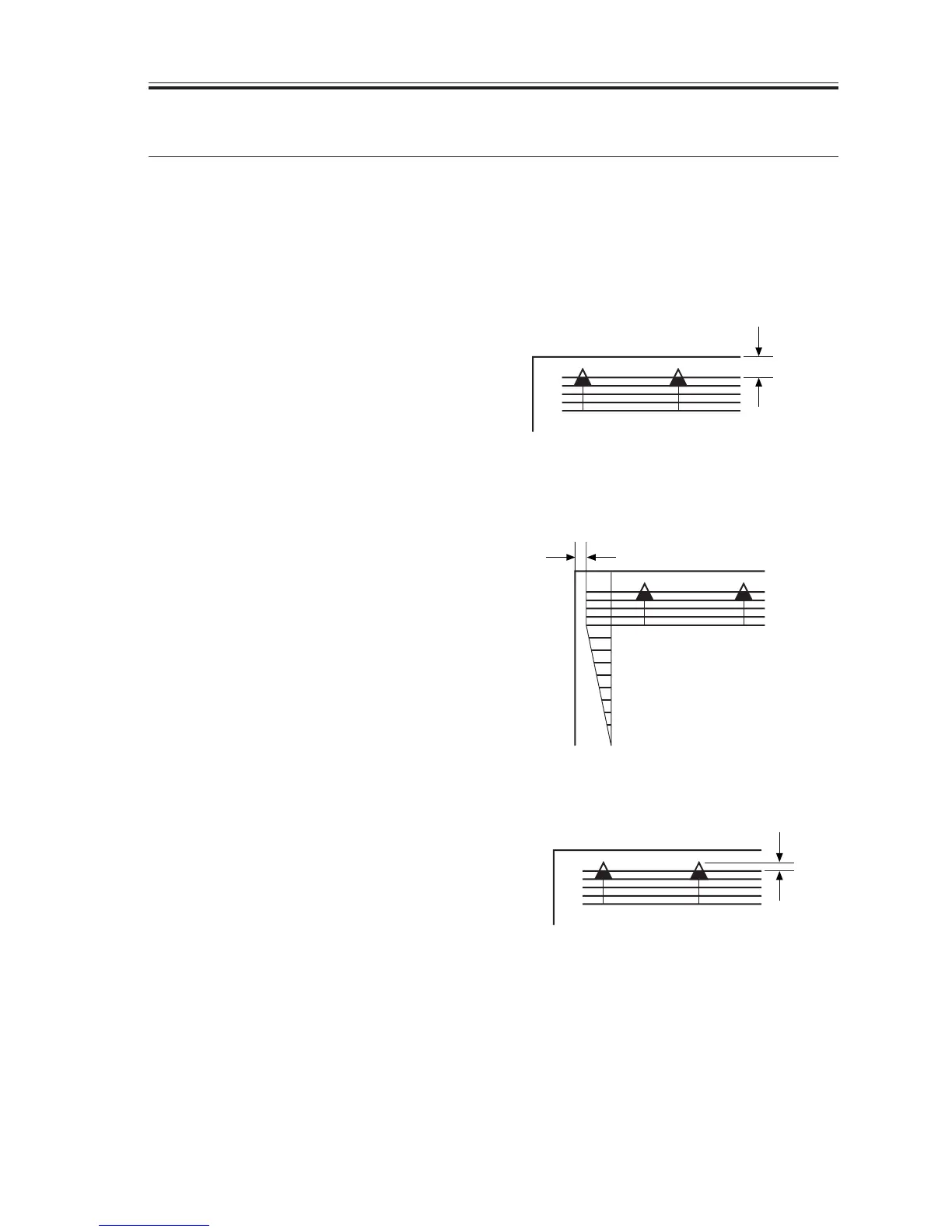

The image margin/non-image width on prints made in Direct must be as follows:
Image leading edge margin:
Image leading edge margin:
A = 3.0 ± 1.5mm.
Image trailing edge margin:
A = 3.0 ± 2.0mm.
If B4 or larger, 4.0 ± 2.0mm.
F13-201-01
Left image margin:
B = 3.0 ± 2.0mm.
Right image margin:
B = 0.5mm or more
F13-201-02
Leading edge/trailing edge non-image
width:
C = 3.0 ± 2.0mm.
F13-201-03
A
B
0
2
4
6
8
10
C
