CHAPTER 6 PICKUP/FEDING SYSTEM
4.2.2 Stationary Jams
a. Ordinary Stationary Jam
The machine checks for a stationary jam as follows:
The machine will identify the following condition as a stationary jam: the time it takes for
paper to move from the stationary jam sensor N in question to the next sensor is controlled
in relation to the number of clock pulses from the main motor; the sensor N does not go
OFF within a specific period of time after the sensor N goes ON.

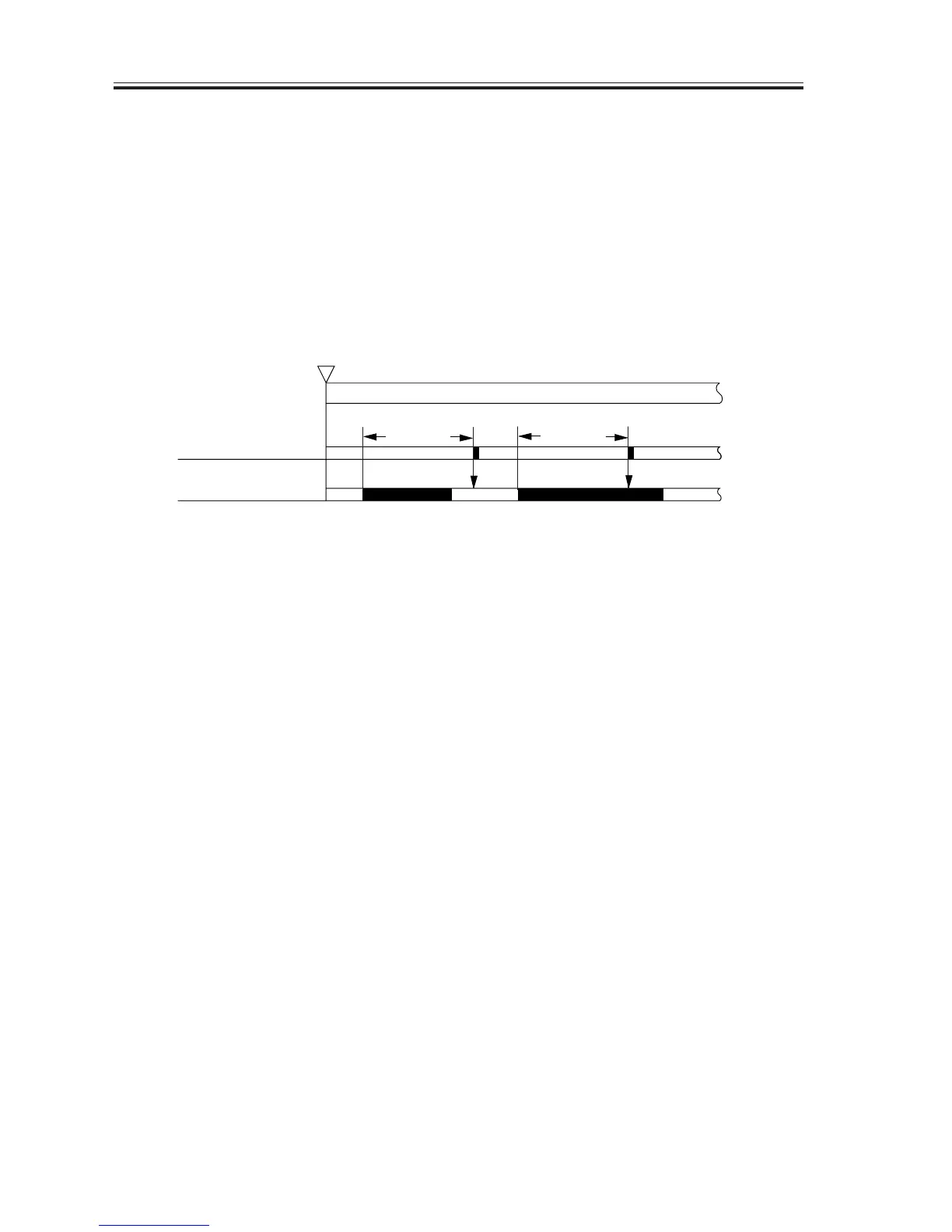

F06-402-02
b. Stationary Jam at Power-On
The machine will identify the following condition as a stationary jam: the delivery sensor
(PS103) goes ON 1.4 sec after the initial rotation (INTR), or the registration sensor (PS101)
goes ON at the start of initial rotation (INTR).
Start key ON or
PRINT setting accepted
INTR / PRINT
L + A
Normal
Error
L + A
(L =
paper feed length A = specific feed length)
Sensor N
Jam check

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
