COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-6
CHAPTER 6 PICKUP/FEDING SYSTEM
2.1.3 Pickup Retry
If paper is not picked up despite the rotation of the pickup roller, the machine will execute
a retry operation. The DC controller PCB keeps count of the time starting when the cassette
pickup solenoid (SL151) goes ON. If the retry sensor (PS152) does not detect the leading
edge of paper within a specific period of time, the machine will turn on the cassette pickup
solenoid once again for a pickup retry.
If the retry sensor does not detect the leading edge of paper within a specific period of
time after executing a retry pickup twice, the machine will identify the condition as a jam,
and will indicate a jam message on the LCD in the control panel.

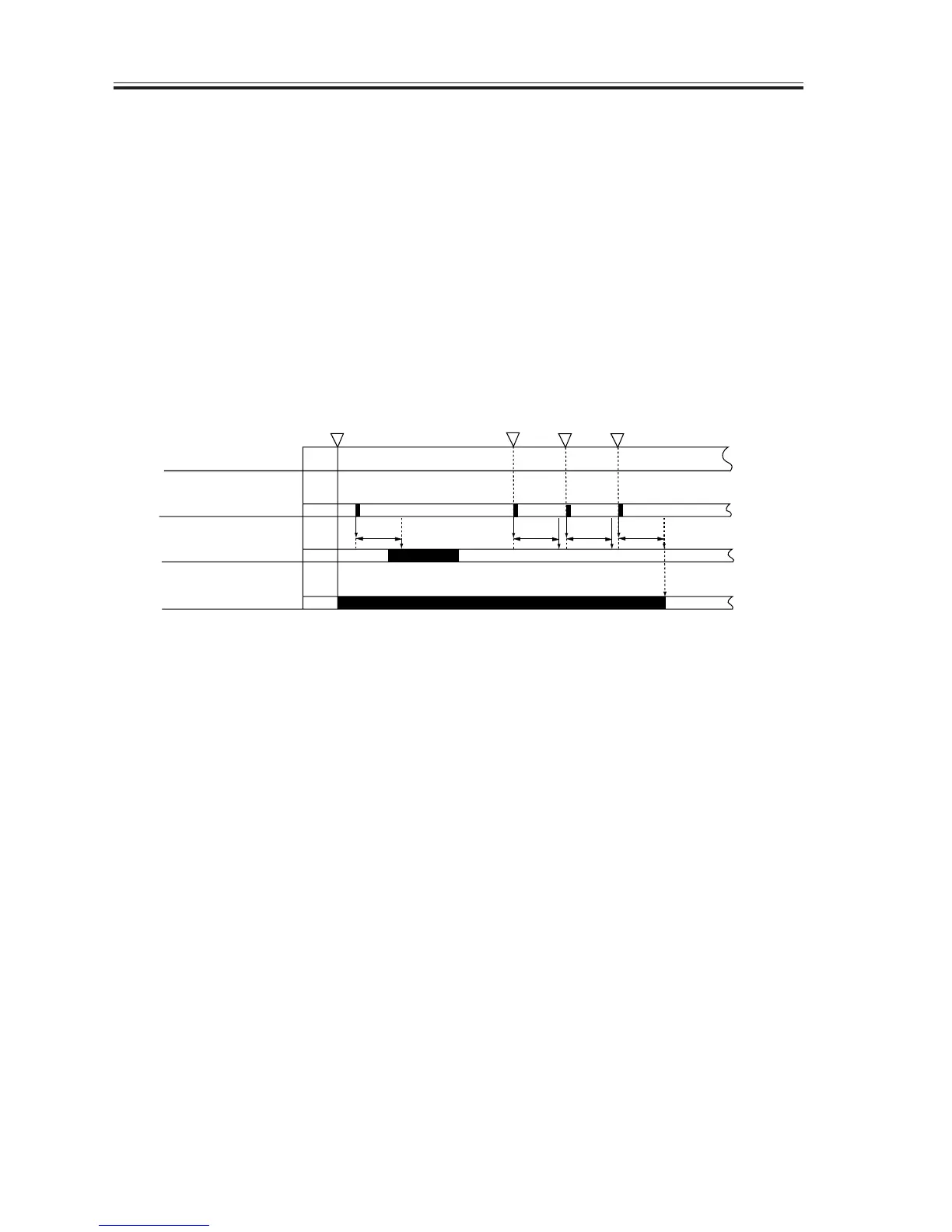

• Sequence of Operation for a Pickup Retry
F06-201-05
(SL151)
(PS152)
(M101)
LLLL
(L=specific time)
Cassette pickup
solenoid
Retry sensor
Main motor
Start key ON or
print signal input
2nd pickup
2nd retry1st retry
Normal Error

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
