CHAPTER 11 INSTALLATION
COPYRIGHT
©
2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
11-25
3 Relocating the Machine
If you must relocate the machine by truck or other means of transportation after the in-
stallation of the machine, perform the following:
1. Remove all paper from the cassettes.
2. Turn off the power, and disconnect the power plug from the power outlet.
3. Start service mode, and execute ‘#14 CS SET’ so that the carriage moves to home posi-
tion. Using the fixing screw stored on the front cover, secure the carriage in place from
under the reader.
• Check to make sure that the carriage will not move.
4. Take out the drum unit. Put the drum unit in a protective bag, and carry it separately.
5. Take out the developing assembly, and carry it separately.
6. The transfer charging roller can become displaced in transit. Be sure to fix it in place
with tape [1] as shown. (At that time, wrap the gear assembly with lint-free paper to
keep it from glue.)
7. Tape the covers and cassette in place.
8. If the machine is equipped with an ADF, place A3 or 11x17 copy paper on the
copyboard glass, and tape the ADF in place.

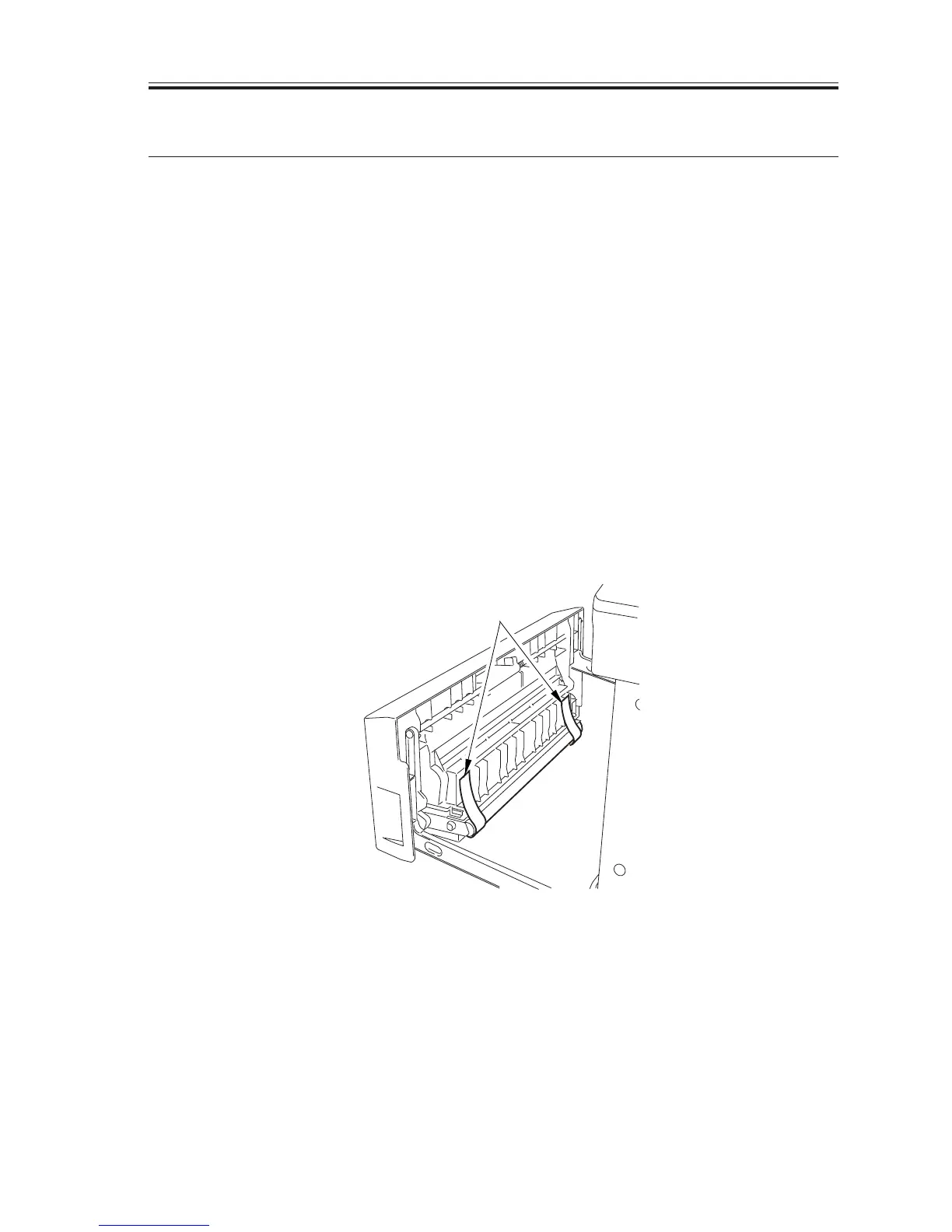

F11-301-01
[1]
