CHAPTER 8 EXTERNALS AND AUXILIARY CONTROL SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
8-29
6.5.8 After Replacing the Analog Processor PCB
Go through the instructions given for the replacement of the analog processor PCB in
2.3.6 of Chapter13.
6.5.9 Removing the Power Supply PCB
1) Remove the right cover.
2) Disconnect the 4 connectors [1] and the
flexible cable [2] from the power supply
PCB.
3) Remove the 7 screws [3] from the
power supply PCB, and detach the
power supply PCB [4].

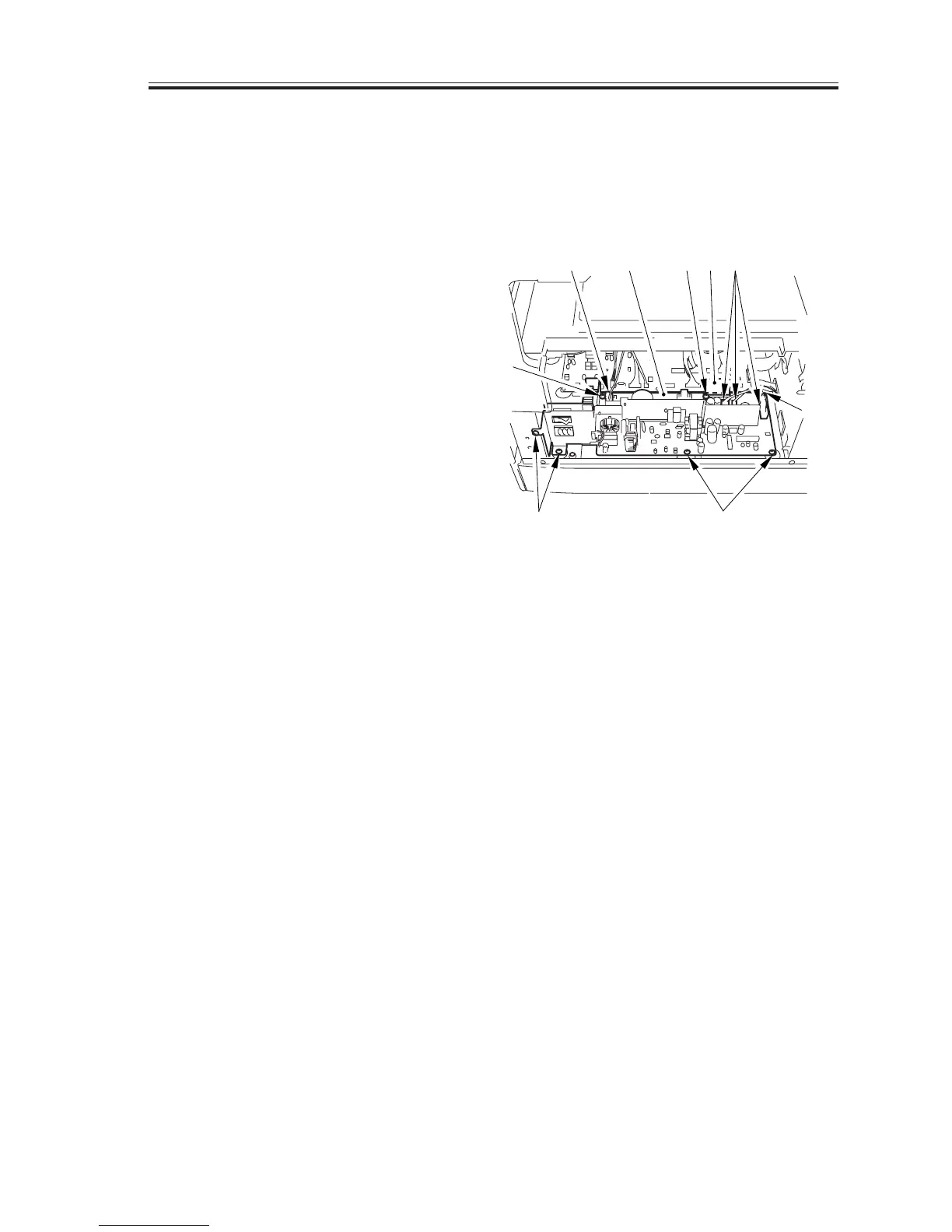

F08-605-12
[3]
[4][1] [3] [1][2]
[3]
[3][3]
