CHAPTER 13 TROUBLESHOOTING
COPYRIGHT
©
2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
13-56
4.3 Sensors

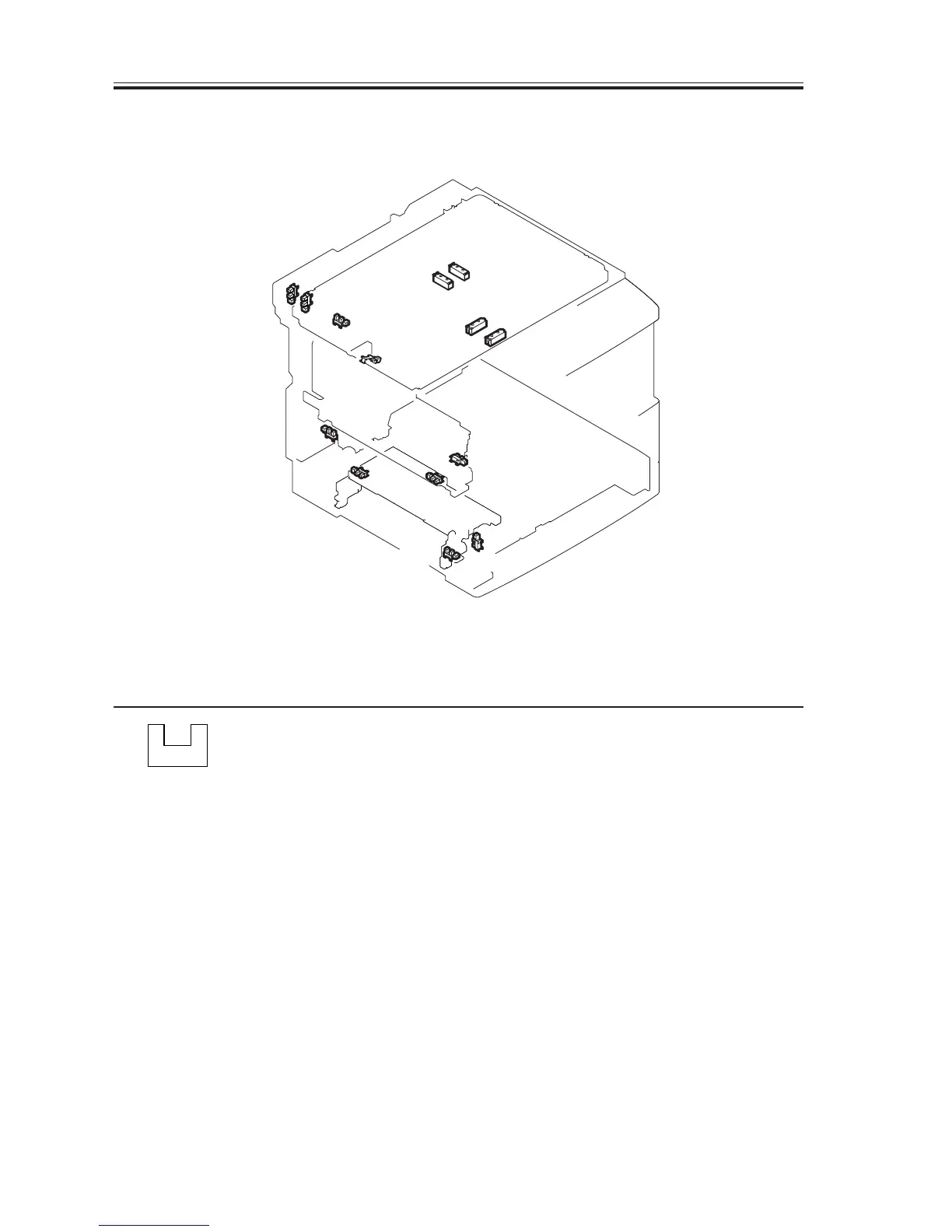

F13-403-01
Symbol Name Notation Function
Sensor PS101 Registration paper sensor
PS102 Paper full sensor
PS103 Delivery sensor
PS105 multifeeder paper sensor
PS111 Copyboard cover open/closed sensor
PS112 ADF open/closed sensor
PS113 CS unit HP sensor
PS114 Original size sensor 1
PS115 Original size sensor 2
PS116 Original size sensor 3
PS117 Original size sensor 4
PS120 Waste toner case full sensor
PS151 Cassette paper sensor
PS152 Retry sensor
PS113
PS111
PS112
PS114
PS116
PS105
PS101
PS152
PS151
PS103
PS102
PS117
PS115
PS120
