COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-8
CHAPTER 6 PICKUP/FEDING SYSTEM
2.2 Controlling the Pickup from the Multifeeder Tray
2.2.1 Outline
The manual feed pickup operation is designed to enable continuous pickup of sheets of
paper stacked in the multifeeder tray.
The paper in the tray is held up by the holding plate, and is forced against the manual feed
pickup roller. The drive of the manual pickup roller comes from the main motor (M101) by
way of the manual pickup solenoid (SL101) and a gear.
The manual pickup roller and the manual pickup separation pad make sure that only one
sheet of paper is picked and sent to the registration roller.
This series of operations is performed for each single sheet of paper.
The size of paper placed in the multifeeder tray is as selected by the user in the control
panel.

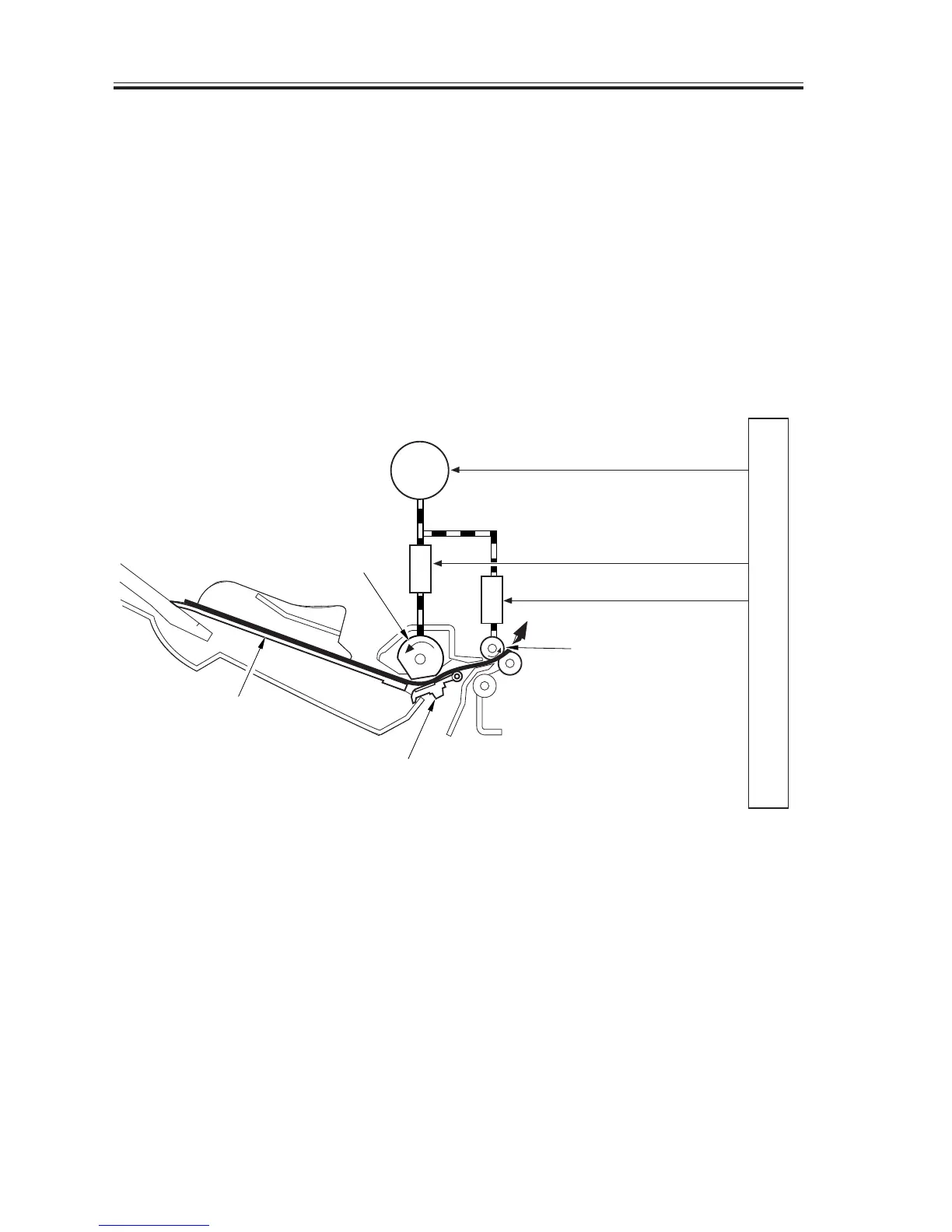

F06-202-01
CL101
M101
(MTRON)
(MFPD)
(RGDRV)
SL101
Main motor drive signal
Manual feed pickup
solenoid drive signal
Registration clutch drive signal
Registration roller
Manual feed pickup roller
Holding plate
Manual feed separation pad
DC controller PCB

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
