COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-27
CHAPTER 6 PICKUP/FEDING SYSTEM

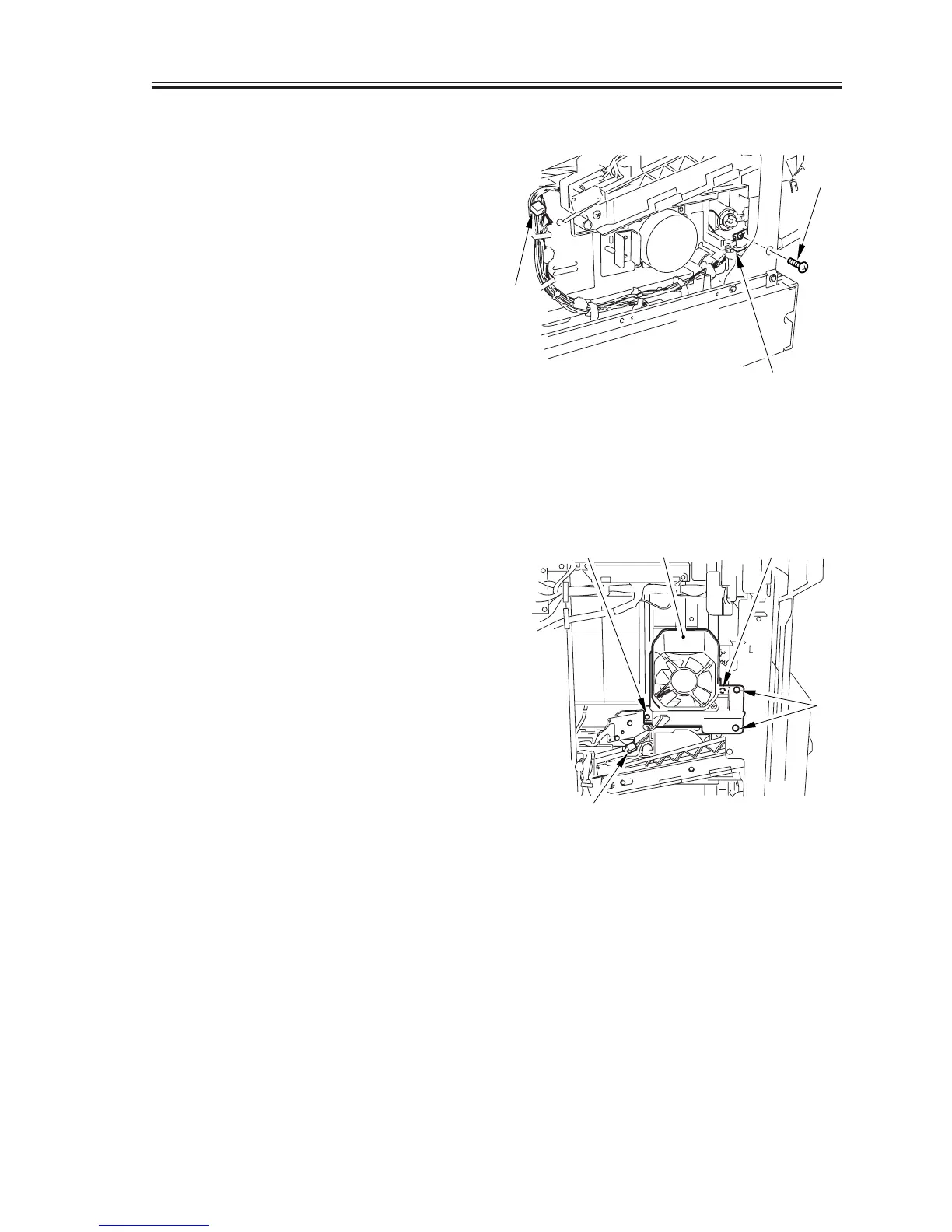

5.2.5 Removing the Multifeeder Pickup Solenoid
1) Remove the rear cover and the left rear
cover.
2) Remove the screw [1], and disconnect
the connector [2].
3) Remove the multifeeder pickup sole-
noid [3].
F06-502-08
5.3 Drive Assembly
5.3.1 Removing the Drive Assembly
1) Remove the fixing assembly (3.1 in
Chapter7).
2) Remove the multifeeder roller (5.2.2 in
Chapter6).
3) Remove the rear cover.
4) Remove the right rear over.
5) Remove the right upper cover.
6) Remove the left rear cover.
7) Remove the left upper cover.
8) Remove the copyboard cover.
9) Remove the cassette rear cover.
10) Disconnect the connector [1], and re-
move the 2 screws [2]; then, detach the
delivery fan assembly [3].
F06-503-01
[3]
[1]
[2]
[1]
[3] [2][2]
[2]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
