CHAPTER 5 IMAGE FORMATION SYSTEM
COPYRIGHT © 22002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
5-8
4 Controlling the Transfer Charging Roller Bias
4.1 Outline
The machine uses a charging roller for charging (direct charging method), and it applies
a DC bias to the transfer charging roller.
The machine’s transfer charging mechanism is controlled for the following:
[1] turning on and off the bias.
[2] controlling the DC bias to a specific voltage/current level.
[3] correcting the voltage level (ATVC control)
The following shows the system used to control the transfer charging mechanism:

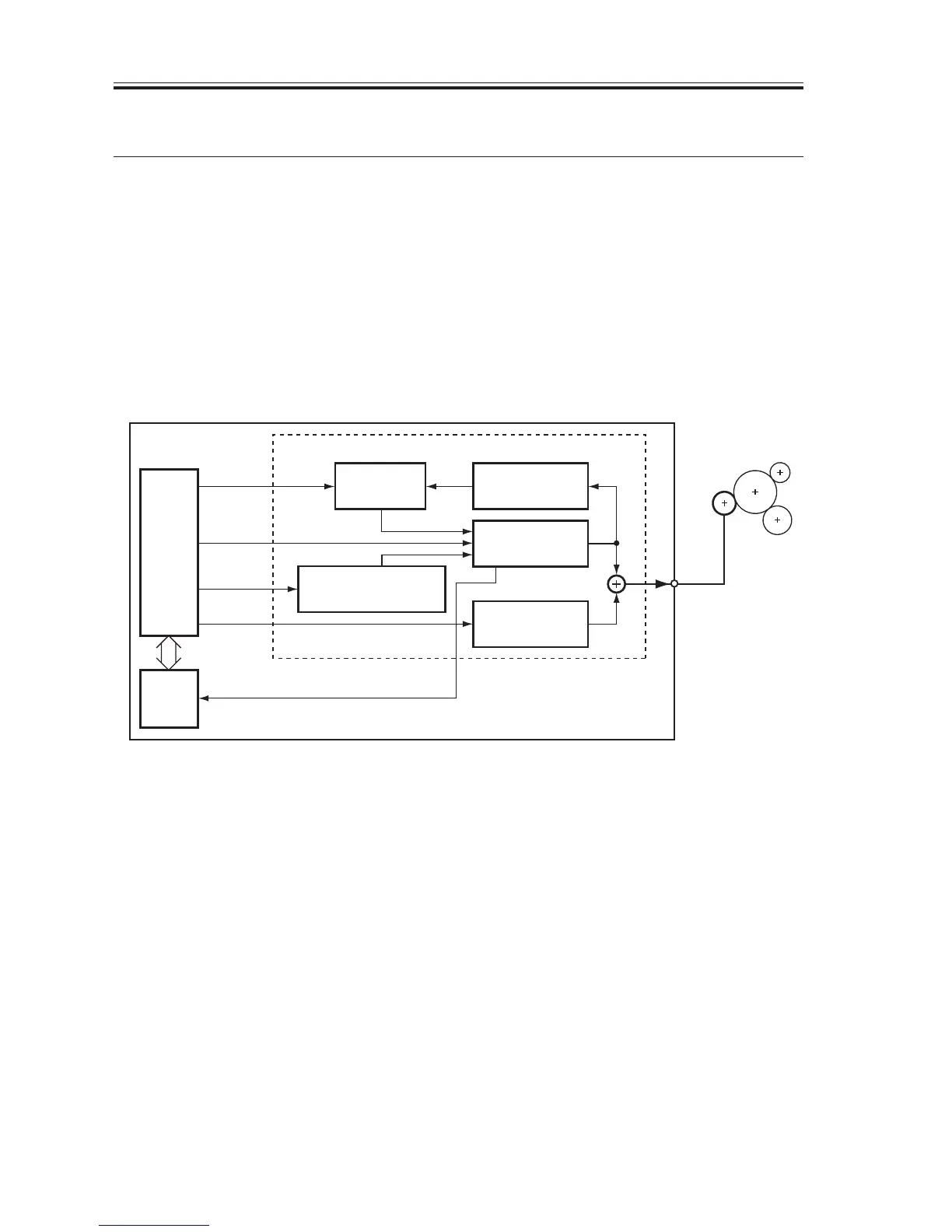

F05-401-01
T403Tr
TRCRNT
TRPWM*
ASIC
CPU
TRPFOT*
TRCHG
TRNFOT*
DC controller PCB
Transfer bias circuit
Comparison
circuit
Constant current/
voltage switch circuit
Positive current
detection circuit
Voltage
detection circuit
Negative voltage
generation circuit
To transfer
charging roller
Superimposition
