Canon IR1600 User Manual

CHAPTER 7 FIXING SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
7-22
3.5 Removing the Fixing Roller/Fixing Heater/Separation Claw
1) Remove the fixing assembly. (See 3.1 of
Chapter 7.)
2) Remove the pressure roller assembly.
(See 3.4 of Chapter 7.)
3) Remove the 2 screws [1] of the fixing
roller assembly; then, detach the fixing
roller [2] and the fixing heater [3].

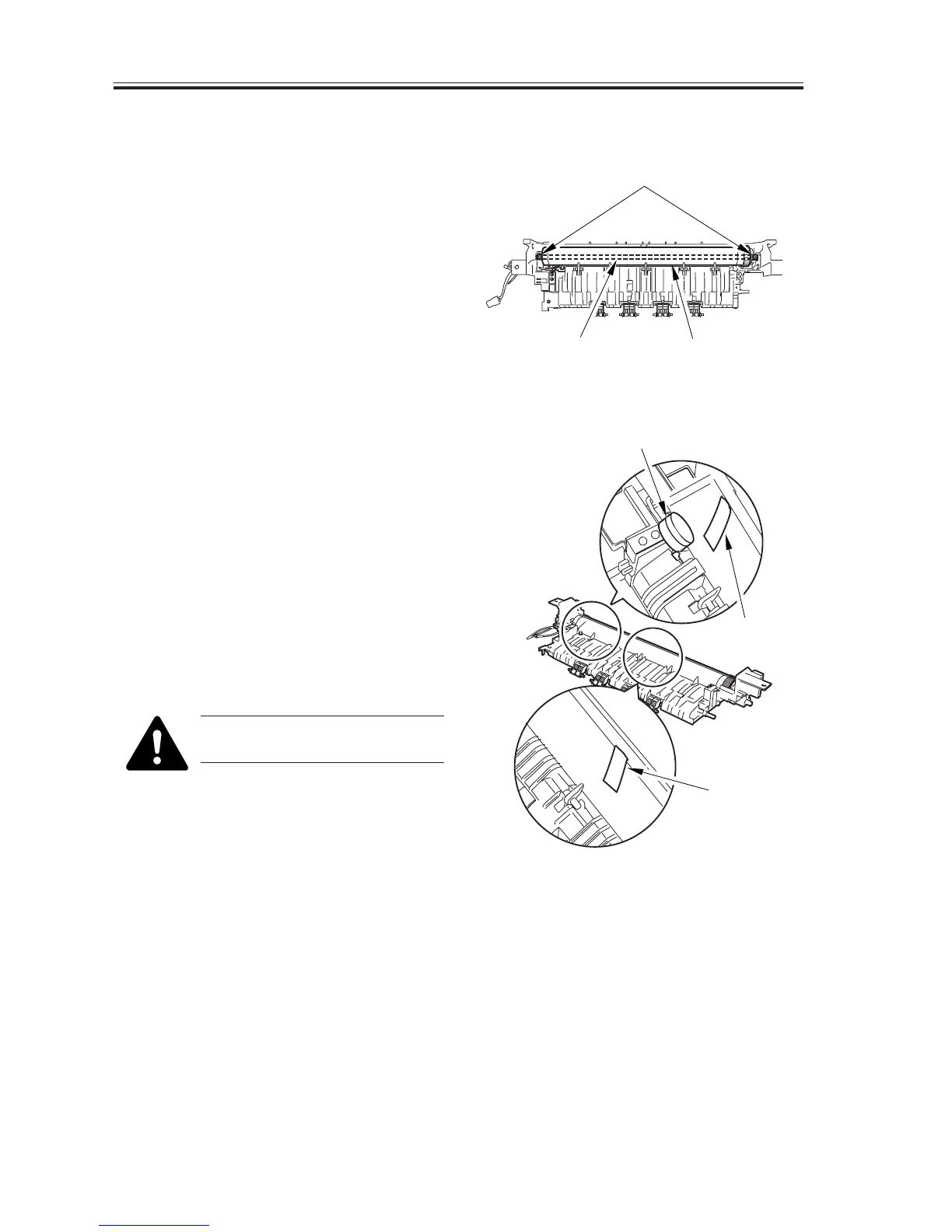

F07-305-01
4) Check the thermistor [4] and the ther-
mal switch [5] for scratches, dirt, and
deformation. If any, replace the fixing
assembly.
Do not clean the thermistor [4]
or the thermal switch [5].
F07-305-02
[3] [2]
[1]
[4]
[4]
[5]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
