CHAPTER 3 IMAGE READING/PROCESSING SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
3-31
[4]
[3]
[4]
[5]

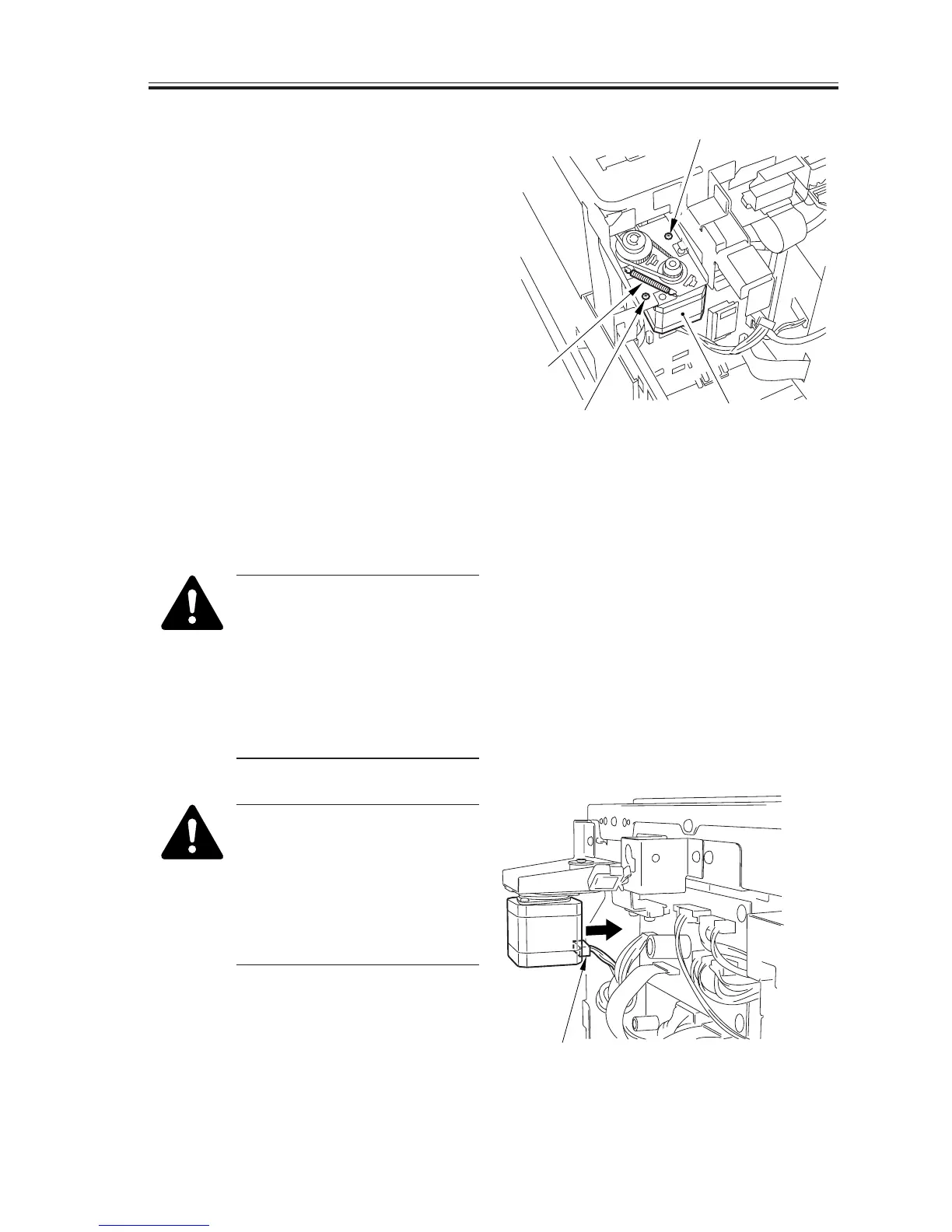

9) Remove the tension spring [3] and the
2 screws [4]; then, detach the reader
motor [5].
F03-503-02
5.3.2 Points to Note When Mounting the Reader Motor
When mounting the reader mo-
tor, be sure to hook the tension
spring on the motor and the
machine’s mounting plate; then,
secure it in place with screws.
Otherwise, the belt will lack
correct tension, leading to mal-
function.
When mounting the reader mo-
tor, check to be sure that the
connector [1] faces the machine;
otherwise, the harness of the
read motor can interfere with
the edge of the plate and suffer
a cut.
F03-503-03
[1]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
