CHAPTER 8 EXTERNALS AND AUXILIARY CONTROL SYSTEM
COPYRIGHT
©
2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
8-1
1 Control Panel
1.1 The machine’s control panel has the following construction
The circuitry of the control panel consists of two PCBs, and is controlled by the ASIC of
the image processor PCB.
The indication on the LCD is in 2 lines of 20 characters each.

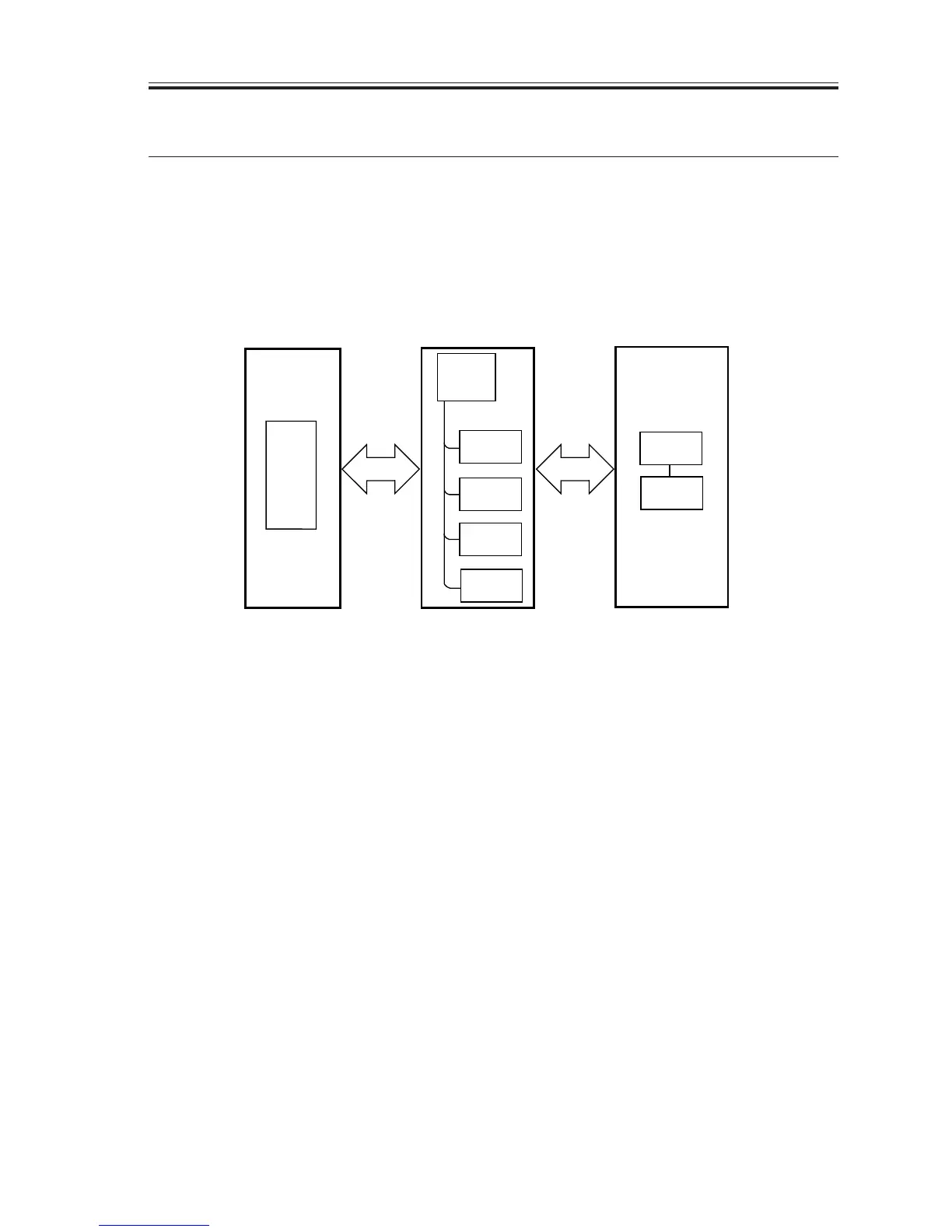

F08-101-01
ASIC
CPU
LED
LCD
VR
LED
Image processor
PCB
Control panel PCB 1
Control panel PCB 2
Key SW
Key SW
