CHAPTER 5 IMAGE FORMATION SYSTEM
COPYRIGHT © 22002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
5-6
3 Controlling the Developing Bias
3.1 Outline
A DC bias and an AC bias are applied to the developing cylinder, and the developing
bias control system has the following functions:
[1] turning on and off the bias.
[2] controlling the developing DC bias to a constant voltage level.
[3] controlling the developing AC bias to a constant voltage level.
[4] controlling the voltage level of the developing bias.

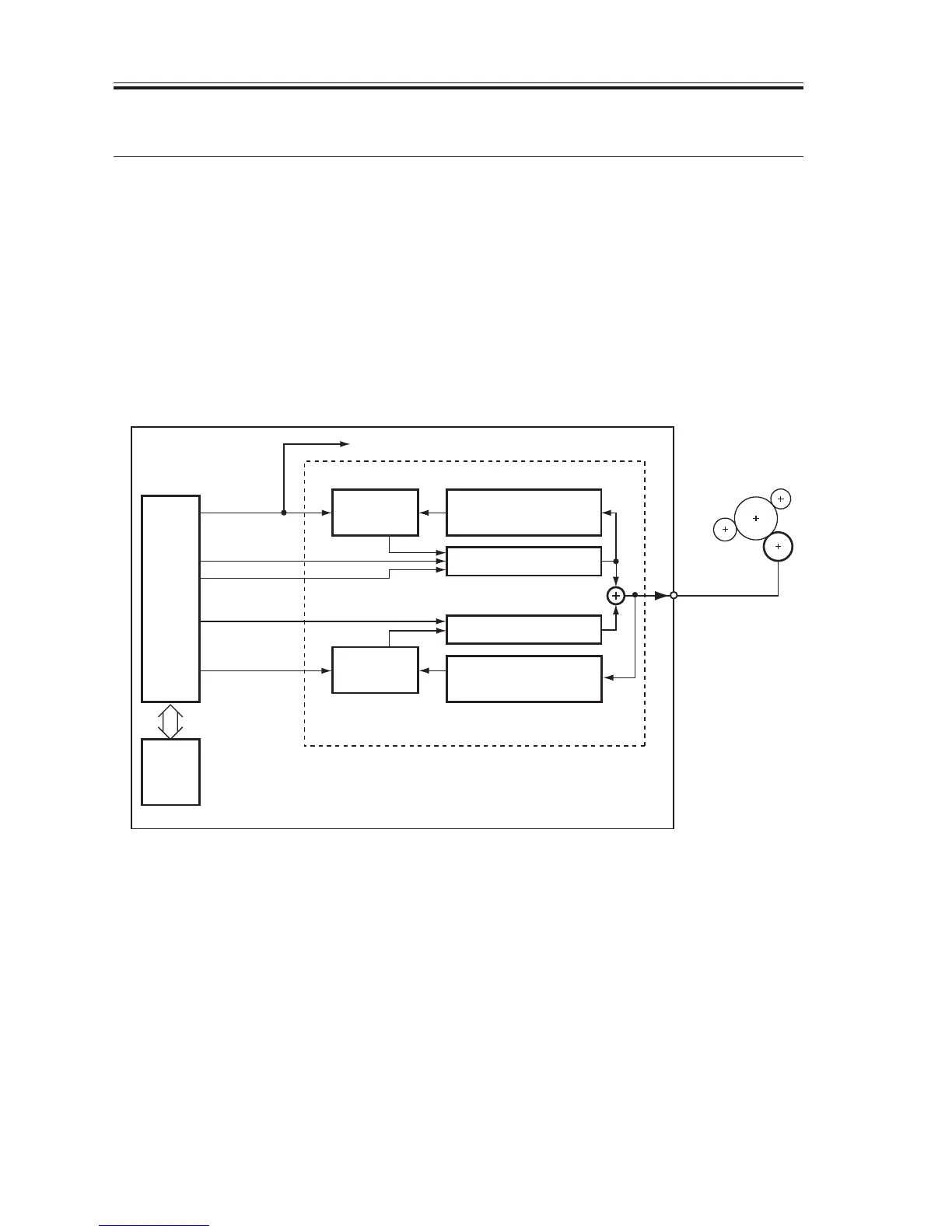

The system used to control the developing bias control mechanism is constructed as fol-
lows:
F05-301-01
TB403/TB404Dv
DVACFOT*
DCPWM*
DVDCFOT*
DC controller PCB
ASIC
CPU
DVDCUP*
DVACON*
To primary bias circuit
Developing bias circuit
Comparison
circuit
Comparison
circuit
Developing DC bias
voltage detection circuit
DC generation circuit
AC generation circuit
Developing AC bias
voltage detection circuit
Superimposition
To developing
cylinder

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
