Canon IR1600 - Removing the Manual Feed Pickup Roller

COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
6-25
CHAPTER 6 PICKUP/FEDING SYSTEM
5.2.2 Removing the Manual feed Pickup Roller
1) Remove the durm unit.
2) Remove the developing assembly (7.2.1
in Chapter5).
3) Remove the multifeeder tray.

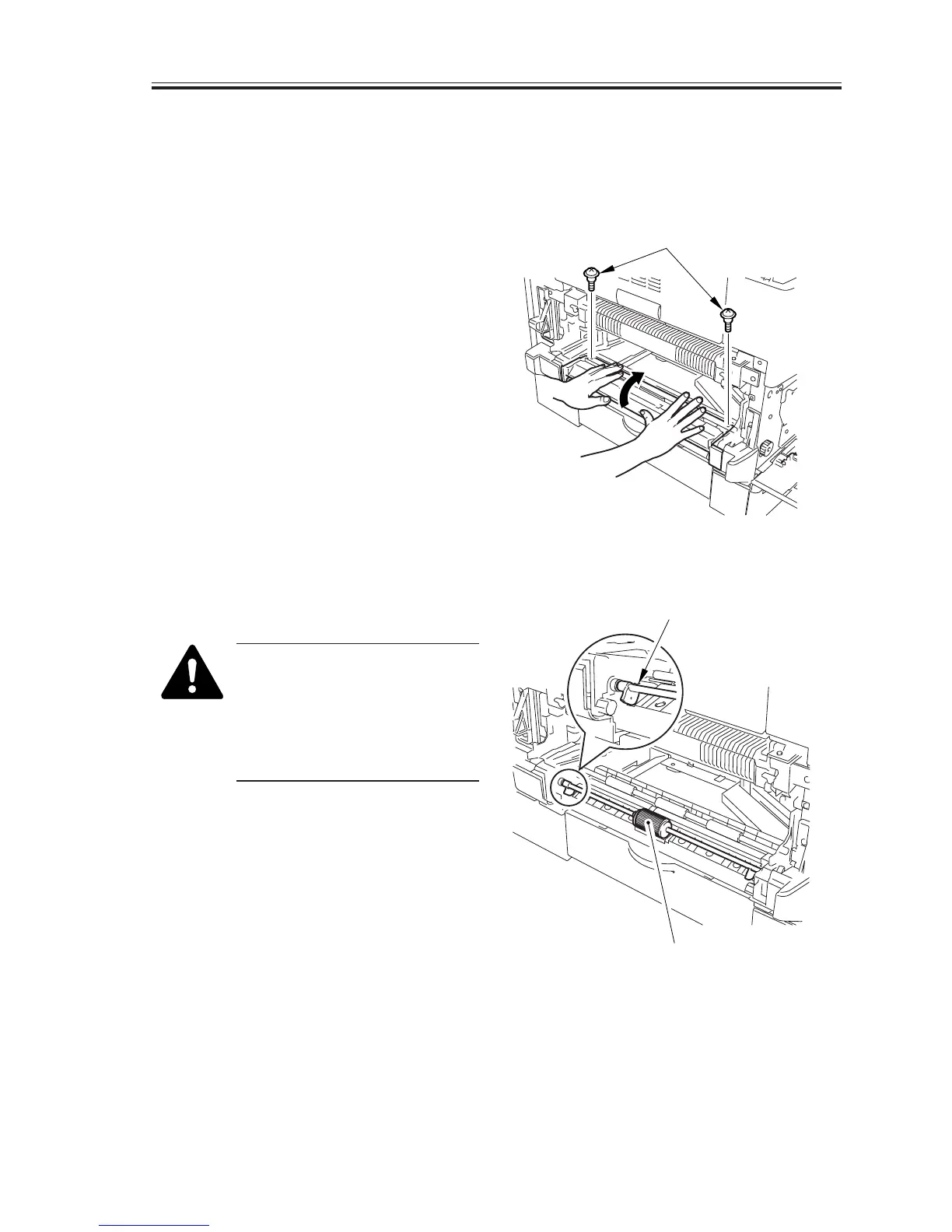

4) Remove the 2 stepped screws [1] using
a screwdriver; then, keeping your hands
as shown, detach the pickup guide as-
sembly [2] by lifting it upward to the
front.
F06-502-03
5) Remove the manual feed pickup roller
[3].
When Mounting
After mounting the manual feed
pickup roller, rotate the manual
feed pickup roller until it stops,
and check to make sure that the
cam [4] is as shown.
F06-502-04
[1]
[3]
[4]
