CHAPTER 3 IMAGE READING/PROCESSING SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
3-9
4.2 Contact Sensor
4.2.1 Outline of the Contact Sensor
The machine uses a contact sensor (CS) for original exposure and original reading.
The CS is a single module consisting of the following, and is used to read images in
lines: 2 sets of LEDs (R, G, B); photo conducting medium used to shine the light of the
LEDs across a single image line of an original; rod lens array used to collected reflected
light by the original; CCD array used to detect reflected light. It reads an image line by
line.

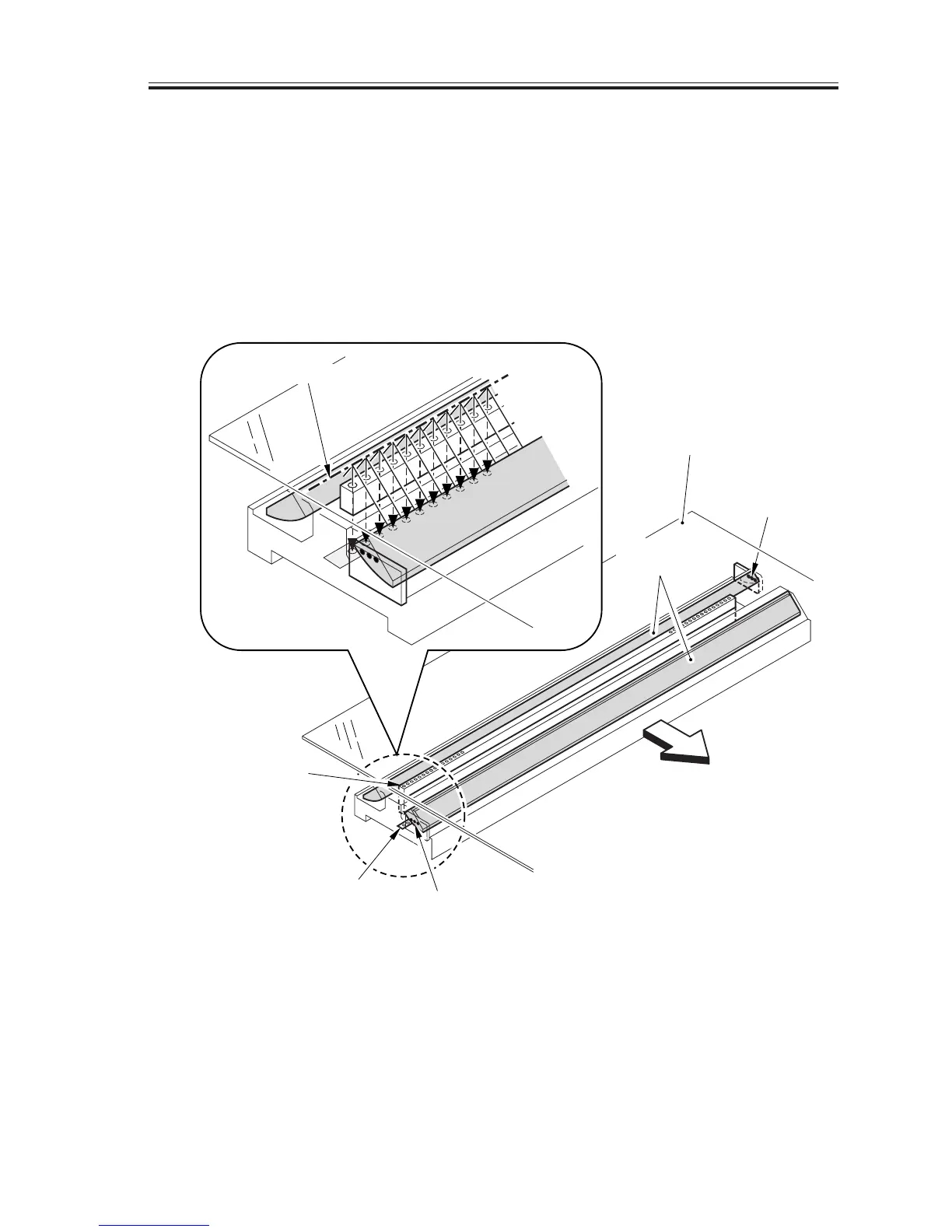

F03-402-01
LED(R/G/B)
LED(R/G/B)
Rod lens array
CCD array
Copyboard glass
Photo conducting
medium
(scanning direction)
Image read line

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
