Canon IR1600 User Manual

CHAPTER 4 LASER EXPOSURE SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
4-11
5.1 Removing the Laser/Scanner Unit
1) Remove the fixing assembly. (3.1 of
Chapter 7)
2) Remove the dust-proof sponge [1].
3) Disconnect the 3 connectors [2].
4) Remove the 4 screws [3], and detach the
laser/scanner assembly [4].

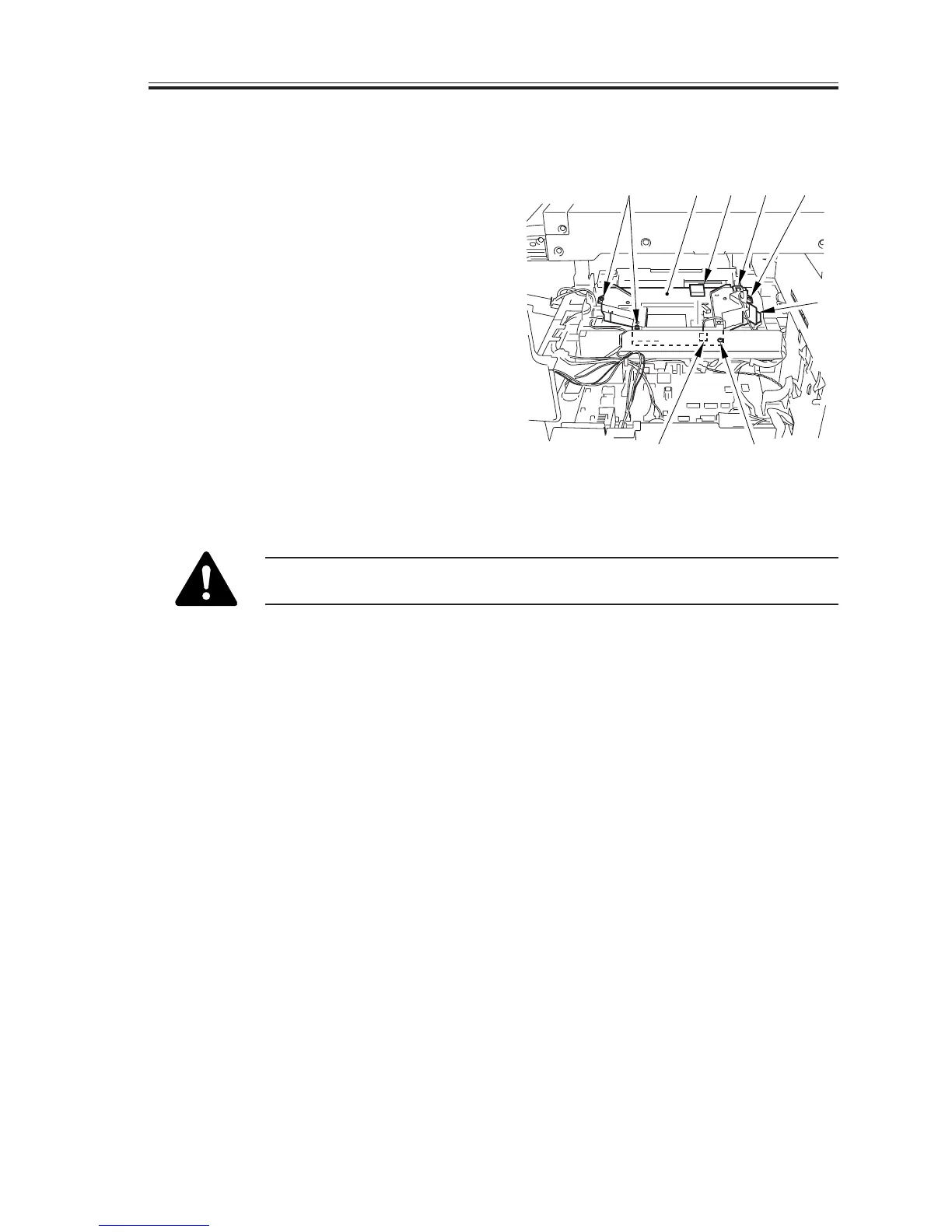

F04-501-01
The inside of heater laser/scanner assembly cannot be adjusted in the field.
Do not disassemble it.
[4][3] [1] [2] [3]
[3]
[2]
[2]
