Canon IR1600 User Manual

CHAPTER 8 EXTERNALS AND AUXILIARY CONTROL SYSTEM
COPYRIGHT © 2002 CANON INC. 2000 CANON iR1600/iR2000 REV.1 JAN. 2002
8-23

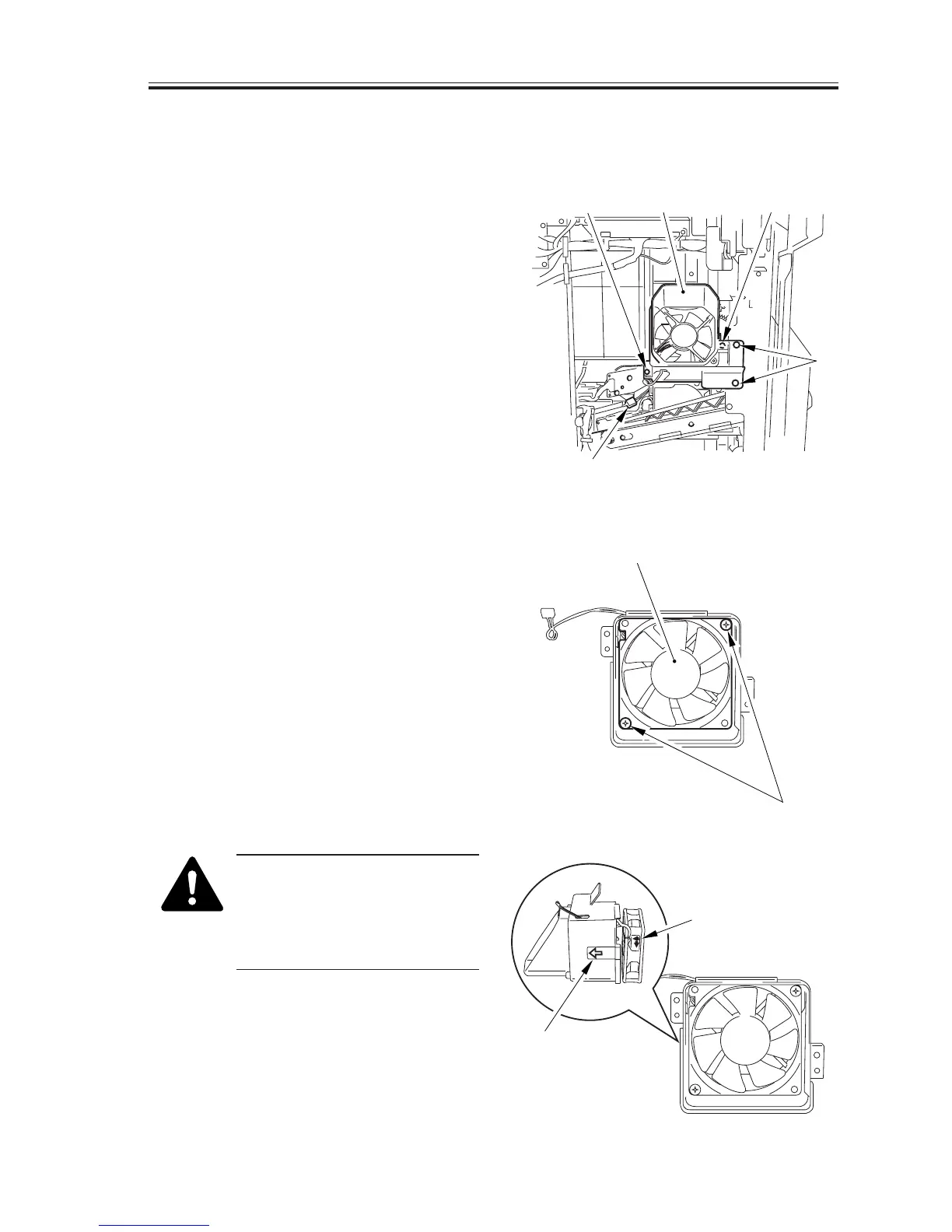

6.4 Fan
6.4.1 Removing the Heat Discharge Fan
1) Remove the rear cover.
2) Remove the printer board unit. (if
equipped with printer functions; see
6.5.11)
3) Disconnect the connector [1].
4) Remove the 4 screws [2], and detach the
heat discharge fan assembly [3].
F08-604-01
5) Remove the 2 screws [4], and detach the
heat discharge fan [5].
F08-604-02
When mounting the heat dis-
charge fan, be sure to match the
arrow [6] indicating the direc-
tion of air current and the arrow
[7] on the hood.
F08-604-03
[1]
[3] [2][2]
[2]
[5]
[4]
[7]
[6]

Canon IR1600 Specifications

General

Print Technology	Laser
Type	Monochrome
Maximum Print Resolution	600 x 600 dpi
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Print Speed	16 ppm
Copy Speed	16 cpm
Scan Resolution	600 x 600 dpi
Operating System Compatibility	Windows
Interface	USB 2.0
