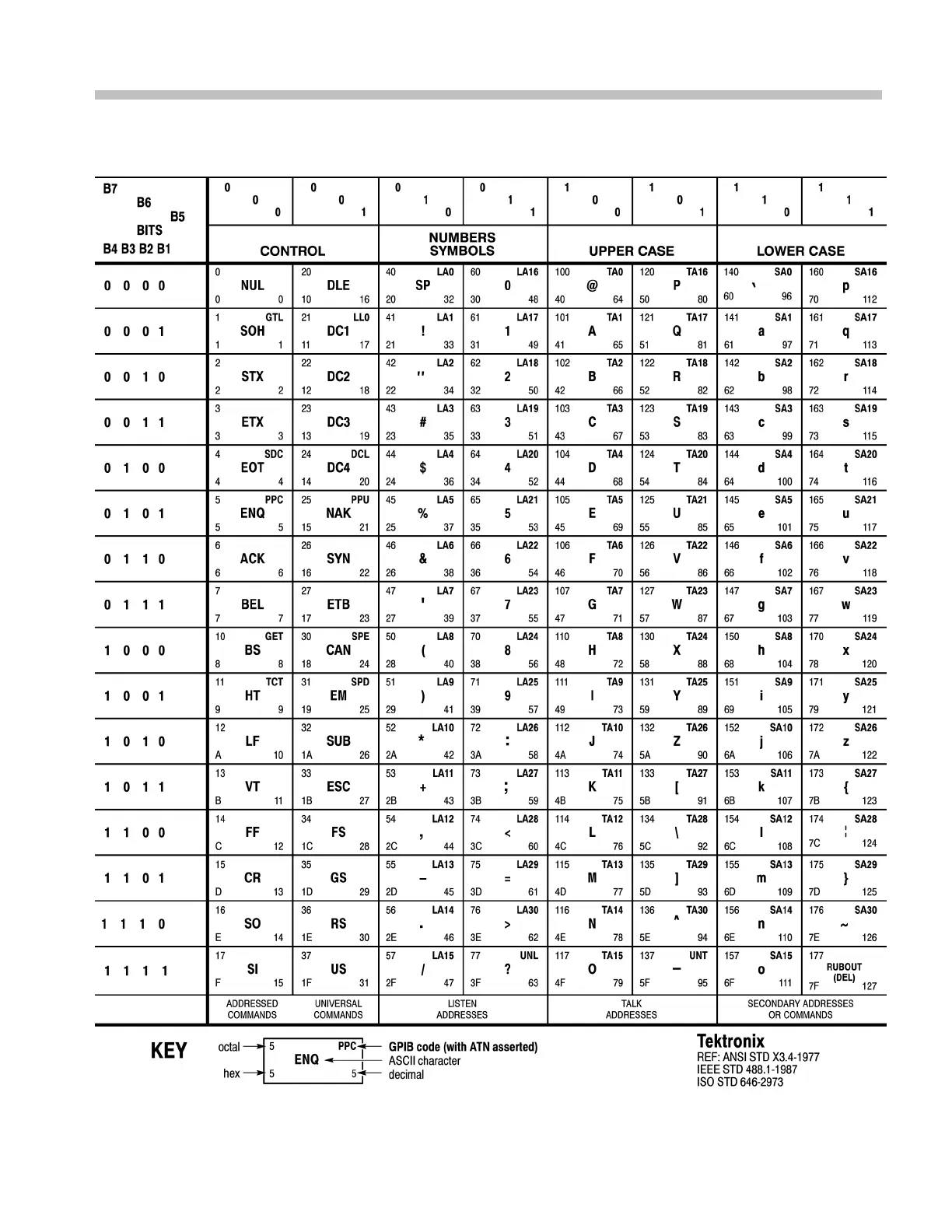

Appendix
A:
Character
Set
DPO7000,
DPO70000/B
and
DSA7000/B
Series
Programmer
Manual
A-1
692
694
Table of Contents
toc
1
Preface
7
Getting Started
9
Setting Up Remote Communications
9
Command Syntax
13
Backus-Naur Form Notation
13
Command and Query Structure
13
Clearing the Instrument
15
Command Entry
16
Constructed Mnemonics
18
Argument Types
19
Command Groups
23
Acquisition Command Group
23
Alias Command Group
24
Calibration Command Group
25
Cursor Command Group
25
Diagnostics Command Group
28
Display Control Command Group
29
E-mail Command Group
31
File System Command Group
33
Hard Copy Command Group
34
Histogram Command Group
35
Horizontal Command Group
36
Limit Test Command Group
39
Low Speed Serial Trigger Command Group
40
Mask Command Group
43
Math Command Group
49
Measurement Command Group
51
Miscellaneous Command Group
55
Save and Recall Command Group
56
Search and Mark Command Group
57
Status and Error Command Group
66
TekLink Command Group
67
Trigger Command Group
68
Vertical Command Group
75
Waveform Transfer Command Group
79
Zoom Command Group
84
Commands Listed in Alphabetical Order
87
ACQuire? (Query Only)
87
ACQuire:INTERPEightbit
87
ACQuire:MODe
88
ACQuire:NUMACq? (Query Only)
89
ACQuire:NUMAVg
90
ACQuire:NUMEnv
90
ACQuire:NUMFRAMESACQuired? (Query Only)
91
ACQuire:NUMSAMples
92
ACQuire:SAMPlingmode
92
ACQuire:STATE
93
ACQuire:STOPAfter
94
ALIas
94
ALIas:CATalog? (Query Only)
95
ALIas:DEFine
95
ALIas:DELEte (No Query Form)
96
ALIas:DELEte:ALL (No Query Form)
97
ALIas:DELEte:NAMe (No Query Form)
97
ALIas:STATE
97
ALLEv? (Query Only)
98
ALLOcate:WAVEform:REF<x>? (Query Only)
98
AUTOSet (No Query Form)
99
AUXIn:BANdwidth
99
AUXIn:COUPling
100
AUXIn:OFFSet
100
AUXIn:PRObe:AUTOZero (No Query Form)
101
AUXIn:PRObe:DEGAUSS (No Query Form)
101
AUXIn:PRObe:DEGAUSS:STATE? (Query Only)
102
AUXIn:PRObe:FORCEDRange
102
AUXIn:PRObe:GAIN? (Query Only)
103
AUXIn:PRObe:ID:SERnumber? (Query Only)
103
AUXIn:PRObe:ID:TYPe? (Query Only)
103
AUXIn:PRObe:INPUTMode
104
AUXIn:PRObe:INPUTMode:AOFFSet
104
AUXIn:PRObe:INPUTMode:BOFFSet
105
AUXIn:PRObe:INPUTMode:CMOFFSet
105
AUXIn:PRObe:INPUTMode:DMOFFSet
106
AUXIn:PRObe:RANge
106
AUXIn:PRObe:RESistance? (Query Only)
107
AUXIn:PRObe:SET
107
AUXIn:PRObe:SIGnal
108
AUXIn:PRObe:TIPtype
109
AUXIn:PRObe:UNIts? (Query Only)
109
AUXIn:PROBEFunc:EXTAtten
109
AUXIn:PROBEFunc:EXTDBatten
110
AUXIn:PROBEFunc:EXTUnits
111
AUXout? (Query Only)
112
AUXout:EDGE
112
AUXout:SOUrce
112
BELl (No Query Form)
113
BUSY? (Query Only)
113
*CAL? (Query Only)
114
CALibrate? (Query Only)
114
CALibrate:CALProbe:CH<x>? (Query Only)
115
CALibrate:INTERNal (No Query Form)
116
CALibrate:INTERNal:STARt (No Query Form)
116
CALibrate:INTERNal:STATus? (Query Only)
116
CALibrate:PRObestate:CH<x>? (Query Only)
117
CALibrate:RESults? (Query Only)
118
CALibrate:RESults:SPC? (Query Only)
118
CH<x>? (Query Only)
119
CH<x>:BANdwidth
119
CH<x>:BANdwidth:ENHanced
120
CH<x>:BANdwidth:ENHanced:APPLYtoall
121
CH<x>:BANdwidth:ENHanced:FORCe
121
CH<x>:BANdwidth:ENHanced:STATE? (Query Only)
122
CH<x>:COUPling
123
CH<x>:DESKew
123
CH<x>:LABel:NAMe
124
CH<x>:LABel:XPOS
124
CH<x>:LABel:YPOS
125
CH<x>:OFFSet
125
CH<x>:POSition
126
CH<x>:PRObe? (Query Only)
127
CH<x>:PRObe:AUTOZero (No Query Form)
128
CH<x>:PRObe:DEGAUSS (No Query Form)
128
CH<x>:PRObe:DEGAUSS:STATE? (Query Only)
128
CH<x>:PRObe:FORCEDRange
129
CH<x>:PRObe:GAIN? (Query Only)
129
CH<x>:PRObe:ID? (Query Only)
130
CH<x>:PRObe:ID:SERnumber? (Query Only)
130
CH<x>:PRObe:ID:TYPe? (Query Only)
130
CH<x>:PRObe:INPUTMode
131
CH<x>:PRObe:INPUTMode:AOFFSet
131
CH<x>:PRObe:INPUTMode:BOFFSet
132
CH<x>:PRObe:INPUTMode:CMOFFSet
132
CH<x>:PRObe:INPUTMode:DMOFFSet
133
CH<x>:PRObe:RANge
133
CH<x>:PRObe:RESistance? (Query Only)
134
CH<x>:PRObe:SET
134
CH<x>:PRObe:SIGnal
135
CH<x>:PRObe:TIPtype
136
CH<x>:PRObe:UNIts? (Query Only)
136
CH<x>:PROBECal? (Query Only)
137
CH<x>:PROBECOntrol
137
CH<x>:PROBEFunc:EXTAtten
138
CH<x>:PROBEFunc:EXTDBatten
139
CH<x>:PROBEFunc:EXTUnits
139
CH<x>:SCAle
140
CH<x>:TERmination
141
*CLS (No Query Form)
142
CMDBatch
142
CURSor?
143
CURSor:FUNCtion
143
CURSor:HBArs? (Query Only)
144
CURSor:HBArs:DELTa? (Query Only)
144
CURSor:HBArs:POSITION<x>
145
CURSor:HBArs:UNIts? (Query Only)
145
CURSor:LINESTyle
146
CURSor:MODe
146
CURSor:SCREEN:STYle
147
CURSor:SCREEN:XPOSITION<x>
147
CURSor:SCREEN:YPOSITION<x>
148
CURSor:SOUrce<x>
148
CURSor:STATE
149
CURSor:VBArs
149
CURSor:VBArs:DELTa? (Query Only)
150
CURSor:VBArs:POSITION<x>
150
CURSor:VBArs:POS<x>
151
CURSor:VBArs:UNIts
152
CURSor:WAVEform
152
CURSor:WAVEform:HDELTA? (Query Only)
153
CURSor:WAVEform:HPOS<x>? (Query Only)
153
CURSor:WAVEform:POSition<x>
154
CURSor:WAVEform:STYle
154
CURSor:WAVEform:UNIts
155
CURSor:WAVEform:VDELTA? (Query Only)
155
CURSor:XY? (Query Only)
155
CURSor:XY:PRODDELta? (Query Only)
156
CURSor:XY:PRODUCT<x>? (Query Only)
156
CURSor:XY:RADIUS<x>? (Query Only)
157
CURSor:XY:RATDELta? (Query Only)
157
CURSor:XY:RATIO<x>? (Query Only)
158
CURSor:XY:RDELta? (Query Only)
158
CURSor:XY:READOUT
159
CURSor:XY:RECTX<x>
159
CURSor:XY:RECTY<x>
160
CURSor:XY:THDELta? (Query Only)
160
CURSor:XY:THETA<x>? (Query Only)
161
CURSor:XY:XDELta? (Query Only)
161
CURSor:XY:YDELta? (Query Only)
162
CURVe
162
CURVENext? (Query Only)
163
CURVEStream
164
DATa
165
DATa:DESTination
165
DATa:ENCdg
166
DATa:FRAMESTARt
168
DATa:FRAMESTOP
169
DATa:SOUrce
169
DATa:STARt
170
DATa:STOP
171
DATE
172
*DDT
172
DELEte:SETUp (No Query Form)
173
DELEte:WAVEform (No Query Form)
173
DESE
174
DIAg:CONTROL:HALT
175
DIAg:CONTROL:LOOP
175
DIAg:EXECUTE (No Query Form)
176
DIAg:FAILURES:CLEAR
177
DIAg:ITEM? (Query Only)
177
DIAg:ITEM:FAILURES? (Query Only)
178
DIAg:ITEM:NAMe? (Query Only)
178
DIAg:ITEM:RESULT? (Query Only)
179
DIAg:ITEM:SUBITEMS? (Query Only)
179
DIAg:LEVEL
180
DIAg:LOOPS? (Query Only)
180
DIAg:NAMe? (Query Only)
181
DIAg:NAMe:AREA? (Query Only)
181
DIAg:NAMe:SUBSYS? (Query Only)
182
DIAg:NAMe:TEST? (Query Only)
182
DIAg:NUMITEMS? (Query Only)
183
DIAg:RESults? (Query Only)
183
DIAg:RESults:VERBose? (Query Only)
184
DIAg:SELect:ALL (No Query Form)
184
DIAg:SELect:AREA
185
DIAg:SELect:LAST
185
DIAg:SELect:SUBSYS
186
DIAg:SELect:TEST
187
DIAg:STATE
187
DIAg:STOP (No Query Form)
188
DISplay? (Query Only)
188
DISplay:CLOCk
189
DISplay:COLOr? (Query Only)
190
DISplay:COLOr:MATHCOLOr
190
DISplay:COLOr:PALEtte:IMAGEView
191
DISplay:COLOr:PALEtte:RECORDView
192
DISplay:COLOr:PALEtte:USEr
192
DISplay:COLOr:PALEtte:USEr:CARet
193
DISplay:COLOr:PALEtte:USEr:CH<x>
194
DISplay:COLOr:PALEtte:USEr:GRAticule
194
DISplay:COLOr:PALEtte:USEr:HIStogram
195
DISplay:COLOr:PALEtte:USEr:MASK
195
DISplay:COLOr:PALEtte:USEr:MASKHighlight
196
DISplay:COLOr:PALEtte:USEr:MATH<x>
196
DISplay:COLOr:PALEtte:USEr:REF<x>
197
DISplay:COLOr:PALEtte:USEr:WAVEform
198
DISplay:COLOr:REFCOLOr
198
DISplay:FILTer
199
DISplay:FORMat
199
DISplay:GRAticule
200
DISplay:INTENSITy? (Query Only)
201
DISplay:INTENSITy:WAVEform:IMAGEView
201
DISplay:INTENSITy:WAVEform:RECORDView
202
DISplay:PERSistence
203
DISplay:PERSistence:RESET (No Query Form)
203
DISplay:SCREENTExt? (Query Only)
204
DISplay:SCREENTExt:LABel<x>? (Query Only)
204
DISplay:SCREENTExt:LABel<x>:FONTCOlor
205
DISplay:SCREENTExt:LABel<x>:FONTNAme
205
DISplay:SCREENTExt:LABel<x>:FONTSIze
206
DISplay:SCREENTExt:LABel<x>:FONTSTyle
206
DISplay:SCREENTExt:LABel<x>:NAMe
206
DISplay:SCREENTExt:LABel<x>:STATE
207
DISplay:SCREENTExt:LABel<x>:XPOS
208
DISplay:SCREENTExt:LABel<x>:YPOS
208
DISplay:SCREENTExt:STATE
209
DISplay:SHOWREmote
209
DISplay:STYle
210
DISplay:TRIGBar
210
DISplay:TRIGT
211
DISplay:VARpersist
212
DISplay:WAVEform
212
EMail (No Query Form)
213
EMail:ATTempts
213
EMail:AUTHLogin
214
EMail:AUTHPassword (No Query Form)
214
EMail:COUNt? (Query Only)
215
EMail:FROm
215
EMail:HOSTwanted
215
EMail:IMAGe
216
EMail:MASK
216
EMail:MAXSize
217
EMail:MEASUrement
217
EMail:NUMEMails
218
EMail:SMTPPort
218
EMail:SMTPServer
219
EMail:STATUS? (Query Only)
219
EMail:TIMEOut
220
EMail:TO
220
EMail:TRIGger
221
EMail:WAVEform
221
*ESE
222
*ESR? (Query Only)
223
EVENT? (Query Only)
223
EVMsg? (Query Only)
224
EVQty? (Query Only)
224
EXPort
225
EXPort:FILEName
225
EXPort:FORMat
226
EXPort:PALEtte
226
EXPort:READOuts
227
EXPort:VIEW
227
FACtory (No Query Form)
228
FASTAcq? (Query Only)
229
FASTAcq:HIACQRATE
229
FASTAcq:STATE
230
FILESystem? (Query Only)
230
FILESystem:COPy (No Query Form)
231
FILESystem:CWD
231
FILESystem:DELEte (No Query Form)
232
FILESystem:DIR? (Query Only)
232
FILESystem:MKDir (No Query Form)
233
FILESystem:PRInt (No Query Form)
233
FILESystem:READFile (No Query Form)
234
FILESystem:REName (No Query Form)
235
FILESystem:RMDir (No Query Form)
236
FILESystem:WRITEFile (No Query Form)
236
HARDCopy
237
HARDCopy:FILEName
238
HARDCopy:LAYout
238
HARDCopy:PALEtte
239
HARDCopy:PORT
239
HARDCopy:READOuts
240
HARDCopy:VIEW
241
HDR
241
HEADer
242
HIStogram? (Query Only)
243
HIStogram:BOX
243
HIStogram:BOXPcnt
244
HIStogram:COUNt (No Query Form)
245
HIStogram:DATa? (Query Only)
245
HIStogram:DISplay
246
HIStogram:FUNCtion
247
HIStogram:MODe
248
HIStogram:SIZe
248
HIStogram:SOUrce
249
HIStogram:STATE
250
HORizontal? (Query Only)
250
HORizontal:ACQDURATION? (Query Only)
251
HORizontal:ACQLENGTH? (Query Only)
251
HORizontal:DIVisions? (Query Only)
251
HORizontal:FASTframe? (Query Only)
252
HORizontal:FASTframe:COUNt
252
HORizontal:FASTframe:MAXFRames? (Query Only)
253
HORizontal:FASTframe:MULtipleframes:FRAMESTart:<wfm>
253
HORizontal:FASTframe:MULtipleframes:MODe
254
HORizontal:FASTframe:MULtipleframes:NUMFRames:<wfm>
255
HORizontal:FASTframe:REF:FRAme
255
HORizontal:FASTframe:REF:SOUrce
256
HORizontal:FASTframe:SELECTED:CH<x>
257
HORizontal:FASTframe:SELECTED:MATH<x>
257
HORizontal:FASTframe:SELECTED:REF<x>
257
HORizontal:FASTframe:SELECTED:SOUrce
258
HORizontal:FASTframe:SEQuence
259
HORizontal:FASTframe:STATE
259
HORizontal:FASTframe:SUMFrame
260
HORizontal:FASTframe:TIMEStamp:ALL:<wfm>? (Query Only)
260
HORizontal:FASTframe:TIMEStamp:BETWeen:<wfm>? (Query Only)
261
HORizontal:FASTframe:TIMEStamp:DELTa:<wfm>? (Query Only)
262
HORizontal:FASTframe:TIMEStamp:FRAMe:<wfm>? (Query Only)
262
HORizontal:FASTframe:TIMEStamp:REF? (Query Only)
263
HORizontal:FASTframe:TIMEStamp:SELECTED:<wfm>? (Query Only)
263
HORizontal:FASTframe:TRACk
264
HORizontal:FASTframe:XZEro:ALL:CH<x>? (Query Only)
265
HORizontal:FASTframe:XZEro:ALL:REF<x>? (Query Only)
265
HORizontal:FASTframe:XZEro:FRAme:CH<x>? (Query Only)
266
HORizontal:FASTframe:XZEro:FRAme:REF<x>? (Query Only)
266
HORizontal:FASTframe:XZEro:REF? (Query Only)
267
HORizontal:FASTframe:XZEro:SELECTED:CH<x>? (Query Only)
267
HORizontal:FASTframe:XZEro:SELECTED:REF<x>? (Query Only)
267
HORizontal:MAIn? (Query Only)
268
HORizontal[:MAIn]:DELay:MODe
268
HORizontal[:MAIn]:DELay:POSition
269
HORizontal[:MAIn]:DELay:TIMe
269
HORizontal:MAIn:INTERPRatio? (Query Only)
270
HORizontal[:MAIn]:POSition
270
HORizontal:MAIn:UNIts
271
HORizontal:MAIn:UNIts:STRing
271
HORizontal:MODE
272
HORizontal:MODE:AUTO:LIMITrecordlen
273
HORizontal:MODE:RECOrdlength
273
HORizontal:MODE:SAMPLERate
274
HORizontal:MODE:SCAle
274
HORizontal:ROLL
275
HORizontal:TIMEStamp:CH<x>? (Query Only)
275
HORizontal:TIMEStamp:REF<x>? (Query Only)
275
ID? (Query Only)
276
*IDN? (Query Only)
276
LIMit? (Query Only)
277
LIMit:BEEP
277
LIMit:COMpare (No Query Form)
278
LIMit:COMpare:CH<x>
278
LIMit:COMpare:MATH<x>
279
LIMit:COMpare:REF<x>
279
LIMit:EMail
280
LIMit:HARDCopy
281
LIMit:HIGHLIGHTHits
282
LIMit:HIGHLIGHTHits:RESet (No Query Form)
282
LIMit:LOCk
283
LIMit:LOG
283
LIMit:SAVEWFM
284
LIMit:SAVEWFM:FILEName
285
LIMit:SRQ
285
LIMit:STATE
286
LIMit:STATus? (Query Only)
286
LIMit:STOPOnviolation
287
LIMit:TEMPlate:DESTination
287
LIMit:TEMPlate:SOUrce
288
LIMit:TEMPlate:STORe (No Query Form)
289
LIMit:TEMPlate:TOLerance:HORizontal
289
LIMit:TEMPlate:TOLerance:VERTical
290
LOCk
290
*LRN? (Query Only)
291
MARK
292
MARK:CREATE (No Query Form)
292
MARK:DELEte (No Query Form)
293
MARK:FREE? (Query Only)
293
MARK:SELected:END? (Query Only)
294
MARK:SELected:FOCUS? (Query Only)
294
MARK:SELected:LABel
294
MARK:SELected:MARKSINCOLumn? (Query Only)
295
MARK:SELected:OWNer? (Query Only)
295
MARK:SELected:SOURCE? (Query Only)
295
MARK:SELected:STARt? (Query Only)
296
MARK:SELected:STATe
296
MARK:SELected:ZOOm:POSition? (Query Only)
297
MARK:SELected:ZOOm:SCAle? (Query Only)
297
MARK:TOTal? (Query Only)
297
MASK? (Query Only)
298
MASK:AUTOAdjust
298
MASK:AUTOAdjust:HDELTA
299
MASK:AUTOAdjust:VDELTA
299
MASK:AUTOSet:AUTOAdjust
300
MASK:AUTOSet:HPOS
300
MASK:AUTOSet:HSCAle
301
MASK:AUTOSet:MODe
302
MASK:AUTOSet:OFFSETAdj
302
MASK:AUTOSet:STANdard
303
MASK:AUTOSet:TRIGger
309
MASK:AUTOSet:USER:ONE
309
MASK:AUTOSet:USER:TYPe
310
MASK:AUTOSet:USER:ZERo
310
MASK:AUTOSet:VPOS
311
MASK:AUTOSet:VSCAle
311
MASK:COPy:USER (No Query Form)
312
MASK:COUNt (No Query Form)
312
MASK:COUNt:FAILURES? (Query Only)
313
MASK:COUNt:HITS? (Query Only)
313
MASK:COUNt:SEG<m>:HITS? (Query Only)
313
MASK:COUNt:STATE
314
MASK:COUNt:TESTS? (Query Only)
314
MASK:COUNt:TOTal? (Query Only)
315
MASK:COUNt:VIOLATIONS? (Query Only)
315
MASK:COUNt:WAVEFORMS? (Query Only)
316
MASK:DISplay
316
MASK:FILTer
317
MASK:HIGHLIGHTHits
317
MASK:INVert
318
MASK:LOCk
318
MASK:MARgin:PERCent
319
MASK:MARgin:STATE
319
MASK:MASKPRE:AMPlitude
320
MASK:MASKPRE:HSCAle
320
MASK:MASKPRE:HTRIGPOS
321
MASK:MASKPRE:PATTERNBITS
322
MASK:MASKPRE:PRESAMPBITS
322
MASK:MASKPRE:RECOrdlength
323
MASK:MASKPRE:TRIGTOSAMP
323
MASK:MASKPRE:VOFFSet
324
MASK:MASKPRE:VPOS
324
MASK:MASKPRE:VSCAle
325
MASK:MASKPRE:WIDth
326
MASK:POLarity
326
MASK:SEG<m> (No Query Form)
327
MASK:SEG<m>:NR_Pt? (Query Only)
327
MASK:SEG<m>:POINTS
328
MASK:SOUrce
328
MASK:STANdard
329
MASK:STOPOnviolation
336
MASK:TESt:AUX:COMPLetion
336
MASK:TESt:AUX:FAILure
337
MASK:TESt:BEEP:COMPLetion
337
MASK:TESt:BEEP:FAILure
338
MASK:TESt:DELay
338
MASK:TESt:HARDCopy
339
MASK:TESt:LOG:FAILure
340
MASK:TESt:REPeat
340
MASK:TESt:SAMple
341
MASK:TESt:SAMple:THReshold
341
MASK:TESt:SAVEWFM
342
MASK:TESt:SAVEWFM:FILEName
343
MASK:TESt:SRQ:COMPLetion
343
MASK:TESt:SRQ:FAILure
344
MASK:TESt:STATE
344
MASK:TESt:STATUS? (Query Only)
345
MASK:TESt:STOP:FAILure
345
MASK:TESt:THReshold
346
MASK:TESt:WAVEform
346
MASK:USER:AMPlitude
347
MASK:USER:BITRate
347
MASK:USER:HSCAle
348
MASK:USER:HTRIGPOS
348
MASK:USER:LABel
349
MASK:USER:PATTERNBITS
350
MASK:USER:PRESAMPBITS
350
MASK:USER:RECOrdlength
351
MASK:USER:SEG<m> (No Query Form)
351
MASK:USER:SEG<m>:NR_Pt? (Query Only)
352
MASK:USER:SEG<m>:POINTS
352
MASK:USER:TRIGTOSAMP
353
MASK:USER:VOFFSet
353
MASK:USER:VPOS
354
MASK:USER:VSCAle
354
MASK:USER:WIDth
355
MATHArbflt<x>:FILepath
356
MATHArbflt<x>:READFile (No Query Form)
356
MATHVAR? (Query Only)
356
MATHVAR:VAR<x>
357
MATH<x>? (Query Only)
358
MATH<x>:DEFine
358
MATH<x>:FILTer:MODe
359
MATH<x>:FILTer:RISetime
360
MATH<x>:LABel:NAMe
360
MATH<x>:LABel:XPOS
361
MATH<x>:LABel:YPOS
361
MATH<x>:NUMAVg
362
MATH<x>:SPECTral? (Query Only)
362
MATH<x>:SPECTral:CENTER
363
MATH<x>:SPECTral:GATEPOS
363
MATH<x>:SPECTral:GATEWIDTH
364
MATH<x>:SPECTral:LOCk
365
MATH<x>:SPECTral:MAG
366
MATH<x>:SPECTral:PHASE
366
MATH<x>:SPECTral:REFLevel
367
MATH<x>:SPECTral:REFLEVELOffset
367
MATH<x>:SPECTral:RESBw
368
MATH<x>:SPECTral:SPAN
369
MATH<x>:SPECTral:SUPPress
370
MATH<x>:SPECTral:UNWRap
370
MATH<x>:SPECTral:WINdow
371
MATH<x>:UNITString
372
MATH<x>:VERTical:POSition
372
MATH<x>:VERTical:SCAle
374
MEASUrement? (Query Only)
375
MEASUrement:ANNOTation:IMMEDSTAte
375
MEASUrement:ANNOTation:NUMX? (Query Only)
376
MEASUrement:ANNOTation:NUMY? (Query Only)
376
MEASUrement:ANNOTation:STATE
377
MEASUrement:ANNOTation:TYPe
377
MEASUrement:ANNOTation:X<x>? (Query Only)
378
MEASUrement:ANNOTation:Y<x>? (Query Only)
378
MEASUrement:GATing
378
MEASUrement:IMMed? (Query Only)
379
MEASUrement:IMMed:DELay? (Query Only)
380
MEASUrement:IMMed:DELay:DIREction
380
MEASUrement:IMMed:DELay:EDGE[1]
381
MEASUrement:IMMed:DELay:EDGE2
381
MEASUrement:IMMed:METHod
382
MEASUrement:IMMed:NOISe
383
MEASUrement:IMMed:REFLevel? (Query Only)
383
MEASUrement:IMMed:REFLevel:ABSolute:HIGH
384
MEASUrement:IMMed:REFLevel:ABSolute:LOW
384
MEASUrement:IMMed:REFLevel:ABSolute:MID<x>
385
MEASUrement:IMMed:REFLevel:METHod
386
MEASUrement:IMMed:REFLevel:PERCent:HIGH
386
MEASUrement:IMMed:REFLevel:PERCent:LOW
387
MEASUrement:IMMed:REFLevel:PERCent:MID<x>
388
MEASUrement:IMMed:SOUrce<x>
388
MEASUrement:IMMed:SOUrce<x>:SIGType
389
MEASUrement:IMMed:TYPe
390
MEASUrement:IMMed:UNIts? (Query Only)
394
MEASUrement:IMMed:VALue? (Query Only)
395
MEASUrement:MEAS<x>? (Query Only)
395
MEASUrement:MEAS<x>:COUNt? (Query Only)
396
MEASUrement:MEAS<x>:DELay? (Query Only)
396
MEASUrement:MEAS<x>:DELay:DIREction
396
MEASUrement:MEAS<x>:DELay:EDGE<x>
397
MEASUrement:MEAS<x>:MAXimum? (Query Only)
398
MEASUrement:MEAS<x>:MEAN? (Query Only)
398
MEASUrement:MEAS<x>:METHod
399
MEASUrement:MEAS<x>:MINImum? (Query Only)
399
MEASUrement:MEAS<x>:NOISe
399
MEASUrement:MEAS<x>:REFLevel? (Query Only)
400
MEASUrement:MEAS<x>:REFLevel:ABSolute:HIGH
401
MEASUrement:MEAS<x>:REFLevel:ABSolute:LOW
401
MEASUrement:MEAS<x>:REFLevel:ABSolute:MID<x>
402
MEASUrement:MEAS<x>:REFLevel:METHod
402
MEASUrement:MEAS<x>:REFLevel:PERCent:HIGH
403
MEASUrement:MEAS<x>:REFLevel:PERCent:LOW
404
MEASUrement:MEAS<x>:REFLevel:PERCent:MID<x>
404
MEASUrement:MEAS<x>:SOUrce<x>
405
MEASUrement:MEAS<x>:SOUrce<x>:SIGType
406
MEASUrement:MEAS<x>:STATE
407
MEASUrement:MEAS<x>:STDdev? (Query Only)
407
MEASUrement:MEAS<x>:TYPe
408
MEASUrement:MEAS<x>:UNIts? (Query Only)
412
MEASUrement:MEAS<x>:VALue? (Query Only)
413
MEASUrement:METHod
413
MEASUrement:NOISe
414
MEASUrement:REFLevel:ABSolute:HIGH
415
MEASUrement:REFLevel:ABSolute:LOW
415
MEASUrement:REFLevel:ABSolute:MID<x>
416
MEASUrement:REFLevel:METHod
417
MEASUrement:REFLevel:PERCent:HIGH
418
MEASUrement:REFLevel:PERCent:LOW
418
MEASUrement:REFLevel:PERCent:MID<x>
419
MEASUrement:SOUrce<x>:SIGType
420
MEASUrement:STATIstics:COUNt (No Query Form)
421
MEASUrement:STATIstics:MODe
421
MEASUrement:STATIstics:WEIghting
422
NEWpass (No Query Form)
422
*OPC
423
*OPT? (Query Only)
424
PASSWord (No Query Form)
424
*PSC
425
*PUD
425
*RCL (No Query Form)
426
RECAll:MASK (No Query Form)
426
RECAll:SETUp (No Query Form)
427
RECAll:SETUp:DESKew
428
RECAll:WAVEform (No Query Form)
428
REF<x>:HORizontal:POSition
429
REF<x>:LABel? (Query Only)
430
REF<x>:LABel:NAMe
430
REF<x>:LABel:XPOS
431
REF<x>:LABel:YPOS
431
REF<x>:VERTical:POSition
432
REF<x>:VERTical:SCAle
433
REM (No Query Form)
434
ROSc:SOUrce
434
ROSc:STATE? (Query Only)
435
ROSc:TRACking
435
*RST (No Query Form)
436
*SAV (No Query Form)
437
SAVe:MASK (No Query Form)
437
SAVe:SETUp (No Query Form)
438
SAVe:WAVEform (No Query Form)
439
SAVe:WAVEform:FILEFormat
439
*SDS (No Query Form)
441
SEARCH:SEARCH<x>
441
SEARCH:SEARCH<x>:COPy (No Query Form)
442
SEARCH:SEARCH<x>:STATE
442
SEARCH:SEARCH<x>:TOTAL? (Query Only)
443
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:AUTOBitrate
443
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:AUTOReflevel
443
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:BITRate
444
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:CSActive
445
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:CSLevel
445
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:CSMode
446
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:CSSource
446
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:DATASource
447
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:HYSterisis
447
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:MARgin
448
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:MAXCas
448
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:MINCas
449
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:REFLevel:DATA:HIGH
449
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:REFLevel:DATA:LOW
450
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:REFLevel:DATA:MID
450
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:REFLevel:STROBE:HIGH
451
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:REFLevel:STROBE:LOW
452
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:REFLevel:STROBE:MID
452
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:STANdard
453
SEARCH:SEARCH<x>:TRIGger:A:DDRMemory:STROBEsource
453
SEARCH:SEARCH<x>:TRIGger:A:EDGE:SLOpe:CH<x>
454
SEARCH:SEARCH<x>:TRIGger:A:EDGE:SLOpe:MATH<x>
455
SEARCH:SEARCH<x>:TRIGger:A:EDGE:SLOpe:REF<x>
455
SEARCH:SEARCH<x>:TRIGger:A:EDGE:SOUrce
456
SEARCH:SEARCH<x>:TRIGger:A:GLItch:POLarity:CH<x>
456
SEARCH:SEARCH<x>:TRIGger:A:GLItch:POLarity:MATH<x>
457
SEARCH:SEARCH<x>:TRIGger:A:GLItch:POLarity:REF<x>
457
SEARCH:SEARCH<x>:TRIGger:A:GLItch:TRIGIF
458
SEARCH:SEARCH<x>:TRIGger:A:GLItch:WIDth
459
SEARCH:SEARCH<x>:TRIGger:A:LEVel:CH<x>
459
SEARCH:SEARCH<x>:TRIGger:A:LEVel:MATH<x>
460
SEARCH:SEARCH<x>:TRIGger:A:LEVel:REF<x>
460
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:FUNCtion
461
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:INPut:CH<x>
461
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:INPut:MATH<x>
462
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:INPut:REF<x>
462
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:THReshold:CH<x>
463
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:THReshold:MATH<x>
463
SEARCH:SEARCH<x>:TRIGger:A:LOGIc:THReshold:REF<x>
464
SEARCH:SEARCH<x>:TRIGger:A:PATtern:WHEn
464
SEARCH:SEARCH<x>:TRIGger:A:PATtern:WHEn:LESSLimit
465
SEARCH:SEARCH<x>:TRIGger:A:PATtern:WHEn:MORELimit
466
SEARCH:SEARCH<x>:TRIGger:A:PULse:SOUrce
466
SEARCH:SEARCH<x>:TRIGger:A:RUNT:POLarity:CH<x>
467
SEARCH:SEARCH<x>:TRIGger:A:RUNT:POLarity:MATH<x>
468
SEARCH:SEARCH<x>:TRIGger:A:RUNT:POLarity:REF<x>
468
SEARCH:SEARCH<x>:TRIGger:A:RUNT:THReshold:HIGH:CH<x>
469
SEARCH:SEARCH<x>:TRIGger:A:RUNT:THReshold:HIGH:MATH<x>
469
SEARCH:SEARCH<x>:TRIGger:A:RUNT:THReshold:HIGH:REF<x>
470
SEARCH:SEARCH<x>:TRIGger:A:RUNT:THReshold:LOW:CH<x>
470
SEARCH:SEARCH<x>:TRIGger:A:RUNT:THReshold:LOW:MATH<x>
471
SEARCH:SEARCH<x>:TRIGger:A:RUNT:THReshold:LOW:REF<x>
471
SEARCH:SEARCH<x>:TRIGger:A:RUNT:WHEn
472
SEARCH:SEARCH<x>:TRIGger:A:RUNT:WIDth
473
SEARCH:SEARCH<x>:TRIGger:A:SETHold:CLOCk:EDGE
473
SEARCH:SEARCH<x>:TRIGger:A:SETHold:CLOCk:SOUrce
474
SEARCH:SEARCH<x>:TRIGger:A:SETHold:CLOCk:THReshold:CH<x>
474
SEARCH:SEARCH<x>:TRIGger:A:SETHold:CLOCk:THReshold:MATH<x>
475
SEARCH:SEARCH<x>:TRIGger:A:SETHold:CLOCk:THReshold:REF<x>
475
SEARCH:SEARCH<x>:TRIGger:A:SETHold:DATa:SOUrce
476
SEARCH:SEARCH<x>:TRIGger:A:SETHold:DATa:THReshold:CH<x>
477
SEARCH:SEARCH<x>:TRIGger:A:SETHold:DATa:THReshold:MATH<x>
477
SEARCH:SEARCH<x>:TRIGger:A:SETHold:DATa:THReshold:REF<x>
478
SEARCH:SEARCH<x>:TRIGger:A:SETHold:HOLDTime
478
SEARCH:SEARCH<x>:TRIGger:A:SETHold:SETTime
479
SEARCH:SEARCH<x>:TRIGger:A:STATE:CLOCk:EDGE
479
SEARCH:SEARCH<x>:TRIGger:A:STATE:CLOCk:SOUrce
480
SEARCH:SEARCH<x>:TRIGger:A:STATE:WHEn
480
SEARCH:SEARCH<x>:TRIGger:A:TIMEOut:POLarity:CH<x>
481
SEARCH:SEARCH<x>:TRIGger:A:TIMEOut:POLarity:MATH<x>
481
SEARCH:SEARCH<x>:TRIGger:A:TIMEOut:POLarity:REF<x>
482
SEARCH:SEARCH<x>:TRIGger:A:TIMEOut:TIMe
483
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:DELTATime
483
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:POLarity:CH<x>
484
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:POLarity:MATH<x>
484
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:POLarity:REF<x>
485
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:THReshold:HIGH:CH<x>
486
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:THReshold:HIGH:MATH<x>
486
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:THReshold:HIGH:REF<x>
487
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:THReshold:LOW:CH<x>
487
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:THReshold:LOW:MATH<x>
488
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:THReshold:LOW:REF<x>
488
SEARCH:SEARCH<x>:TRIGger:A:TRANsition:WHEn
489
SEARCH:SEARCH<x>:TRIGger:A:TYPe
489
SEARCH:SEARCH<x>:TRIGger:A:WIDth:HIGHLimit
491
SEARCH:SEARCH<x>:TRIGger:A:WIDth:LOWLimit
491
SEARCH:SEARCH<x>:TRIGger:A:WIDth:POLarity:CH<x>
492
SEARCH:SEARCH<x>:TRIGger:A:WIDth:POLarity:MATH<x>
492
SEARCH:SEARCH<x>:TRIGger:A:WIDth:POLarity:REF<x>
493
SEARCH:SEARCH<x>:TRIGger:A:WIDth:WHEn
493
SEARCH:SEARCH<x>:TRIGger:A:WINdow:EVENT
494
SEARCH:SEARCH<x>:TRIGger:A:WINdow:THReshold:HIGH:CH<x>
495
SEARCH:SEARCH<x>:TRIGger:A:WINdow:THReshold:HIGH:MATH<x>
495
SEARCH:SEARCH<x>:TRIGger:A:WINdow:THReshold:HIGH:REF<x>
496
SEARCH:SEARCH<x>:TRIGger:A:WINdow:THReshold:LOW:CH<x>
496
SEARCH:SEARCH<x>:TRIGger:A:WINdow:THReshold:LOW:MATH<x>
497
SEARCH:SEARCH<x>:TRIGger:A:WINdow:THReshold:LOW:REF<x>
497
SEARCH:SEARCH<x>:TRIGger:A:WINdow:WIDth
498
SEARCH:STOP
498
SELect? (Query Only)
499
SELect:CH<x>
499
SELect:CONTROl <wfm>
500
SELect:<wfm>
500
SET? (Query Only)
501
SETUp:NAMe
502
*SRE
503
*STB? (Query Only)
503
TEKLink:CONNection? (Query Only)
504
TEKLink:REFClk
504
TEKSecure (No Query Form)
505
TEST
505
TEST:RESults? (Query Only)
506
TEST:RESults:VERBose? (Query Only)
506
TEST:STOP (No Query Form)
507
TIME
507
*TRG (No Query Form)
508
TRIGger
508
TRIGger:{A|B}:EDGE? (Query Only)
509
TRIGger:{A|B}:EDGE:COUPling
510
TRIGger:{A|B}:EDGE:COUPling:CH<x>
511
TRIGger:{A|B}:EDGE:SLOpe
511
TRIGger:{A|B}:EDGE:SLOpe:AUX
512
TRIGger:{A|B}:EDGE:SLOpe:CH<x>
512
TRIGger:{A|B}:EDGE:SOUrce
513
TRIGger:{A|B}:LEVel
514
TRIGger:{A|B}:LEVel:CH<x>
514
TRIGger:{A|B}:LOGIc:CLAss
515
TRIGger:{A|B}:LOGIc:FUNCtion
515
TRIGger:{A|B}:LOGIc:INPut? (Query Only)
516
TRIGger:{A|B}:LOGIc:INPut:CH<x>
517
TRIGger:{A|B}:LOGIc:PATtern? (Query Only)
517
TRIGger:{A|B}:LOGIc:PATtern:INPut:CH<x>
518
TRIGger:{A|B}:LOGIc:PATtern:WHEn
519
TRIGger:{A|B}:LOGIc:PATtern:WHEn:LESSLimit
519
TRIGger:{A|B}:LOGIc:PATtern:WHEn:MORELimit
520
TRIGger:{A|B}:LOGIc:SETHold? (Query Only)
521
TRIGger:{A|B}:LOGIc:SETHold:CLOCk? (Query Only)
521
TRIGger:{A|B}:LOGIc:SETHold:CLOCk:EDGE
522
TRIGger:{A|B}:LOGIc:SETHold:CLOCk:SOUrce
522
TRIGger:{A|B}:LOGIc:SETHold:CLOCk:THReshold
523
TRIGger:{A|B}:LOGIc:SETHold:CLOCk:THReshold:CH<x>
524
TRIGger:{A|B}:LOGIc:SETHold:DATa? (Query Only)
524
TRIGger:{A|B}:LOGIc:SETHold:DATa:SOUrce
525
TRIGger:{A|B}:LOGIc:SETHold:DATa:THReshold
525
TRIGger:{A|B}:LOGIc:SETHold:DATa:THReshold:CH<x>
526
TRIGger:{A|B}:LOGIc:SETHold:HOLDTime
527
TRIGger:{A|B}:LOGIc:SETHold:QUAlify
527
TRIGger:{A|B}:LOGIc:SETHold:SETTime
528
TRIGger:{A|B}:LOGIc:STATE? (Query Only)
528
TRIGger:{A|B}:LOGIc:STATE:INPut:CH<x>
529
TRIGger:{A|B}:LOGIc:STATE:WHEn
530
TRIGger:{A|B}:LOGIc:THReshold? (Query Only)
530
TRIGger:{A|B}:LOGIc:THReshold:CH<x>
531
TRIGger:{A|B}:LOWerthreshold:CH<x>
531
TRIGger:{A|B}:PULse? (Query Only)
532
TRIGger:{A|B}:PULse:CLAss
533
TRIGger:{A|B}:PULse:GLItch? (Query Only)
534
TRIGger:{A|B}:PULse:GLItch:POLarity
534
TRIGger:{A|B}:PULse:GLItch:POLarity:CH<x>
535
TRIGger:{A|B}:PULse:GLItch:QUAlify
536
TRIGger:{A|B}:PULse:GLItch:TRIGIF
536
TRIGger:{A|B}:PULse:GLItch:WIDth
537
TRIGger:{A|B}:PULse:RUNT? (Query Only)
538
TRIGger:{A|B}:PULse:RUNT:POLarity
538
TRIGger:{A|B}:PULse:RUNT:POLarity:CH<x>
539
TRIGger:{A|B}:PULse:RUNT:QUAlify
540
TRIGger:{A|B}:PULse:RUNT:THReshold? (Query Only)
540
TRIGger:{A|B}:PULse:RUNT:THReshold:BOTh (No Query Form)
541
TRIGger:{A|B}:PULse:RUNT:THReshold:HIGH
541
TRIGger:{A|B}:PULse:RUNT:THReshold:LOW
542
TRIGger:{A|B}:PULse:RUNT:WHEn
542
TRIGger:{A|B}:PULse:RUNT:WIDth
543
TRIGger:{A|B}:PULse:SOUrce
543
TRIGger:{A|B}:PULse:TIMEOut? (Query Only)
544
TRIGger:{A|B}:PULse:TIMEOut:POLarity
545
TRIGger:{A|B}:PULse:TIMEOut:POLarity:CH<x>
545
TRIGger:{A|B}:PULse:TIMEOut:QUAlify
546
TRIGger:{A|B}:PULse:TIMEOut:TIMe
547
TRIGger:{A|B}:PULse:TRANsition? (Query Only)
547
TRIGger:{A|B}:PULse:TRANsition:DELTATime
548
TRIGger:{A|B}:PULse:TRANsition:POLarity
548
TRIGger:{A|B}:PULse:TRANsition:POLarity:CH<x>
549
TRIGger:{A|B}:PULse:TRANsition:QUAlify
550
TRIGger:{A|B}:PULse:TRANsition:THReshold? (Query Only)
550
TRIGger:{A|B}:PULse:TRANsition:THReshold:BOTh (No Query Form)
551
TRIGger:{A|B}:PULse:TRANsition:THReshold:HIGH
551
TRIGger:{A|B}:PULse:TRANsition:THReshold:LOW
552
TRIGger:{A|B}:PULse:TRANsition:WHEn
552
TRIGger:{A|B}:PULse:WIDth? (Query Only)
553
TRIGger:{A|B}:PULse:WIDth:HIGHLimit
554
TRIGger:{A|B}:PULse:WIDth:LOWLimit
554
TRIGger:{A|B}:PULse:WIDth:POLarity
555
TRIGger:{A|B}:PULse:WIDth:POLarity:CH<x>
555
TRIGger:{A|B}:PULse:WIDth:QUAlify
556
TRIGger:{A|B}:PULse:WIDth:WHEn
557
TRIGger:{A|B}:PULse:WINdow? (Query Only)
557
TRIGger:{A|B}:PULse:WINdow:EVENT
558
TRIGger:{A|B}:PULse:WINdow:QUAlify
559
TRIGger:{A|B}:PULse:WINdow:THReshold? (Query Only)
559
TRIGger:{A|B}:PULse:WINdow:THReshold:BOTh (No Query Form)
560
TRIGger:{A|B}:PULse:WINdow:THReshold:HIGH
560
TRIGger:{A|B}:PULse:WINdow:THReshold:LOW
561
TRIGger:{A|B}:PULse:WINdow:WIDTH
561
TRIGger:{A|B}:UPPerthreshold:CH<x>
562
TRIGger:A
562
TRIGger:A:CAN:CONDition
564
TRIGger:A:CAN:DATa:DIRection
564
TRIGger:A:CAN:DATa:LEVel
565
TRIGger:A:CAN:DATa:SOUrce
565
TRIGger:A:CAN:DATa:VALue
566
TRIGger:A:CAN:FORMat
566
TRIGger:A:CAN:FRAMEtype
566
TRIGger:A:CAN:IDENTifier:MODe
567
TRIGger:A:CAN:IDENTifier:VALue
567
TRIGger:A:CAN:PROBE
568
TRIGger:A:CAN:SPEed
568
TRIGger:A:COMMunication:{AMI|HDB3|B3ZS|B6ZS|B8ZS}:PULSEForm
569
TRIGger:A:COMMunication:{AMI|HDB3|B3ZS|B6ZS|B8ZS}:THReshold:HIGH
570
TRIGger:A:COMMunication:{AMI|HDB3|B3ZS|B6ZS|B8ZS}:THReshold:LOW
570
TRIGger:A:COMMunication:BITRate
571
TRIGger:A:COMMunication:CLOCk:POLarity
571
TRIGger:A:COMMunication:CMI:PULSEForm
572
TRIGger:A:COMMunication:CODe
572
TRIGger:A:COMMunication:SOUrce
573
TRIGger:A:COMMunication:SOUrce:TYPe
574
TRIGger:A:COMMunication:STANdard
575
TRIGger:A:HOLDoff? (Query Only)
577
TRIGger:A:HOLDoff:ACTUal? (Query Only)
578
TRIGger:A:HOLDoff:BY
578
TRIGger:A:HOLDoff:TIMe
579
TRIGger:A:I2C:ADDRess:MODe
579
TRIGger:A:I2C:ADDRess:RWINClude
580
TRIGger:A:I2C:ADDRess:TYPe
580
TRIGger:A:I2C:ADDRess:VALue
581
TRIGger:A:I2C:CLOCk:LEVel
581
TRIGger:A:I2C:CLOCk:SOUrce
582
TRIGger:A:I2C:CONDition
582
TRIGger:A:I2C:DATa:DIRection
583
TRIGger:A:I2C:DATa:LEVel
584
TRIGger:A:I2C:DATa:SOUrce
584
TRIGger:A:I2C:DATa:STARt
585
TRIGger:A:I2C:DATa:VALue
585
TRIGger:A:I2C:FORMat
585
TRIGger:A:LOGIc? (Query Only)
586
TRIGger:A:MODe
586
TRIGger:A:PULse:WINdow:POLarity
587
TRIGger:A:PULse:WINdow:POLarity:CH<x>
588
TRIGger:A:RS232:BAUd
588
TRIGger:A:RS232:DATa:LEVel
589
TRIGger:A:RS232:DATa:SOUrce
589
TRIGger:A:RS232:DATa:VALue
590
TRIGger:A:RS232:FORMat
590
TRIGger:A:RS232:PARity
591
TRIGger:A:SERIAL:BITRate
591
TRIGger:A:SERIAL:CLOCk:LEVel
592
TRIGger:A:SERIAL:CLOCk:POLarity
593
TRIGger:A:SERIAL:CLOCk:SOUrce
594
TRIGger:A:SERIAL:CODe
594
TRIGger:A:SERIAL:DATa:FORMat
595
TRIGger:A:SERIAL:DATa:PATtern
595
TRIGger:A:SERIAL:DATa:PATtern:NRZ
596
TRIGger:A:SERIAL:DATa:PATtern:S8B10B
597
TRIGger:A:SERIAL:LOCKLen
598
TRIGger:A:SERIAL:LOCKOffset
599
TRIGger:A:SERIAL:SOUrce
599
TRIGger:A:SERIAL:STANdard
600
TRIGger:A:SERIAL:TRIGgeron
601
TRIGger:A:SPI:CONDition
602
TRIGger:A:SPI:DATa:MISO:ACTIVE
602
TRIGger:A:SPI:DATa:MISO:LEVel
603
TRIGger:A:SPI:DATa:MISO:SOUrce
603
TRIGger:A:SPI:DATa:MISO:VALue
604
TRIGger:A:SPI:DATa:MOSI:ACTIVE
604
TRIGger:A:SPI:DATa:MOSI:LEVel
605
TRIGger:A:SPI:DATa:MOSI:SOUrce
605
TRIGger:A:SPI:DATa:MOSI:VALue
606
TRIGger:A:SPI:DATa:STARt
606
TRIGger:A:SPI:FORMat
607
TRIGger:A:SPI:SCLK:ACTIVE
607
TRIGger:A:SPI:SCLK:LEVel
608
TRIGger:A:SPI:SCLK:SOUrce
608
TRIGger:A:SPI:SS:ACTIVE
609
TRIGger:A:SPI:SS:LEVel
609
TRIGger:A:SPI:SS:SOUrce
610
TRIGger:A:TYPe
610
TRIGger:A:VIDeo? (Query Only)
611
TRIGger:A:VIDeo:CUSTom? (Query Only)
612
TRIGger:A:VIDeo:CUSTom:FORMat
612
TRIGger:A:VIDeo:CUSTom:LINEPeriod
613
TRIGger:A:VIDeo:CUSTom:SYNCInterval
613
TRIGger:A:VIDeo:FIELD
614
TRIGger:A:VIDeo:HOLdoff:FIELD
614
TRIGger:A:VIDeo:LINE
615
TRIGger:A:VIDeo:POLarity
616
TRIGger:A:VIDeo:SCAN
616
TRIGger:A:VIDeo:SOUrce
617
TRIGger:A:VIDeo:STANdard
618
TRIGger:AUXLevel
619
TRIGger:B (No Query Form)
620
TRIGger:B:BY
620
TRIGger:B:EVENTS? (Query Only)
621
TRIGger:B:EVENTS:COUNt
621
TRIGger:B:PULse:WINdow:POLarity
622
TRIGger:B:PULse:WINdow:POLarity:CH<x>
623
TRIGger:B:RESET:SOUrce
623
TRIGger:B:RESET:STATE
624
TRIGger:B:RESET:THReshold
624
TRIGger:B:RESET:TIMEOut
625
TRIGger:B:RESET:TRANsition
626
TRIGger:B:RESET:TYPe
626
TRIGger:B:STATE
627
TRIGger:B:TIMe
628
TRIGger:B:TYPe
628
TRIGger:ENHanced
629
TRIGger:LVLSrcpreference
629
TRIGger:MULTiscope
630
TRIGger:MULTiscope:ALIGN (No Query Form)
630
TRIGger:MULTiscope:ALIGN:COMPleted? (Query Only)
631
TRIGger:MULTiscope:ALIGN:SETSTATE
631
TRIGger:MULTiscope:ALIGN:DESKEW? (Query Only)
632
TRIGger:MULTiscope:ALIGN:MRTTime
632
TRIGger:MULTiscope:ALIGN:VALue? (Query Only)
632
TRIGger:MULTiscope:DELay? (Query Only)
633
TRIGger:MULTiscope:OPTion
633
TRIGger:MULTiscope:LOGic
634
TRIGger:MULTiscope:ROLe
634
TRIGger:SENSITivity
635
TRIGger:STATE? (Query Only)
635
*TST? (Query Only)
636
UNLock (No Query Form)
636
VERBose
637
*WAI (No Query Form)
638
WAVFrm? (Query Only)
638
WAVFRMStream? (Query Only)
639
WFMInpre? (Query Only)
640
WFMInpre:BIT_Nr
641
WFMInpre:BN_Fmt
641
WFMInpre:BYT_Nr
642
WFMInpre:BYT_Or
643
WFMInpre:ENCdg
643
WFMInpre:NR_FR
644
WFMInpre:NR_Pt
644
WFMInpre:PT_Fmt
645
WFMInpre:PT_Off
646
WFMInpre:WFId (No Query Form)
646
WFMInpre:XINcr
647
WFMInpre:XUNit
647
WFMInpre:XZEro
648
WFMInpre:YMUlt
648
WFMInpre:YOFf
649
WFMInpre:YUNit
649
WFMInpre:YZEro
650
WFMOutpre? (Query Only)
650
WFMOutpre:BIT_Nr
651
WFMOutpre:BN_Fmt
651
WFMOutpre:BYT_Nr
652
WFMOutpre:BYT_Or
653
WFMOutpre:ENCdg
653
WFMOutpre:NR_FR? (Query Only)
654
WFMOutpre:NR_Pt? (Query Only)
654
WFMOutpre:PT_Fmt? (Query Only)
655
WFMOutpre:PT_Off? (Query Only)
655
WFMOutpre:PT_ORder? (Query Only)
656
WFMOutpre:WFId? (Query Only)
656
WFMOutpre:XINcr? (Query Only)
657
WFMOutpre:XUNit? (Query Only)
658
WFMOutpre:XZEro? (Query Only)
658
WFMOutpre:YMUlt? (Query Only)
659
WFMOutpre:YOFf? (Query Only)
659
WFMOutpre:YUNit? (Query Only)
660
WFMOutpre:YZEro? (Query Only)
660
ZOOm
661
ZOOm:GRAticule:SIZE
661
ZOOm:HORizontal:POSition
662
ZOOm:HORizontal:SCAle
662
ZOOm:MATH<x>:HORizontal:POSition
663
ZOOm:MATH<x>:HORizontal:SCAle
663
ZOOm:MATH<x>:VERTical:POSition
664
ZOOm:MATH<x>:VERTical:SCAle
664
ZOOm:MODe
665
ZOOm:REF<x>:HORizontal:POSition
665
ZOOm:REF<x>:HORizontal:SCAle
666
ZOOm:REF<x>:VERTical:POSition
666
ZOOm:REF<x>:VERTical:SCAle
667
ZOOm:SCROLL:DIREction
667
ZOOm:SCROLL:LOCk
668
ZOOm:SCROLL:SPEED
668
ZOOm:STATE
669
ZOOm:VERTical:POSition
669
ZOOm:VERTical:SCAle
670
ZOOm:ZOOM<x>
670
ZOOm:ZOOM<x>:SCROLLLock
671
ZOOm:ZOOM<x>:STATE
671
ZOOm:ZOOM<x>:<wfm>:DISplay
672
ZOOm:ZOOM<x>:<wfm>:HORizontal:POSition
672
ZOOm:ZOOM<x>:<wfm>:HORizontal:SCAle
673
ZOOm:ZOOM<x>:<wfm>:HORizontal:TIMEPosition
673
ZOOm:ZOOM<x>:<wfm>:VERTical:POSition
674
ZOOm:ZOOM<x>:<wfm>:VERTical:SCAle
674
Status and Events
677
Registers
677
Queues
680
Event Handling Sequence
681
Synchronization Methods
682
Appendix A: Character Set
693
Appendix B: Reserved Words
695
Appendix C: Factory Default Setup Values
703
Default Setup
703
Appendix D: GPIB Interface Specifications
717
Interface Messages
717
GPIB Functions
718
Glossary
719
Other manuals for Tektronix DPO70000 Series
User Manual
213 pages
Quick Start User Manual
164 pages
Technical Reference
262 pages
Service Manual
167 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Tektronix DPO70000 Series and is the answer not in the manual?
Ask a question
Tektronix DPO70000 Series Specifications
General
Brand
Tektronix
Model
DPO70000 Series
Category
Test Equipment
Language
English
Related product manuals
Tektronix DPO7000 Series
213 pages
Tektronix DPO70000C Series
222 pages
Tektronix DPO70000SX Series
230 pages
Tektronix DPO70000C/DX Series
1002 pages
Tektronix DPO7054
213 pages
Tektronix DPO7054C
222 pages
Tektronix DPO70804C
222 pages
Tektronix DPO7354
213 pages
Tektronix DPO7254
213 pages
Tektronix DPO7354C
222 pages
Tektronix DPO75902S
920 pages
Tektronix DPO71254C
222 pages
Need help?
General
To Next Page
