Suzuki LS650 Savage User Manual

ENGI NE
Oeburr
, .
99

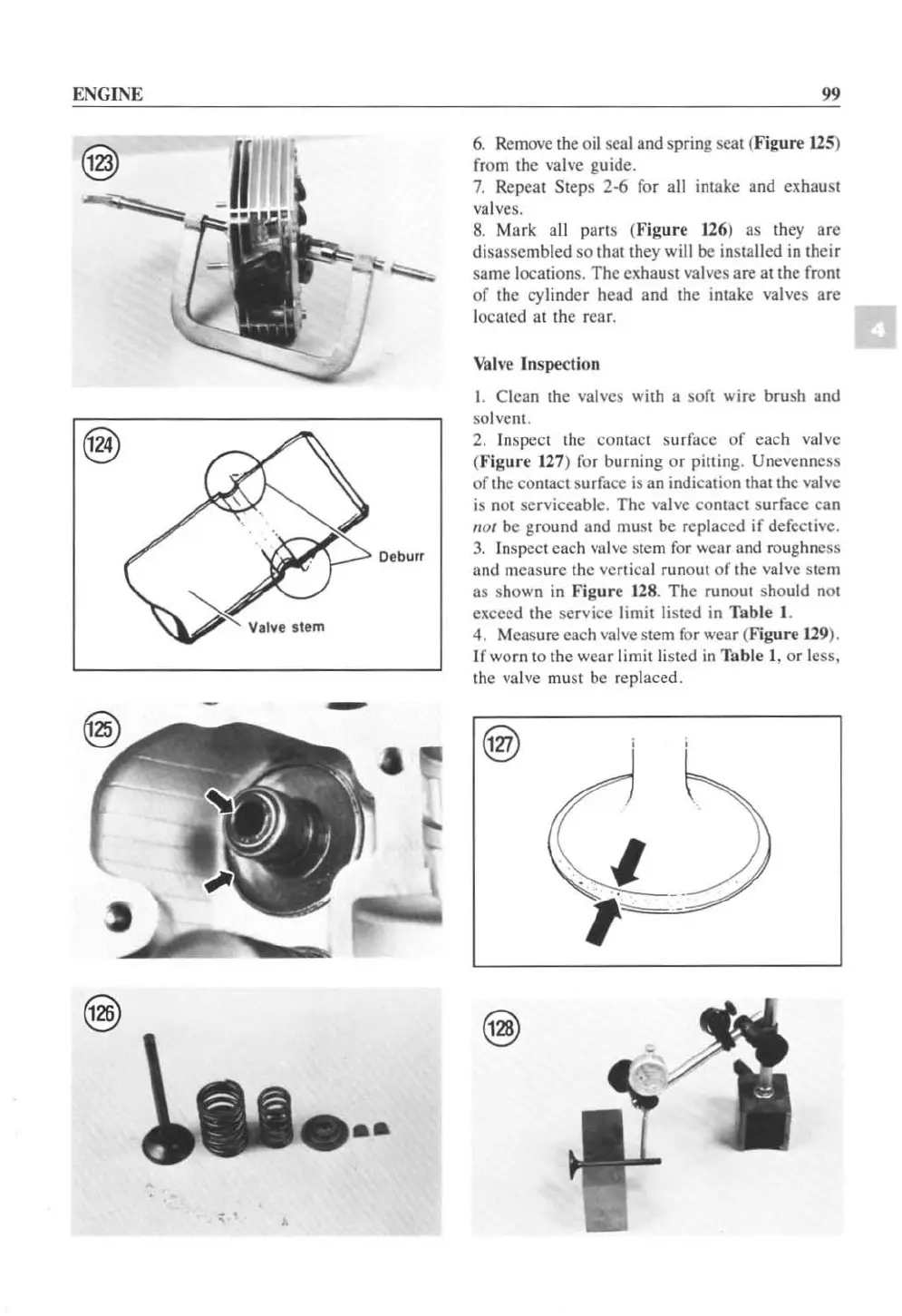

6. Remove the oil seal and spring seal (Fig ur e 125 )
from the valve guide.
7. Repeat Steps 2-6 for all intake and exhaust
valves.
8. Mark all pariS (Fig ur e 126) as they are
disassembled so thai they will be installed in their
same locations. The exhaust valves arc at the front
of the cylind er head and the intake valves are
iOClllcd at the rcar.
Va h'c In spection
J. Clean the valves with a soft wire brush and
solvent.
2. Inspect th e contact su rface of each va l ve
( Figure 127) fo r burning or pitting. Unevenness
oflhe contact su rf ace is an indication that the va l ve
is not serviceable. The valve contae! surface can
1101 be ground and must be replaced if defective.
3. In spect each va l ve stem for wear and roug hn ess
and measure the Yerlical runout of the va l ve stem
as shown
in .' igure 128 . The runout should not
exceed the service lim it listed in Table I.
4. Me asure eaeh valve stem for wear ( Hgure U9 ).
If worn to the wear limill iSled in Table 1, or less.
the valve must be replaced.
I
' ~ -- '

Suzuki LS650 Savage Specifications

General

Displacement	652 cc
Bore x Stroke	94.0 mm x 94.0 mm
Compression Ratio	8.5:1
Fuel System	Carburetor
Ignition	Electronic ignition (CDI)
Transmission	5-speed constant mesh
Final Drive	Belt
Front Brakes	Single disc
Rear Brakes	Drum
Front Tire	100/90-19
Rear Tire	140/80-15
Front Suspension	Telescopic
Rear Suspension	Swingarm type, coil spring, oil damped
Seat Height	700 mm (27.6 in)
Overall Length	2180 mm
Ground Clearance	140mm (5.5 inches)
Engine Type	4-stroke, air-cooled, SOHC
Wheelbase	1480 mm
